Copper-Aluminium Terminal a, B, C, D Type

Name: Copper-Aluminium Terminal a, B, C, D Type
Brand: all-electronics-online.com
SKU: 798766245
Availability: InStock
Rating: 4.7 (49 reviews)

Price:	US $ 0.6/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	A type
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	Ce
Brand:	GSM

Product Description

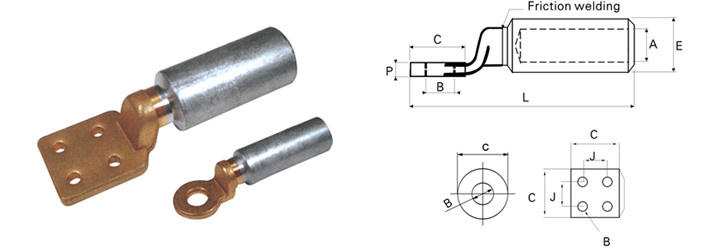

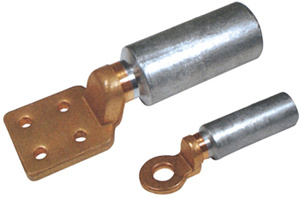

Al-Cu(A-Type)

End Aluminium-Copper lugs(friction welded)
Aluminium inside covered with neutral grease for a best electrical contact, closed by a protection cap.

Part No.	Section Area(mm²)	A(mm)	E(mm)	C(mm)	B(mm)	J(mm)	L(mm)	P(mm)
CAU 16	16	5.5	16	20	10.5	...	79	4.5
CAU 25	25	6.5	16	20	10.5	...	79	4.5
CAU 35	35	8	16	25	12.8	...	86	5
CAU 50	50	9	20	25	12.8	...	86	5
CAU 70	70	11	20	25	12.8	...	86	5
CAU 95	95	12.5	20	25	12.8	...	86	5
CAU 120	120	13.7	25	30	12.8	...	110	6
CAU 150	150	15.5	25	30	12.8	...	110	6
CAU 185	185	17	32	30	12.8	...	110	6
CAU 240	240	19.5	32	30	12.8	...	110	6
CAU 300	300	23.3	40	36	16.5	...	153	7
CAU 400	400	26	40	36	16.5	...	153	7
CAU 500	500	29.1	47	60×60	4ф9	30	200	10
CAU 630	630	32.5	47	60×60	4ф9	30	200	10
CAU 630S	630	33.5	47	60×60	4ф9	30	200	10
CAU 630-36	630	36	47	60×60	4ф9	30	200	10
CAU 800	800	37.5	60	80×80	4ф11	40	260	10
CAU 1000	1000	42	60	80×80	4ф11	40	260	10
CAU 1200	1200	45.5	65	80×80	4ф11	40	270	10

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
