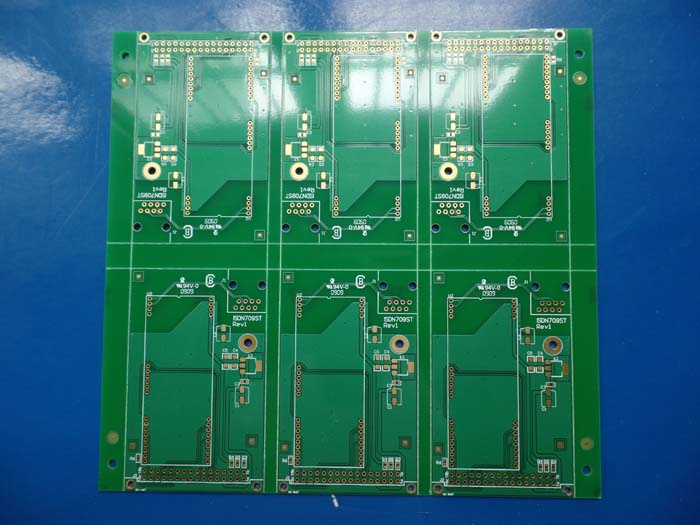

Copper Board 1.5 Oz Double Sided PCB with 1.6mm Thick
| Price: |
US $ 0.4/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
BIC12O2R1.3 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Mi Trace Space: |
7.8 Mil/7.4 Mil |
| Board Thick: |
1.6mm |
| Minimum / Maximum Holes: |
0.75/3.0mm |
| Copper Thick: |
1.5 Oz |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

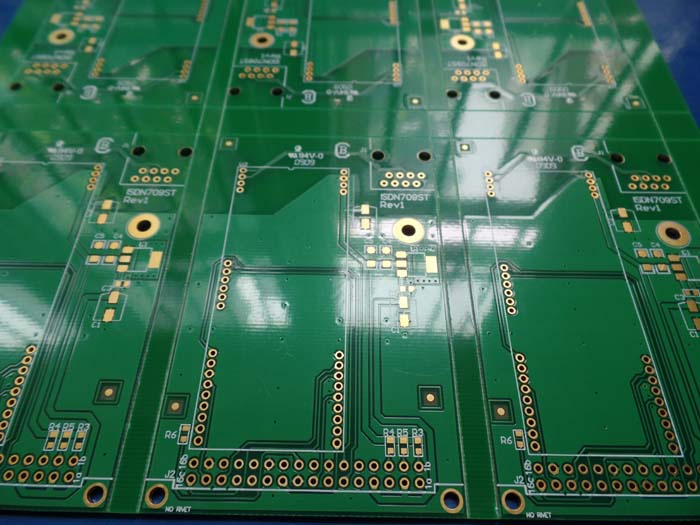

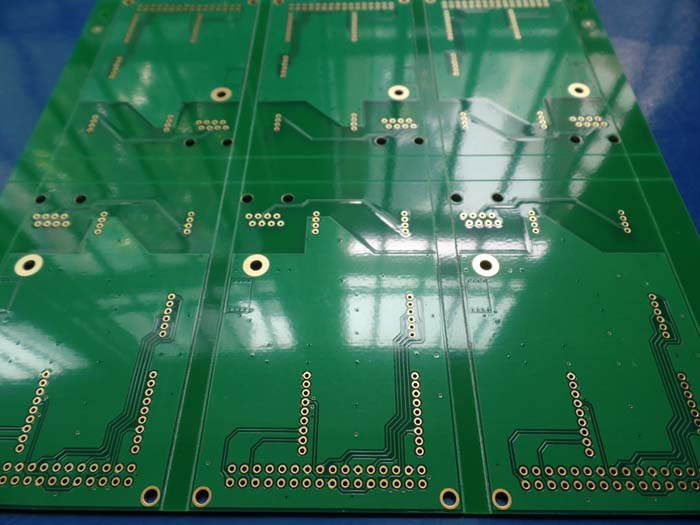

Double Sided Printed Circuit Board PCB FR-4 Tg170 1.6mm Thick Immersion Gold Green
PCB Applied for GPS Logger
Commodity Introduction
This is a type of FR-4 PCB for the application of GPS Logger. It's a 2 layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 191 x 182mm=6PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| FR-4 1.5mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7.8mil/7.4mil |
| Minimum / Maximum Holes: | 0.75/3.0mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 356 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (13.4%) 2micoinch over
100 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | GPS logger, Wireless Router
Hdmi
Navigation
Modem
Speaker |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
PCB Capability
1.More than 14 years of PCB experiences
2.Excellent after-sales service
3.Substrate material: Epoxy glass (FR-4), High frequency, Metal core
4.Price advantages on circuit boards
5.Multilayer PCB and Hybrid material of Multilayer PCB
6.Focus on prototypes, small batches and volume production
7.TS16949 (2009), ISO14001 (2004), ISO9001 (2008), UL certified
Printed Circuit Board Capability| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | FR-4(including High Tg 170, High CTI>600V);
Aluminum based; RO4350B, RO4003C;
94HB and FR-1 (upon request) |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm,
No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t<0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--420µm (1oz-12oz) |
| Inner Copper Thickness | 17µm--420µm (0.5oz - 12oz) |
| Drill Hole(Mechanical) | 0.0059" - 0.25" (0.15mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Imm Tin,Imm Ag,
OSP, Gold Finger |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
