Copper Board 1.5 Oz PCB 4 Layer with Immersion Gold
| Price: |
US $ 0.50/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1241R4.1 |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
White |
| Board Thick: |
1.6mm |
| Copper Thick: |
1.5 Oz |
| Solder Mask Color: |
Green |
| Minimum Trace and Space: |
4 Mil/5 Mil |
| Minimum/Maximum Holes: |
0.3mm/3.8mm |
| Via: |
Via Tented |
| Board Plating: |
0.0030" |
| Test: |
Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multilayer PCB 4 Layer Circuit Board at Advantage Price FR-4 Tg135 Immersion Gold
Applied In Multi Chip Modules

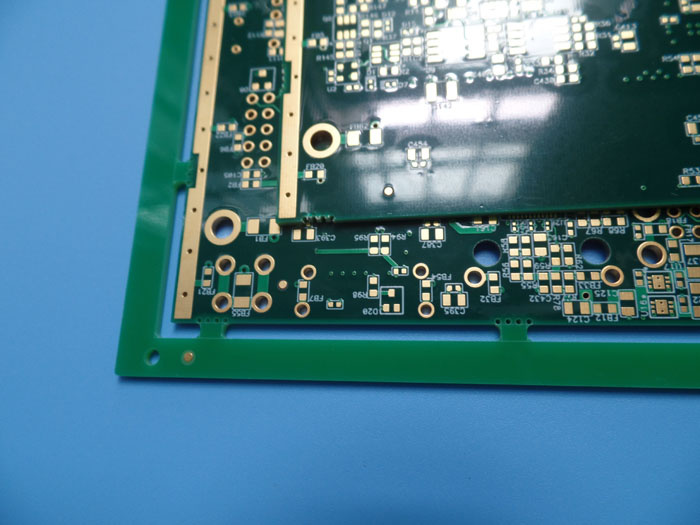

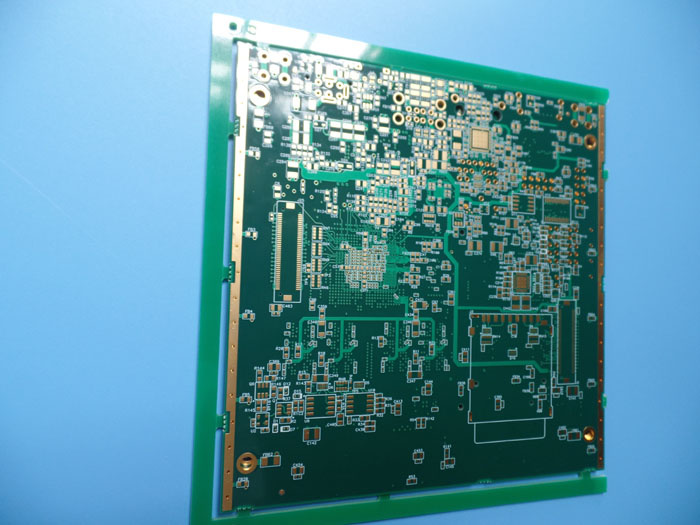

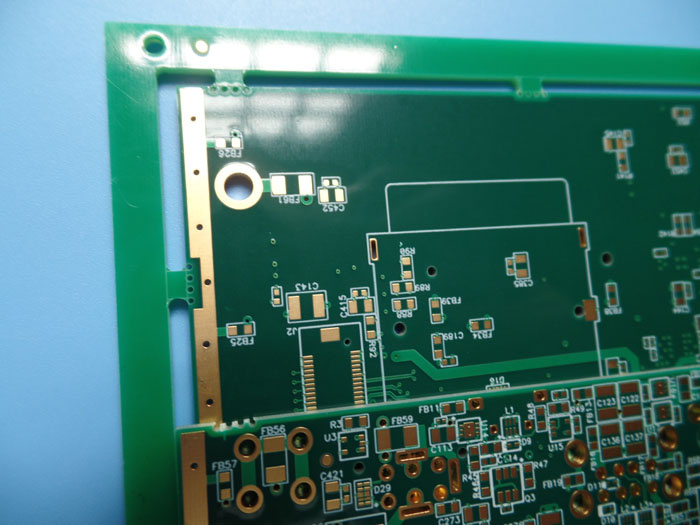

Commodity IntroductionThis is a type of FR-4 PCB for the application of Multi Chip Modules. It's a 4 layer board at
1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from NanYa and
Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 101 x 102mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| 1080 x 2 0.15mm |
| copper ------- 35um(1oz) |
| Core FR-4 1.0mm |
| copper ------- 35um(1oz) |
| 1080 x 2 0.15mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/5mil |
| Minimum / Maximum Holes: | 0.3mm/3.8mm |
| Number of Different Holes: | 8 |
| Number of Drill Holes: | 5015 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (16.3%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Testprior shipment |
| APPLICATION: | Multi Chip Modules, Step Down Transformer
Surveillance Equipment
Splitter Hdmi
Led Track Lighting
Power Led |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
