Copper Board 0.5 Oz 4 Layer PCB with 2.0mm Thick
| Price: |
US $ 0.40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1331R3.8 |
| Solder Mask Color: |
Green |
| Surface Finish: |
Immersion Gold |
| Board Material Supplier: |
Iteq |
| Mininum Trace (Mil): |
5.9 Mil |
| Minimum Gap(Mil): |
5.7 Mil |
| Warpage: |
0.23% |
| Function: |
100% Pass Electrical Test |
| Board Thick: |
2.0mm |
| Legend Color: |
White |
| Copper Thick: |
0.5 Oz |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

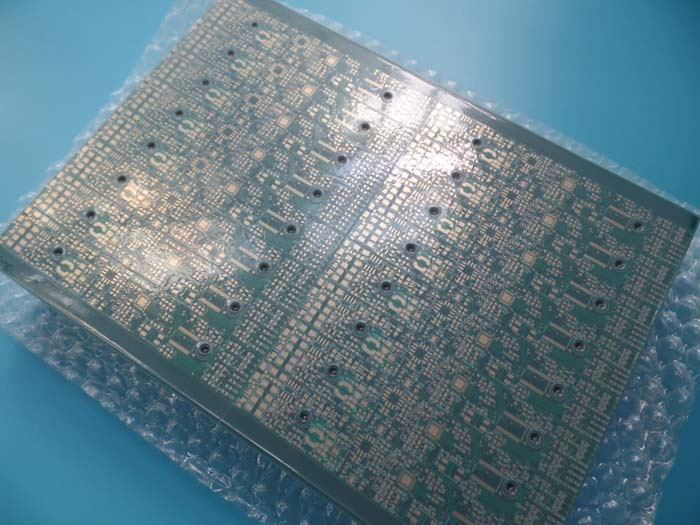

Copper board 0.5 oz 4 Layer PCB with 2.0mm thick immersion Gold and Green Soldermask
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 2.0mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separ
-ately
.
Parameter & Data Sheet | Number of Layers | 4 |
| Board Type | Multilayer PCB, 4 Layers |
| Board Thickness | 2.0mm +/-0.2 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 170ºC |
| |
| PTH Cu thickness | ≥20 um |
| Inner Iayer Cu thicknes | 17 um (0.5oz) |
| Surface Cu thickness | 17 um (0.5oz) + plating |
| |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 15um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 5.9 mil |
| Minimum Gap(mil) | 5.7 mil |
| |
| Surface Finish | Immersion gold, 0.05 micron gold
over 4.13 micron nickel |
| RoHS Required | Yes |
| Warpage | 0.23% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
PCB Classification --- Multilayer PCB
In order to increase the area that can be wired, multilayer board uses more single or double sided
wiring board.
PCB using a double side board as inner layer and two pieces of single layer as the outer layer
or two double-sided printed circuit board as the inner layer and two pieces of single layer as the
outer layer, through the insulation and bonding materials to press each layer together, and the
conductive pattern are as per design requirements for interconnection becomes the 4 layers
of printed circuit board, 6 layers of printed circuit board, also known as multilayer printed circuit
board.
The number of layers of the board does not represent a separate layer of wiring. In particular, the
air layer will be joined to control the thickness of the board. Usually the number of layers is even,
and contains the outermost 2 layers. Most of the host mainboard is 4 to 8 layers of structure, but
the theory can be technically nearly 100 layers of PCB boards. Large supercomputers use quite
a lot of layers of mainframe board, but because this kind of computer can be replaced with a lot
of ordinary computer clusters, super multilayer board has gradually not been used. Because all
of the layers in the PCB are closely combined, it is generally not easy to see the actual number,
but if you look carefully at the motherboard, you can also see it.
PCB can be also classified by its softness. There're rigid PCB, flexible PCB and Rigid-flex PCB.
Metal core PCB and high frequency PCB are classified by its material.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
