Copper Conductor 2.5mm 4mm 6mm PVC Insulation Electric Cable Wire

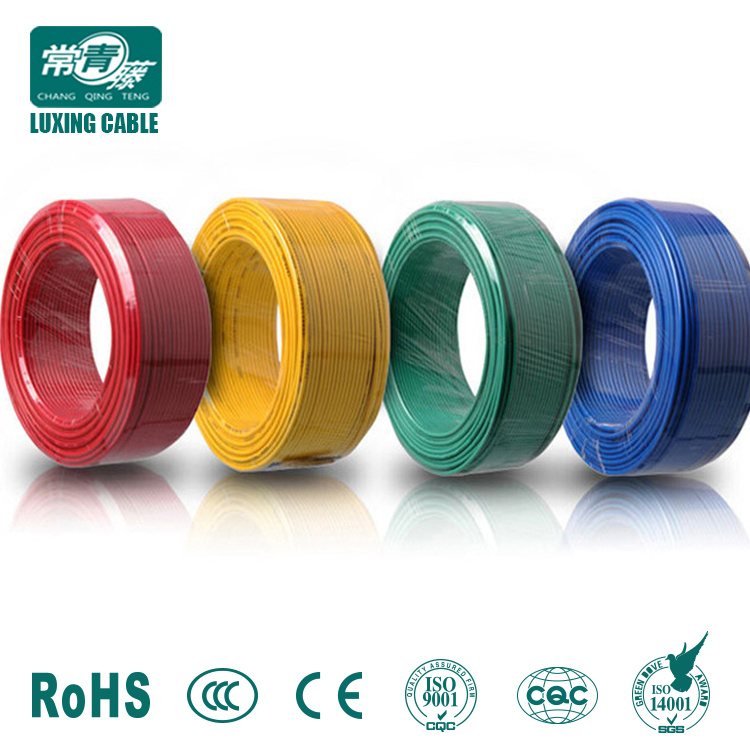

Name: Copper Conductor 2.5mm 4mm 6mm PVC Insulation Electric Cable Wire
Brand: all-electronics-online.com
SKU: 732633432
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	pvc insulation electric cable wire
Product Name:	PVC Insulation Electric Cable Wire
Rated Voltage:	300/500V 450/750V
Conductor:	Copper / Aluminum
Insulation:	PVC / XLPE
Certificates:	ISO CCC Ce RoHS
Origine:	Shandong China
Color:	Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ:	100 Meter
Packaging:	100 Meter Per Roll
Shipping:	by Sea, by Train, by Air
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	GB/T Standard
Conductor Type:	Solid / Stranded
Application:	Fixed Wire
Sheath Material:	Non
Range Of Application:	Lsoh / Flame -Retardant
Brand:	Chanong Qing Teng

Product Description

Iterm name : Copper conductor 2.5mm 4mm 6mm pvc insulation electric cable wire

1.Low voltage pvc insulated electric wire has been widely used in our country with the advantages of excellent electric properties,strong ability to resist short circuit,long service life ,easy to install,operate and maintain,etc

2.The product of PVC insulated wires belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places, It is widely used as connectors of drive,lighting ,electronic equipments ,Instrument and telecommunication equipments with rated voltage 450/750v or below , Part of plastic wires are used at the equipment with A.C rated votage 300/300v or below.

Nominal section.(mm2)	conductor No./Dia (mm)	Insulated thick (mm)	Max.overall Dia. (mm)	Conductor resistance at 20'C		Weight (kg/km)
Nominal section.(mm2)	conductor No./Dia (mm)	Insulated thick (mm)	Max.overall Dia. (mm)	copper	aluminum	copper	aluminum
1.5	1/1.38	0.7	3.3	12.1		19.2
2.5	1/1.78	0.8	3.9	7.41	11.8	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	1808.0	668.0

3. Specification Data of low voltage 450/750v pvc solid copper wire cable(Standard: GB/T 5023.3, IEC 60227-3)

4. Operating Characteristics of low voltage 450/750v pvc solid copper wire cable:

A. Working Temperature: 0^oC ~ 70^oC
B.Min. Bending Radius : 4D(O.D.less than 25mm), 6D (O.D.more than and including 25mm)

Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Why choose us?

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
