Copper Conductor 600/1000V XLPE Insulated Construction Power Cables

Name: Copper Conductor 600/1000V XLPE Insulated Construction Power Cables
Brand: all-electronics-online.com
SKU: 711071882
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	US $ 5-100/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV BL31
Application:	Power Station
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Voltage:	0.6/1kv
Brand:	Yifang

Product Description

Copper conductor 600/1000V XLPE Insulated Construction Power Cables

1 Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is
generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and
communication in complete replace of oil immersed paper insulated power cable and in partial replace of
PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting

2 Construction

Standards: BS6622, BS EN/IEC 60228,IEC60502.2

Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)

Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655

Sheath: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Color: Black

Conductor	:	Plain Annealed, Stranded Circular Non - Compacted or Circular Compacted or Shaped Copper
Fire Barrier	:	Mica Tape
Insulation	:	XLPE (For FR-200) or LSOH (For FR-300)
Sheath	:	LSOH
Insulation Colour	:	2C - Brown & Blue 3C - Brown, Black & Grey 4C - Brown, Black, Grey & Blue 2C+E - Brown, Blue + Green/Yellow 3C+E - Brown, Black, Grey + Green/Yellow 4C+E - Brown, Black, Grey, Blue + Green/Yellow 5C & above - White Cores Printed With Number
Sheath Colour	:	As Request

3. Technical Data for Fire Resistant Cables Copper Conductor XLPE Insulated

Applicable Standard	:	IEC 60502-1
Rated Voltage	:	600/1000V
Testing Voltage	:	3.5KV / 5 min
Operating Temperature	:	Max 90º C

4. Model Explanation for Fire Resistant Cables Copper Conductor XLPE Insulated

Cable Model		Descriptions for Power Cable	Applications for (Fire Resistant Electric Power Cable)
Cu Core	Al Core	Descriptions for Power Cable	Applications for (Fire Resistant Electric Power Cable)
YJL YJVR(YJRV)	YJLV	XLPE insulated and PVC sheathed (flame-retardant) power cable	This type of electric power cable can be laid indoors and outdoors, such as tunnel, cable duct, loose soil, etc. It can not bear external mechanical force, but a certain tensile force can be applied during laying. In addition, the single core type is not allowed to be installed in magnetic pipes.
YJV22	YJLV22	XLPE insulated, steel tape armored and PVC sheathed (flame-retardant) power cable	This type of electric power cable can be placed outdoors, and burying in the ground is also suitable. Meanwhile, external mechanical force is applicable, but big tensile force is forbidden.
YJV32	YJLV32	XLPE insulated, thin steel wire armored and PVC sheathed (flame-retardant) power cable	This type of electric power cable is used in water, vertical well or places with high drop height, and it can bear external mechanical force and fairly large tensile force.
YJV42	YJLV42	XLPE insulated, thick steel wire armored and PVC sheathed (flame-retardant) power cable	This type of power cable can be laid in vertical well, sea floor or places with high drop height. Pretty big positive pressure and tensile force are both applicable.

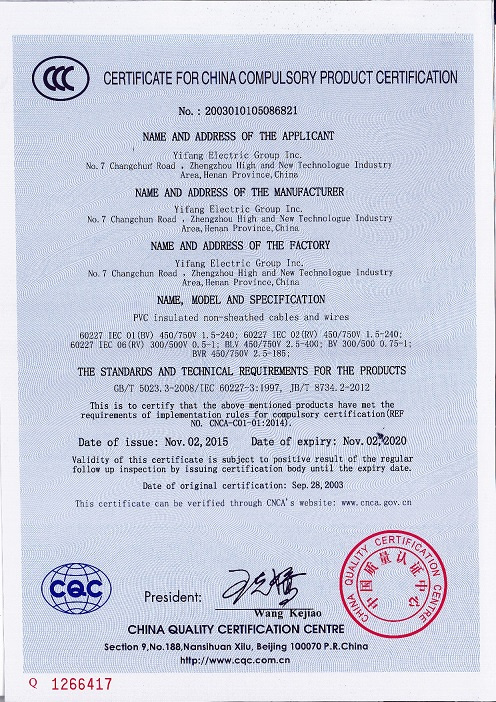

Certificates:

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
