| Prod Model: |
YJV32 |
| Applied Voltage: |
1kv and Below |
| Conductor Type: |
Solid or Stranded |
| No. Of Cores: |
1, 2, 3, 4, 5, 3+1, 3+2, 4+1 |
| Armor: |
Steel Wire |
| Additional Features: |
Flame Retardant, Fire Resistance, LSZH |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
ISO |
| Model: |
Yjv32 |
| Brand: |
Jinshui |
Product Description
StandardIEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)
ApplicationThis copper conductor low voltage power cable is used in underground power transmission lines of rated voltage 1KV and below. Steel wire armor allows the cable to bear considerable vertical pressures.
Product Details1) Conductor: Solid or stranded copper
2) Sectional area: 2.5~400 mm2
3) Insulation: XLPE
4) No. of cores: 4
5) Inner sheath (optional): PVC
6) Armor (optional): Steel wire or steel tape
7) Outer sheath: PVC
8) Max. working temperature: 90ºC
9) Cable size (4 core with steel wire armor)
Sectional Area
(mm2) | Insulation Thick.
(mm) | Steel Wire Dia.
(mm) | Overall Dia.
(mm) | Approx. Weight
(kg/km) | Max. DC Resist.
@ 20ºC
(Ω/km) |
| 2.5 | 0.7 | 1.6 | 18.0 | 663 | 7.41 |
| 4 | 0.7 | 1.6 | 19.1 | 770 | 4.61 |
| 6 | 0.7 | 1.6 | 20.5 | 916 | 3.08 |
| 10 | 0.7 | 1.6 | 22.3 | 1148 | 1.83 |
| 16 | 0.7 | 1.6 | 24.5 | 1472 | 1.15 |
| 25 | 0.9 | 1.6 | 27.5 | 1942 | 0.727 |
| 35 | 0.9 | 1.6 | 29.5 | 2386 | 0.524 |
| 50 | 1.0 | 2.0 | 32.9 | 3206 | 0.387 |
| 70 | 1.1 | 2.0 | 36.7 | 4197 | 0.268 |
| 95 | 1.1 | 2.0 | 40.5 | 5362 | 0.193 |
| 120 | 1.2 | 2.5 | 45.3 | 6908 | 0.153 |
| 150 | 1.4 | 2.5 | 50.0 | 8327 | 0.124 |
| 185 | 1.6 | 2.5 | 54.2 | 10044 | 0.0991 |
| 240 | 1.7 | 2.5 | 60.4 | 12672 | 0.0754 |
| 300 | 1.8 | 2.5 | 65.7 | 15302 | 0.0601 |
| 400 | 2.0 | 3.15 | 74.2 | 19969 | 0.0470 |

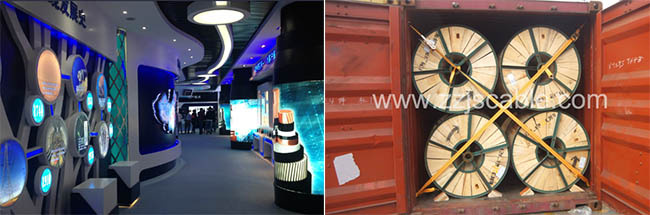

Packaging details |  |

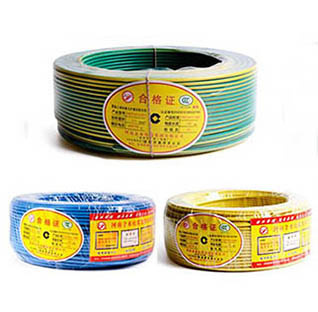

Polyethylene film packaging
1) Usually used for cables with an overall diameter 10mm and below
2) 100 meters per roll or as per customer's requirements
3) Packaging dimension: 50cm * 50cm * 20cm or below

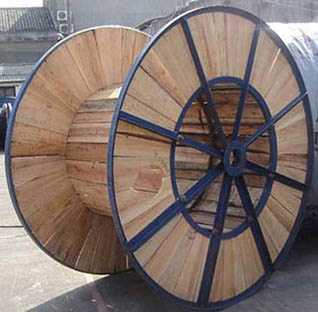

4) Weight: 30 kg/roll or below | Steel-wood drum packaging
1) Used for cables with a overall diameter of 10mm and above
2) Drum size: 180cm * 180cm *110cm (different sizes are available according to packaging length)
3) Standard length: as per customer's requirements. |

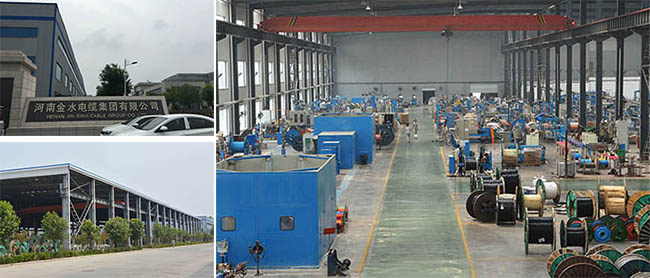

Factory
Customer service
1) Select the right cable as per customer's requirements
2) Design suitable packaging to guarantee safe and the most economic delivery
3) Provide installation and use guidance
4) Product quality guarantee under the normal use
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
