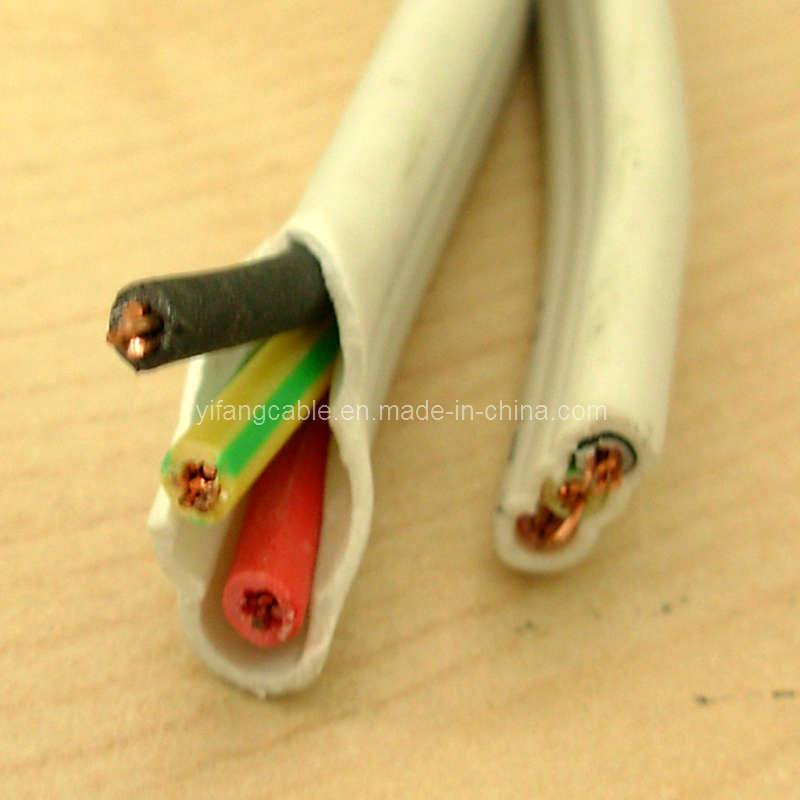

Name: Copper Conductor PVC Insulated Buliding Wire 2.5mm2
Brand: all-electronics-online.com
SKU: 622032932
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	US $ 0.32/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	2.5mm2 BV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red, Black or Your Requirment
Type:	Insulated
Certification:	CCC
Insulation Material:	PVC
Application:	Buliding
Brand:	Yifang
Conductor Material:	Copper or Aluminum,
Conductor Type:	Stranded or Solid
Material Shape:	Round or Flat

Product Description

Electrical wire are covering series of wire products, its working voltage is up to 450/750V (uo/u), its working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.

According to the conductor type, including solid conductor PVC insulated electrical wire, stranded PVC insulated wire, flexible PVC insulated wire with different colors.

According to its shape, including flat wire, round wires, etc. With different colors.

According to its core number, including single core wires, multi-core wires, etc. With different colors.

Product standard: Iec, bs, VDE, ASTM, etc.

The cross section can be from 0.5 sq mm to 70 sq mm
We can also supply the OEM and customized products as your request

	mm

mm2
1.5	1	1.38	1.38	0.7	0.53	2.78-2.98
1.5	7	0.52	1.56	0.7	0.53	2.96-3.16
2.5	1	1.78	1.78	0.8	0.62	3.38-3.58
2.5	7	0.67	2.01	0.8	0.62	3.61-3.81
4	1	2.25	2.25	0.8	0.62	3.85-4.05
4	7	0.84	2.52	0.8	0.62	4.12-4.32
6	1	2.76	2.76	0.8	0.62	4.36-4.56
6	7	1.04	3.12	0.8	0.62	4.72-4.92
10	1	3.57	3.57	1.0	0.8	5.57-5.77
10	7	1.35	4.05	1.0	0.8	6.05-6.25

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
