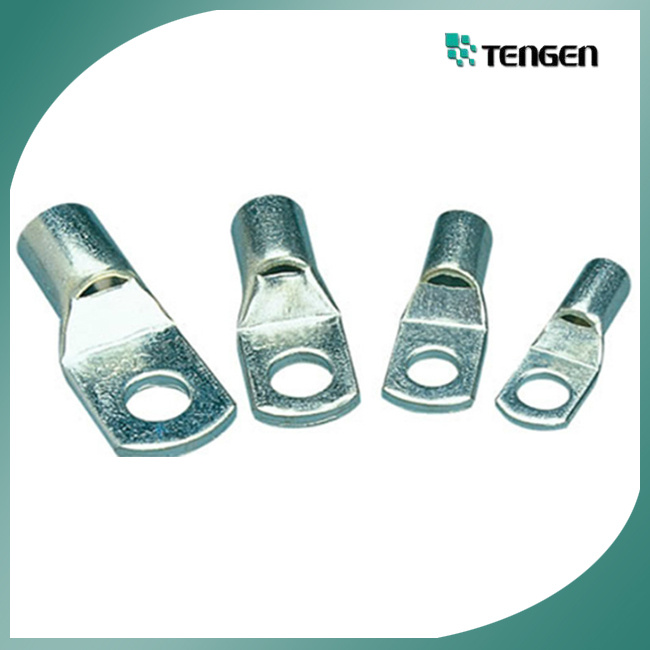

Copper Connection Terminal of Peep Mouth (DTGA type)

Prod Model:	TGS-8
Material:	Copper
Brand:	Tengen/OEM

Product Description

TEMNO	BOLT dia. d2Φ(mm)	Dimension (mm)				Section of lead(mm²)
		dΦ	DΦ	L1	L
SC 1.5 - 5	5.2	1.8	3.7	5	16	1.5
SC 2.5 - 4	4.2	2.4	4.0	7	18	2.5
SC 2.5 - 5	5.2				20
SC 4 - 5	5.2	3.1	4.8	7	20	4
SC 4 - 6	6.5
SC 6 - 5	5.2	3.8	5.5	9	24	6
SC 6 - 6	6.5
SC 10 - 6	6.5	5	6.5	9	26	10
SC 10 - 8	8.4
SC 16 - 6	6.5	5.7	7.5	11	30	16
SC 16 - 8	8.4
SC 25 - 6	6.5	7.2	9	13	35	25
SC 25 - 8	8.4
SC 35 - 8	8.4	8.5	10.8	13.5	38	35
SC 35 - 10	10.5
SC 50 - 8	8.4	9.8	12.5	16	44	50
SC 50 - 10	10.5
SC 70 - 10	10.5	11.5	14.5	18	51	70
SC 70 - 12	13.0
SC 95 - 10	10.5	13.7	17	22	57	95
SC 95 - 12	13.0
SC 120 - 12	13	15	19	24	64	120
SC 120 - 16	17
SC 150 - 12	13	16.7	21	26	71	150
SC 150 - 16	17
SC 185 - 16	17	18.5	23	30	79	185
SC 240 - 16	21	21	26	38	93	240
SC 240 - 20	17
SC 300 - 16	17	24.5	30	42	103	300
SC 300 - 20	21
SC 400 - 16	17	27	34	42	113	400
SC 400 - 20	21
SC 500 - 16	17	30	38	48	123	500
SC 500 - 20	21
SC 630 - 20	21	35	45	56	135	630
SC 800 - BL	-	39	50	60	170	800
SC 1000 - BL	-	44	56	87	200	1000
