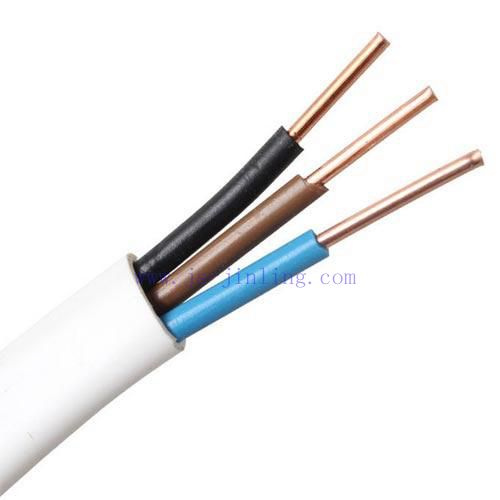

Copper Core BVVB PVC Flexible Insulatied Flat Cable Wire

Name: Copper Core BVVB PVC Flexible Insulatied Flat Cable Wire
Brand: all-electronics-online.com
SKU: 831640535
Availability: InStock
Rating: 4.8 (39 reviews)

Price:	US $ 0.5-5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BVVB
Referred Standard:	BS6004 IEC60227
Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Application:	Electrical Appliance
Range Of Application:	Electrical Appliance
Brand:	Jinling Cable

Product Description

Copper Core BVVB PVC Flexible Insulatied Flat Cable Wire STANDARD:
BS6004 IEC60227
Copper Core BVVB PVC Flexible Insulatied Flat Cable Wire APPLICATION:
The cable are used for Electrical Appliance.
Copper Core BVVB PVC Flexible Insulatied Flat Cable Wire Character:
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds): 160°C
Operating temperature: -5-60°C
Minimum bending radius:
Circular copper conductors(up to 25mm2): 4 x Overall Diameter
Circular copper conductors(above 25mm2): 6 x Overall Diameter
Copper Core BVVB PVC Flexible Insulatied Flat Cable Wire Structure:
Solid or Stranded Annealed Copper conductor PVC Insulated Wire.
Copper Core BVVB PVC Flexible Insulatied Flat Cable Wire Voltage:
300/500V
Parameter:

Nominal cross section of conductor mm²	Minimum number of single line in the stranded conductor	Rated value of insulator thickness mm	Rated value of sheath thickness mm	Upper value of average overall diameter mm	Minimum insulation resistance under temperature 70⁰C MΩ.km

2×0.75 2×1.0 2×1.5 2×2.5 2×4 2×4 2×6 2×6 2×10 3×0.75 3×1.0 3×1.5 3×2.5 3×4 3×4 3×6 3×6 3×10	1 1 1 1 1 7 1 7 7 1 1 1 1 1 7 1 7 7	0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.8 1.0 0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.8 1.0	0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.2 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.2	4.6×7.1 4.8×7.4 5.3×8.5 6.2×10.1 6.7×11.1 6.7×11.1 8.5×12.5 7.5×12.5 9.5×16.2 4.6×9.6 4.8×10.1 5.3×11.7 6.2×14.0 7.0×15.8 7.0×15.8 7.8×18.2 7.8×18.2 9.5×23.0	0.012 0.011 0.011 0.010 0.0085 0.008 0.0070 0.0065 0.0065 0.012 0.011 0.011 0.010 0.0085 0.008 0.0070 0.0065

Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.

The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.

Excellent quality, perfect management and first-class service is our permanent puisuit.
