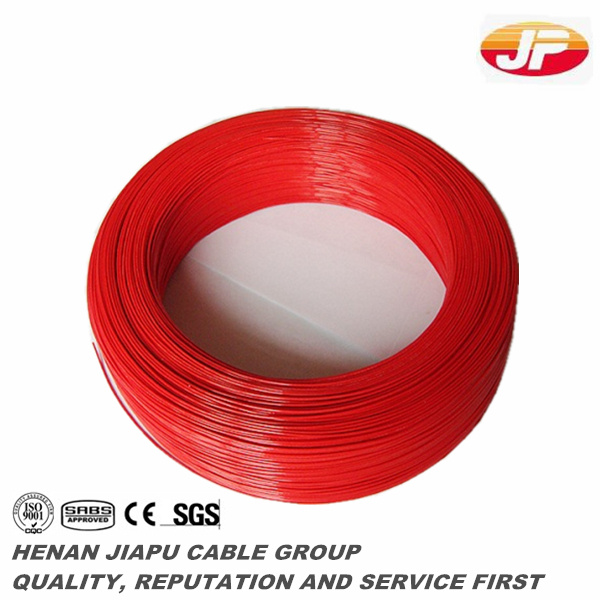

Copper Core PVC Insulated Building Electrical Wire

Name: Copper Core PVC Insulated Building Electrical Wire
Brand: all-electronics-online.com
SKU: 823469735
Availability: InStock
Rating: 4.7 (93 reviews)

Price:	US $ 1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV BVR BVVB RVV RVP RVVP
Standard:	ASTM, IEC, DIN, CSA, BS...
Voltage Rating:	Low or Medium Voltage
Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	SABS
Application:	Buiding
Brand:	Jiapu

Product Description

1, Technique Data

1.U0/U: 300/500V,450/750V
2.Standard: IEC 60227, BS 6004, VDE0281, GB/T 5023,JB/T8734
3.Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement
4.Conductor: Class 1/2 Plain annealed copper wires,solid or stranded
5.Insulation: PVC
6. Cross section area: 0.75~630mm2
7. Color: Red,brown,blue,black,green/yellow or others on request
8. Packing:100 meters per roll or as requirement
9.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB
10.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable

1.Range of Application

Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.

2.Service Conditions

Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.

3.Model and Name:see table1

Model	Name
RV	Copper Core PVC Insulation Flexible Wire
RVB	Copper Core PVC Insulation Flat Flexible Wire
RVS	Copper Core PVC Insulation Twisted Flexible Wire
RVV	Copper Core PVC Insulation Sheath Round Flexible Wire
RVVB	Copper Core PVC Insulation Sheath Flat Flexible Wire
RV-90	Copper Core Heat-resistak Losc PVC Flexible Wire

Packaging & Shipping

cable packing
1. packed in standard export drums or other ways per customer's requirement;
2. handled and shipped carefully to ensure perfect package unpon customer's receiving.
3. packed in circle, length 100m long.
4. packed in bundle length no less than 100m.
5. in wooden case plastic reel then on pallet
as per the agreement

Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
