| Prod Model: |
Copper02 |
| Name: |
BV Copper Conductor |
| Payment: |
L/C T/T |
| Trade Terms: |
Fob CFR |
| Port: |
Qingdao |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Dayuan |
Product Description

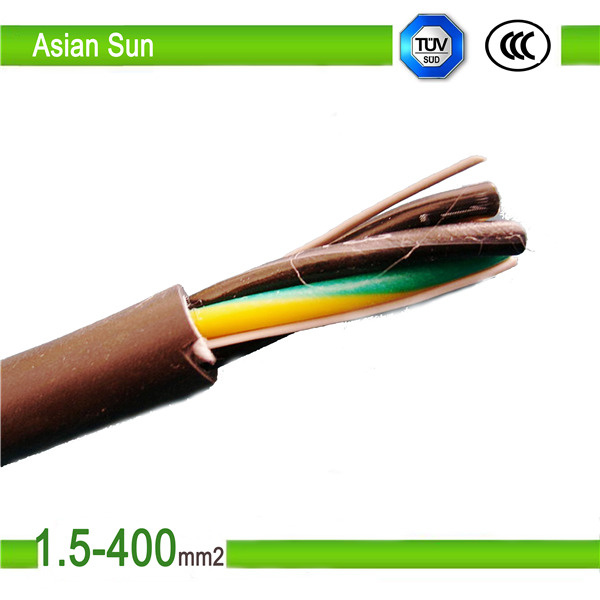

copper core pvc insulated flexible cable electrical wire
1. Specifications:
1.Rubber or PVC Welding Cable
2.10-190mm2
3.Copper or CCA Welding Cable
4.25 years OEM Welding cable
5.ISO,CE,ROHS,REACH
| Type | H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR |
| Voltage Rate | 300/500V, 450/750V |
| Application | These cables are used for general purpose, as building wire for power,
lighting and control wire to electrical appliances, suitable for use in conduit
and for fixed, protected installation |
| Standard | IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 |
| mm2 | 0.75 mm2 ~ 630 mm2 |
| Conductor | annealed copper wires, solid or stranded |
| Insulation | PVC |
| color | Black, red, yellow, green |
| Packing | 100 meter/roll with plastic drum/reel, wooden pallet/box, cartons and
customerized is acailable |
| Production Capacity | 100 kilometer/ day. we are manufacture with 20,000 square meters |
| Features | flame retardance, fire resistance |
2. Description:
1.Standard
the welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381
2.Specific Property for Using
(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsant DC peak value is 400V.
(2).The long-time permissible working temperature of cable is not more than 65.
3.Name and IEC Standard
(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.
4. Conductor Materials: Copper
5. Jacket: Rubber or PVC
6. Applications: For Welding Machines and so on
Q: Can I have a sample?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: How long is the lead time?
A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?
A: Our MOQ is 100-10000meters, depending on the products;
Sea Port: FOB Shenzhen.
Q: Do you provide OEM or ODM services?
A: Yes, we do.
Q: Do you offer guarantee for the products?
A: Yes, we offer five years guarantee for the products.
