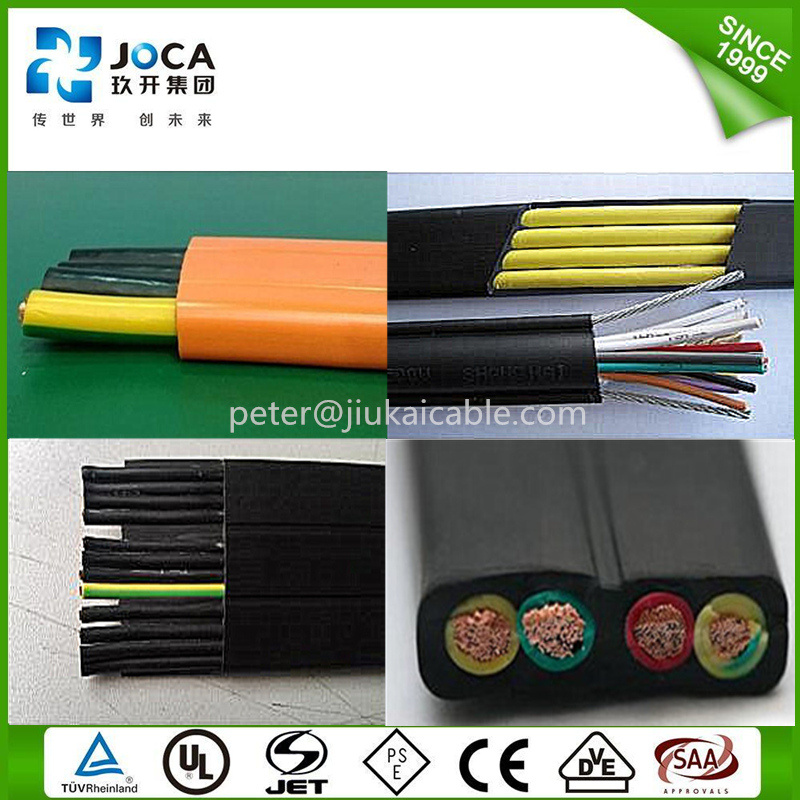

Copper Core PVC Insulation Flat Electrical Elevator Crane Hoist Cable
| Price: |
US $ 0.65-1.48/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
H07VVH6-F, YFFB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
300/500V; 450/750V |
| Anti-Bending Of Features: |
Excellently Flexible&Bendable |
| Conformity: |
RoHS and CCC Certificate |
| Conductor: |
Meet GB 3956 Class 5 Conductor Standard |
| Test Voltage: |
2500V |
| Fire-Resistant Standard: |
Comply with IEC60332-1 |
| Cable Flexibility: |
Flexible |
| Free Sample: |
Available |
| Jacket Color: |
Prior Black or as UR Request |
| Item Name: |
Flat Electrical Elevator Crane Hoist Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Industry/Power Transmission |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
TUV,PSE,SAA |
| Material Shape: |
Flat Cable |
| Range Of Application: |
RoHS,Flame Retardant,Cold-Resistant |
| Brand: |
Jiukai/OEM |
Product Description
Copper Core PVC Insulation Flat Electrical Elevator Crane Hoist CableApplications:As connecting and control cable for cranes and conveyors, it is suitable for the places of railway stations, crane and other related situations.
It is suitable a control and connection cable for cranes and conveyors on building sites, container goods railway station and dockyards where operating conditions rough.
Properties:Sheath: special polychloreprene (Butadiene-acrylonitrile rubber),it remains flexible at -15c ,flame resistance and self--extinguishing
Structure:1.Conductor: superfine copper strands acc. to VDE0295,class 5.2.Insulation: mixed PVC, resistant to oil, flame resistance and self-extinguishing
Color: acc. to 2271IEC(brown, blue, black, green/yellow)
5 cores or more with black number with white digital coding3.Sheath: Butadiene-acrylonitrile rubber; resistant to oil, flame retardant and self- extinguishing4.Color: black (RAL9005) or grey(RAL7001).5.Standard: acc. to VDE0482,part 265-2-1 resp.EN50265-2-1 and IEC603321-16.Technical data:7.Rated voltage: 300/500V
Test voltage:<=1.5mm 2500V >1.5mm:3000V8.Minimum bending radius:0.3m
9.Burning vertically test: GB/T1 8380.1--2001,IEC60332--1:1993 test
10.Passedstandard:GB5023.6 ,IEC60227--6,EN50214.
Used under the normal conditions, the temperature of conductors is lower than 70ºC
11.Temperature range:-15C to +40C
Remarks:
Cables are recommended for installations where the suspended length doesn't exceed 80 m: and the speed of travel does not exceed 4m/s.
If it is more than this ,with steel.

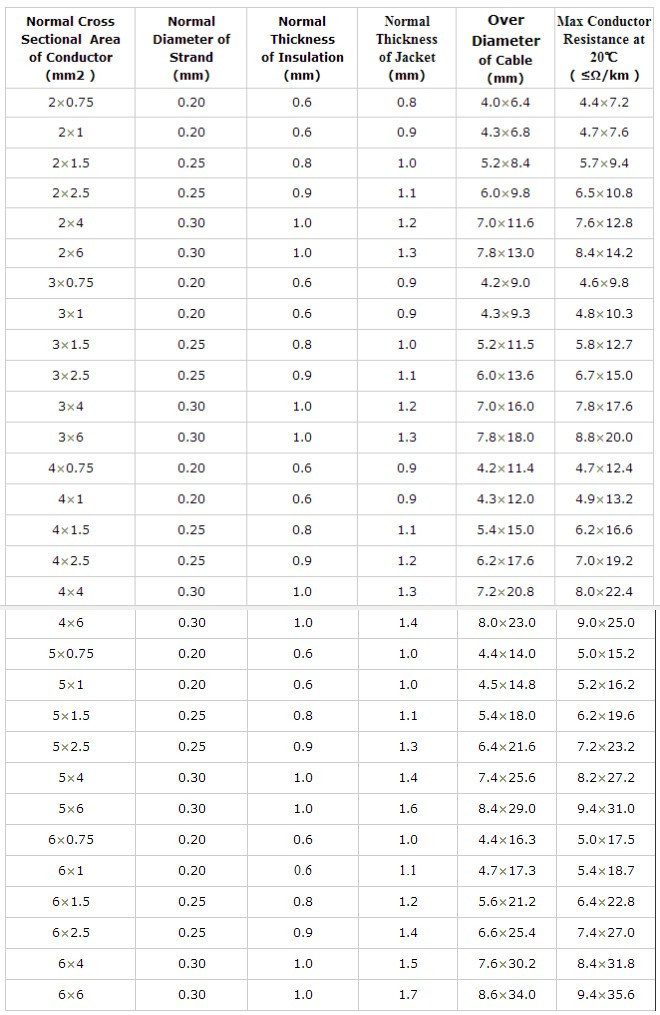

More Dimensions and Parameters for Flat Electrical Elevator Crane Hoist Cable
The Advantage of Flat Elevator Cable for Crane
1.High-speed moving performance
The maximum moving speed of super multi-core flat elevator cable with an enhanced core can be up to 990m/s, which is also widely used in high-speed elevator in ultra-high building.
2.Not easy to reverse when under operation
With the internal structure of conversely twisted wire core placed symmetrically and flat shape of the cable, the cable is not easy to twist and shake when under operation.
3.Long Service Life
After the cycle of three million times simulation bend life test, the cable has no abnormality like disconnection and so on.
4.Save the space
It is easier and more efficient to install the flat elevator cable, and it is more space-saving to install with its smaller bend radius.

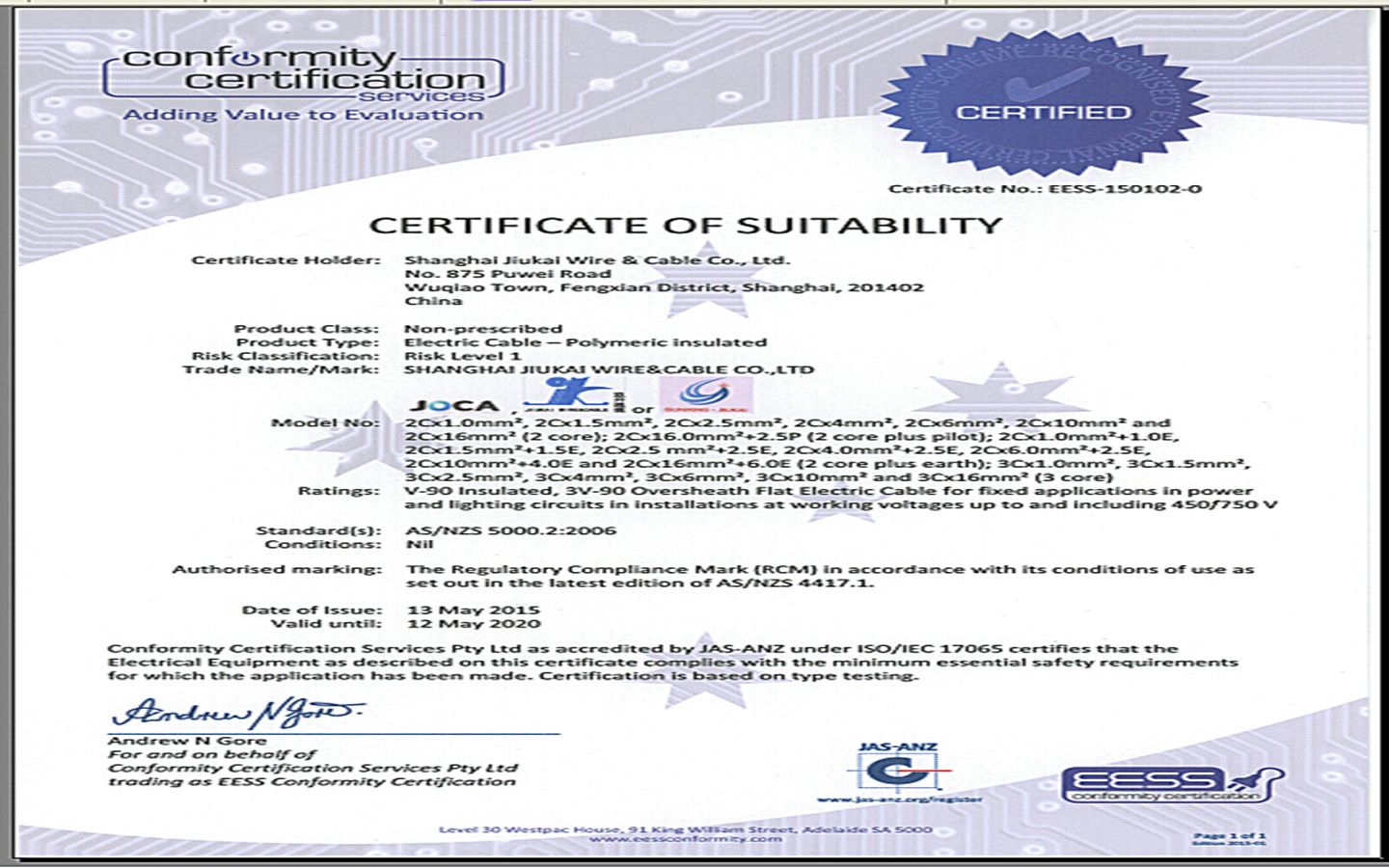

Approval of this Cable
