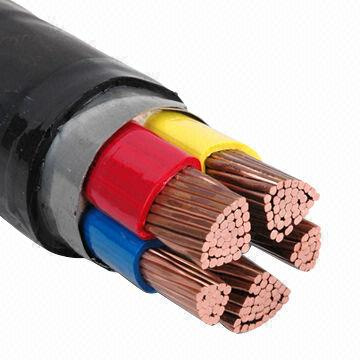

Copper Core XLPE Insulated Power Cable

Name: Copper Core XLPE Insulated Power Cable
Brand: all-electronics-online.com
SKU: 687354902
Availability: InStock
Rating: 4.9 (135 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	yf036
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	PVC Power Cable(Low Voltage)
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	DC Cable
Application:	Construction
Certification:	ISO

Product Description

PVC Power Cable(Low Voltage)

Applications: PVC-insulated power cable and fire-resistant cable are suitable for fixed laying in power transmission and distribution lines with AC 50Hz and voltage rating of up to or including 6kV

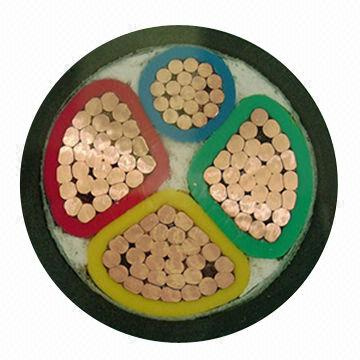

Construction:

Conductor: Copper, class1 or 2

Insulation: PVC

Filler: PP filler or PVC filled

Sheath: PVC, PE or HDPE

Performance characteristics:

Long-term permissible operation temperature of conductor shall not be higher than 70° C

Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 160° C

Cable is not limited by drop in level when being laid, and the environment temperature shall not be 0° C

Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents and flame retardant Lightweight, perfect bending properties, installed and maintained easily and conveniently
Voltage rating: 0.6/1kV, 3.6/6kV

Standards: IEC, BS, DIN, ASTM, CSA, NFC, AS and more

Other special characteristics: Designs and manufacturer according to customers' request

Type		Description	Main Application
Cu core	Al core	Description	Main Application
(ZR)YJV or (ZR)YJY	(ZR)YJLV or (ZR)YJLY23	(Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable.	For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid.
(ZR)YJV22 or (ZR)YJY23	(ZR)YJLV22 or (ZR)YJLV23	(Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable.	For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force.
(ZR)YJLV32 or (ZR)YJLV33	(ZR)YJLV32 or (ZR)YJLV33	(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable	For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force.
(ZR)YJLV42 or (ZR)YJLV43	(ZR)YJLV42 or (ZR)YJLV43	(Flame retardant) Cu, Al core XLPE insulated, thick steel wire armoured, PVC or PE sheathed power cable	For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force.

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
