Copper High Voltage/Low Voltage Power Cable

Name: Copper High Voltage/Low Voltage Power Cable
Brand: all-electronics-online.com
SKU: 836786295
Availability: InStock
Rating: 4.8 (29 reviews)

Price:	US $ 1-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coppercable23
OEM:	Customized Available
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	UL

Product Description

1. Application:

These cables are most suitable for direct burial or for installation on trays or ducts, Where
there is a risk of mechanical damage, armored cables should be used.For laying in ground
along route with large difference of level able to bear external mechanical forces.

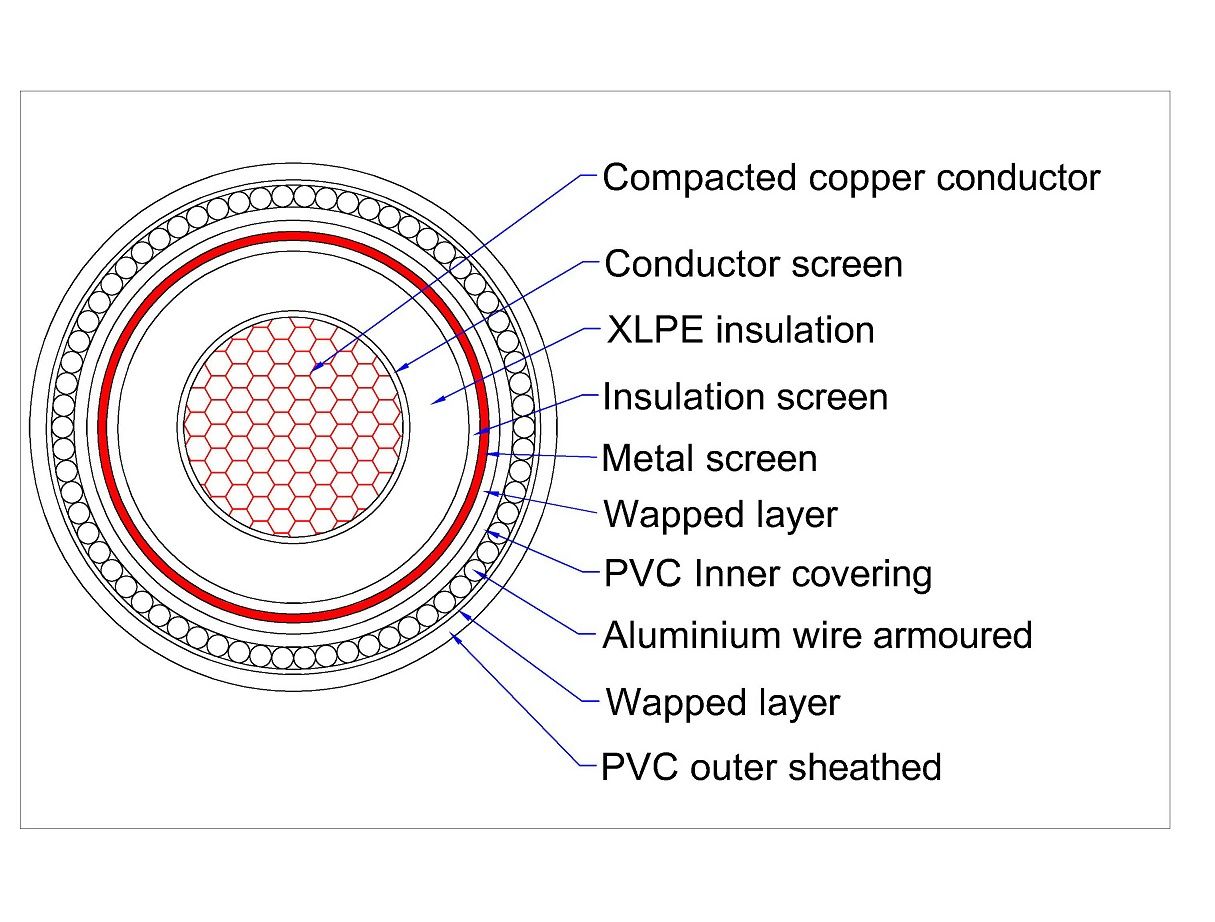

2. Construction:

Conductor: Solid or stranded copper or Aluminum

Insulation: Cross-linked polyethylene (XLPE)
Filler: Polypropylene filament with lapped binding tape

Inner sheath: Polyvinyl chloride (PVC) for armored cable.

Amour: Galvanized steel wire armored (SWA) or steel tape armored(STA) (for armored cable)

Sheath: Polyvinyl chloride (PVC) or PE, or HDPE

Size: Up to 800mm2 for single core, up to 500mm2 for 3 cores
Core: single or 3 Core

3. Characteristic

The maximum conductor operating temperature: 90°C

During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor
shall not be above 250°C

Environment temperature should be no lower than 0°C for laying the cable.

Voltage up to 36 KV

4. Standards:

IEC60502, BS, IEC60502-2, ASTM, BS, or others as per customer's country Standard

5. Drawing:

Table of the voltage, cores and cross-section

Item	Category A ,B	3.6/6kV	6/10kV	8.7/15kV	12/20kV	18/30kV	21/35kV
Item	Category A ,B	6/6kV	8.7/10kV	12/15kV	18/20kV	-	26/35kV
Single core	mm2	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
Three core	mm2	25-400	25-400	35-400	50-400	50-400	50-400
