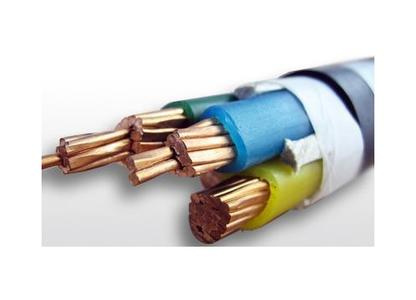

Low Voltage XLPE Insulation Power Cable and Wire

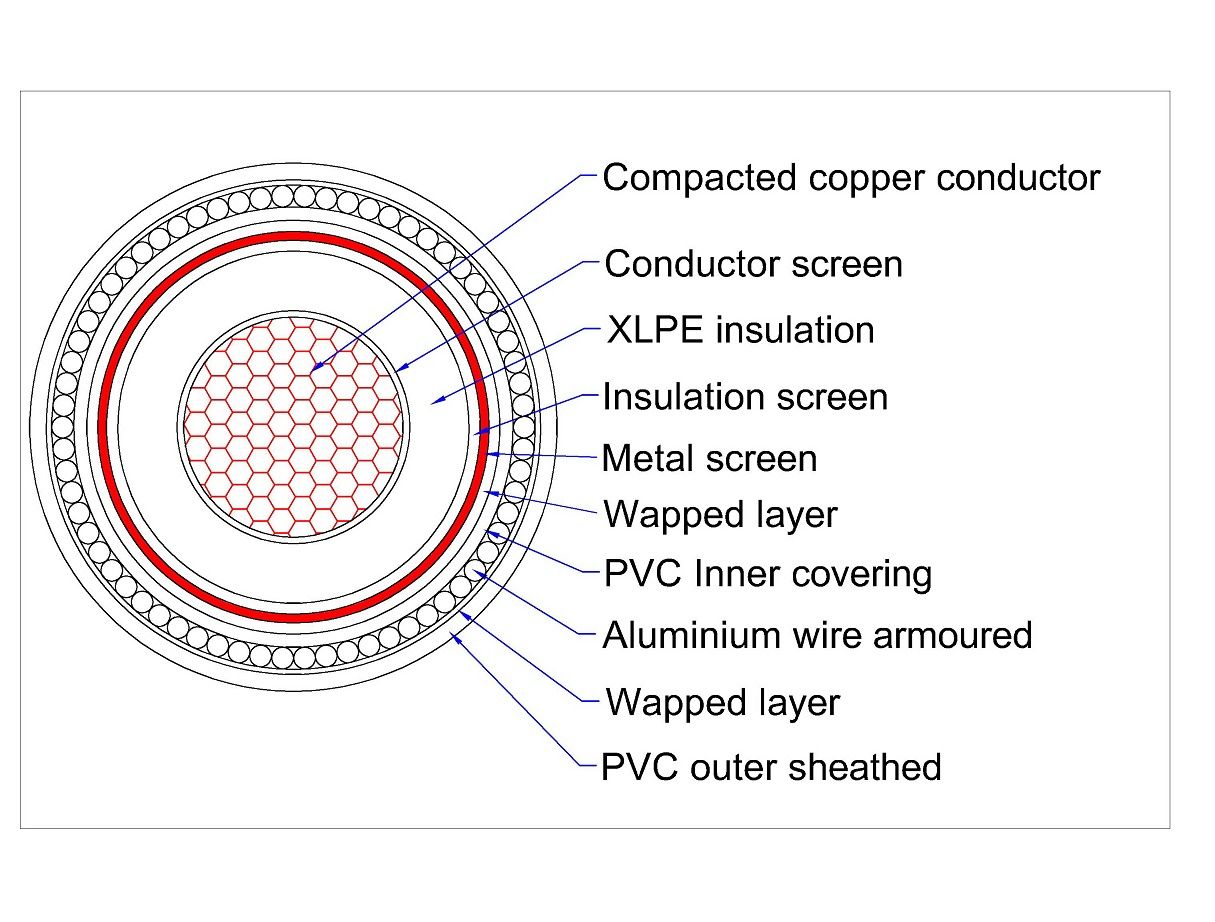

a.Construction

Conductor: Copper, Aluminum
Insulation: Cross-linked polyethylene (XLPE)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC) or PE

b.Number of cable cores

Single core,two cores,three cores,four cores(Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),five cores(Five equal-section-area cores or three equal -section-area cores and two smaller section area neural cores).

c.Nominal Section

Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 1000

d.Features

XLPE  insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and environmental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is convenient to use and can be laid with no restriction of different level.

XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-aging resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silance and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free, and non-smoke nonhalogenated and three classes of A, B, C.

e.Standard

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.

f.The Rated Voltage (kv)

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

g.Application

1)These cables are most suitable for direct burial or for installation on trays or ducts,  Where there is a risk of mechanical damage, armoured cables should be used.

2) For laying in ground along route with large difference of level able to bear external mechanical forces.
