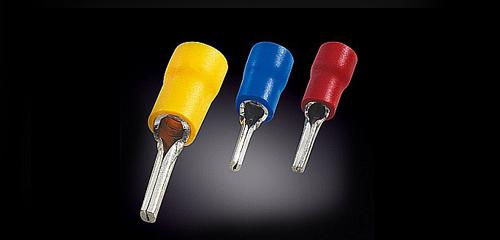

Copper Pre-Insulated Barrier Terminal Block Pin Shaped

Name: Copper Pre-Insulated Barrier Terminal Block Pin Shaped
Brand: all-electronics-online.com
SKU: 735098865
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 0.254/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTV 2-18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Pin-Shaped Insulated Terminal
Application:	Conduct Electricity
Type:	Single Hole Terminals
Material:	Copper

Product Description

1) Material: Purple copper
2) Cable size: 0.5-6mm2, thickness 0.75mm, 0.8mm, 1mm
3) Max current: 19A, 27A, 37A, 48A,
Specification

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, railway, shipbuilding, spaceflight & aviation, light industry, household electrical, computers, auto-equipment and etc.
2) Processing: Cold press
3) Material: T2 copper with tinned surface, credible conductivity; PVC insulation cover, no break or rebound.
4) Certificate: ISO9001-2008
5) Manufacturer: Price advantage, quick delivery

22~16 AWG / 0.5~1.5 mm2: 19 A material thickness: 0.7mm
16~14 AWG / 1.5~2.5 mm2: 27 A material thickness: 0.8mm
14~12AWG / 2.5~4 mm2: 34 A material thickness: 1.0mm
12~10 AWG/ 4~6 mm2: 48A material thickness: 1.0 mm

Wenzhou ziyong electrical Co., Ltd is a comprehensive and production processing trading enterprise in Zhejiang Province which is approved by the Forgeign Trade Department in China, and has own import and export power. We are engaged in cable and cable accessories, Like insulation piercing connector, cable connectors and fittings, like insulators and cable lugs and other connectors, explosion-proof products, fuse products, transformers, auto parts to cars, electricity and electronic products, plastics, machinery and decorated products.

Item No	Dimesion ( mm )							Description	Tool
Item No	F Φ	L	E	H	D Φ	d Φ	T	Description	Tool
PTV1.25-10	1.9	14.8	10.0	4.8	3.4	1.7	0.8	Cable Size:0.5~1.5mm2 (American standard22~16) Max.current=19A	HX-10 LY-2026E (Jaw 1.5)
PTV1.25-13	1.9	17.8	13.0	4.8	3.4	1.7	0.8
PTV1.25-17	1.9	21.8	17.0	4.8	3.4	1.7	0.8
PTV2-10	1.9	14.8	10.0	4.8	4.0	2.3	0.8	Cable Size:1.5~2.5mm2 (American standard16~14) Max.current=27A	HX-10 LY-2026E (Jaw 2.5)
PTV2-12	1.9	16.8	12.0	4.8	4.0	2.3	0.8
PTV2-13	1.9	17.8	13.0	4.8	4.0	2.3	0.8
PTV2-17	1.9	21.8	17.0	4.8	4.0	2.3	0.8
PTV5.5-13	2.8	19.8	13.0	6.8	5.5	3.4	1.0	Cable Size:4~6mm2 (American standard(12~10) Max.current=48A	HX-10 LY-2026E (Jaw 5.5)
PTV5.5-18	2.8	24.8	18.0	6.8	5.5	3.4	1.0	Cable Size:4~6mm2 (American standard(12~10) Max.current=48A	HX-10 LY-2026E (Jaw 5.5)

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.
