Copper Wire 12 Core Singlemode Fiber Cable

Name: Copper Wire 12 Core Singlemode Fiber Cable
Brand: all-electronics-online.com
SKU: 683279462
Availability: InStock
Rating: 4.9 (66 reviews)

Price:	US $ 0.259-0.4/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW&copper
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D
Fiber Count:	2-24 Cores
Tube:	Central Loose Tube
Armored:	Corrugated Steel Tape/Aluminium Tape
Strength Member:	Two Parallel Cooper Wire
Material Of Jacket:	PE /Flame Retardant PE/Anti-Rodent PE
Applications:	Aerial, Conduit, Underground
Operating Temperature:	-40°c~+70°c
Certificate:	ISO9001 Tlc RoHS
Bend Radius:	Static 10X Cable D; Dynamic 20X Cable Diameter
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-24
Brand:	Efon
Sheath Material:	PE/Lszh Sheath/Flame Retardant PE/Anti-Rodent PE

Product Description

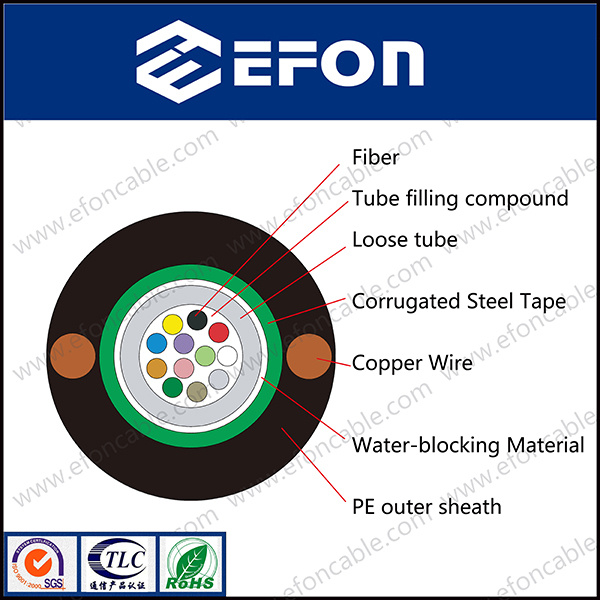

GYXTW & COPPER is an outdoor communication optical cable of metal strength member of the central tube jelly-filled structure with embedding steel-polyethylene laminated sheath, consisting of the central loose tube, two parallel copper wire strength members, and sheath.

Feature

Full cross-section water-blocking structure to ensure good water blocking and moisture resistance
Loose tube is filled with special ointment for a key fiber protection
Two parallel round copper wires are resistant to tensile and lateral pressure
Small cable diameter, light weight, and excellent bending properties
Loose tube is in the physical center of fiber optic cable, easy for construction and operation
Product life of 30 years

Performance:

Applications: Suitable for long-distance communication and indoor communication
Way of laying: overhead, pipeline

Operating temperature: -30 ~ + 70 °C
Bend radius: static 10x cable diameter
Dynamic 20x cable diameter

Strength member:Two parallel copper wire strength member

Performance

Applications: Suitable for long-distance communication and indoor communication
Way of laying: overhead, pipeline
Operating temperature: -30 ~ + 70 °C
Bend radius: static 10x cable diameter
Dynamic 20x cable diameter

Products Standard

Mechanical Performance :
Max Tension Performance : IEC 60794–1-2-E
Max. Operation Tension : IEC 60794–1-2-E1
Crush Test : IEC 6079 –1-2-E3
Impact Test : IEC 60794–1-2-E4
Repeated Bending : IEC 60794–1-2-E6
Torsion Test : IEC 60794–1-2-E7
Cable bend : IEC 60794–1-2-E11A
Attenuation Coefficient : TU-T G.652
Structural Test : IEC-60793-1-20
Environmental Performance
Temperature Cycling : IEC 60794–1-2-F1
Water Penetration : IEC 60794–1–2-F5B
Filing Compound Flow : IEC 60794-1-E14

MORE INGORMATION

Structure and Technical Specifications

Total number of fiber cores		2-16
Outer diameter (mm)		7.8mm~8.5mm
Cable Max unit weight (kg/km)		65+
Allowable pull force (N)	long-term	600
	short-term	1500
Allowable crush strength (N/100mm)	long-term	300
	short-term	1000
Min bending radius (mm)	static	10 times of cable external diameter
	dynamic	20 times of cable external diameter
Application of temperature		-40°C-60°C

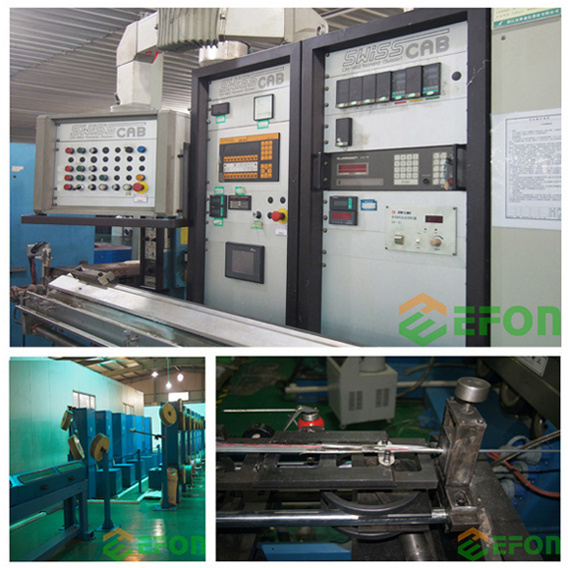

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.

We have a professional customer service team, which is always ready to consult you on all the issues related to our products.

Our Principles:
* Full customer satisfaction
* Commitment to high-quality service
* Relationships based on mutual trust and respect
* Long-term cooperation rather than one time profitable sale

EFON CABLE is your reliable partner in mainland China!

We were established in 2001 as a manufacturer of fiber optic cable. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the globe.
