| Prod Model: |

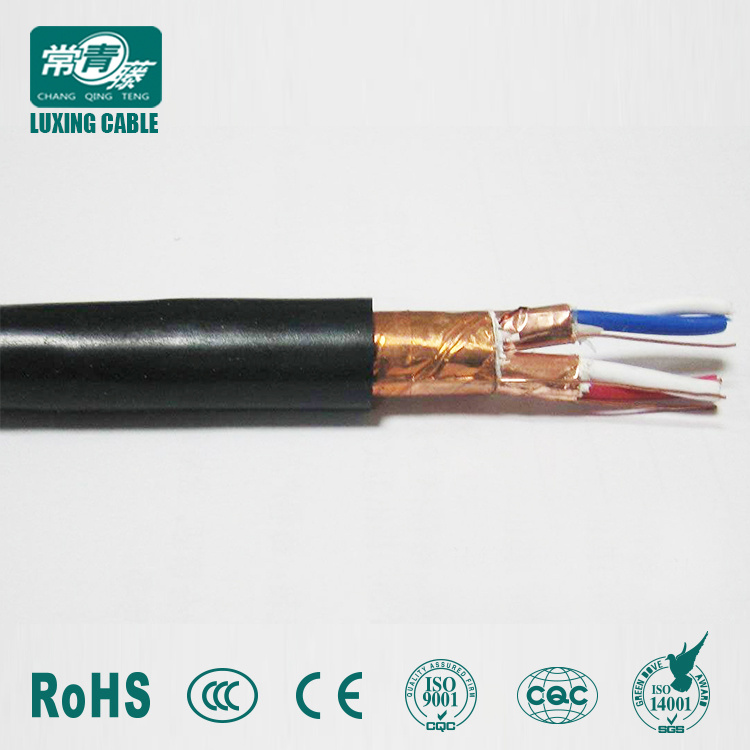

Copper wire braided and armored control cable |
| Product Name: |
Copper Wire Braided and Armored Control Cable |
| Rated Voltage: |
450/750 V |
| Conductor: |
Copper |
| Insulation: |
XLPE/PVC |
| Sheath: |
PVC/PE |
| Core Number: |
1 2 3 4 5 6 7 8 9 10 |
| Color Color: |
Red , Yellow , Blue ,Green or as Your Requirement |
| Origine: |
Shandong , China |
| Packaging: |
Wooden Drum |
| Shipping: |
3-10 Working Days |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Model: |
XLPE Power Cable |
| Brand: |
Chan Qing Teng |
Product Description
ITEM NAME : Copper Wire Braided and Armored Control Cable
1. Description:
See below detail description of the construction, Flame retardant, fire resistance, low smoke zero halogen available.
2. Applications:
These cables are suitable for the interconnection between power distribution unit, widely used in controlling signaling protecting and measuring system Copper conductor | Copper conductor |
Insulation | PVC insulation |
Braid | Copper wire braided |
Armor | Steel tape armored |
Sheath | PVC outer sheath |
4. Standard:
IEC60502, IEC60332 , other standard such as: BS, DIN, AS/NZS, UL upon request
5. Technical data:
Rated voltage: 450/750V, 0.6/1kv
Max. Operating Temp of Conductor: under normal 70ºC, emergency ( 105ºC), short circuit no more than 5s (160ºC)
Min. Ambient Temperature during installation: 0ºC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12x cable O.D for single core
6. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
7. Core Identification:
Black core with white numbering. OEM Color available, Green/ Yellow earthing core upon request
Types and Specifications
Type | Name | Section Area(mm2) | No. of Core | Application Site |
KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 |
10 | 2-10 |
KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 |
10 | 2-10 |
KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 7-61 |
10 | 4-10 |
KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 | 4-14 |
10 | 4-14 |
KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
1.5 2.5 | 4-48 |
KYJV | Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 |
10 | 2-10 |
KYJVP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 |
10 | 2-10 |
KYJV22 | Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
4 6 | 4-14 |
10 | 4-10 |
KYJVP2 | Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 4-14 |
10 | 4-10 |
KYJVR | Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KYJVRP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility and movability are required |

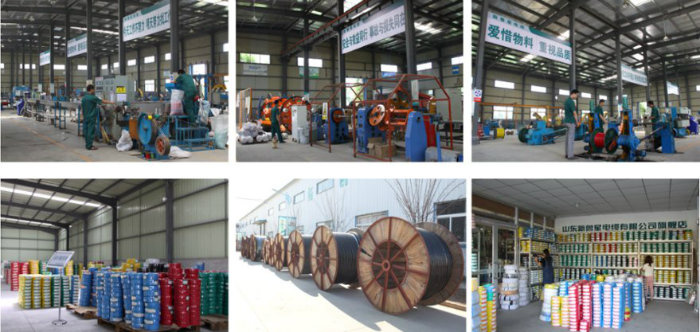

Luxing Factory : our production base

Video Show
Company introduction: https://youtu.be/j-bfOk2gCFY
Copper wire stranded: https://youtu.be/QT-b7M9YkLw
Copper wire braided: https://youtu.be/3-fP1OOuPA4
Cabling machine: https://youtu.be/h6kE4ofeiWA
Armoured: https://youtu.be/Clu5e7LW_l8
Extruded pvc sheathed,insulation: https://youtu.be/3c93OxsKmBw

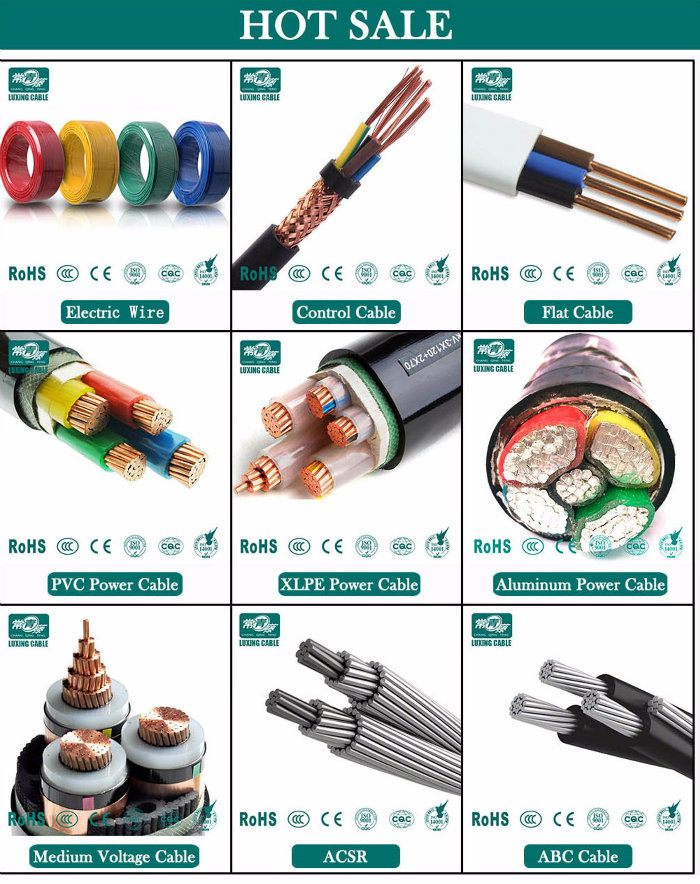

Luxing Cable Mainly Produce | 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |

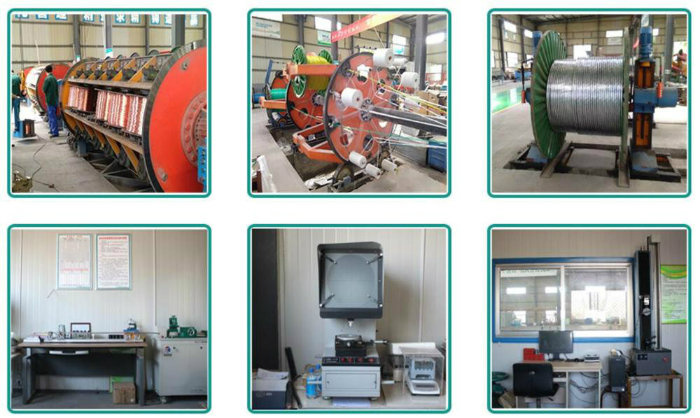

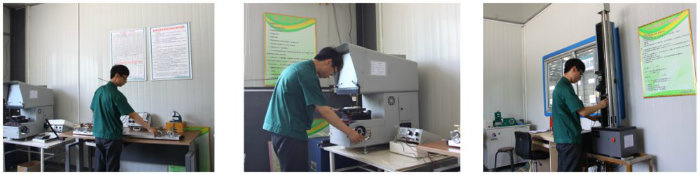

Strict Quality Test
