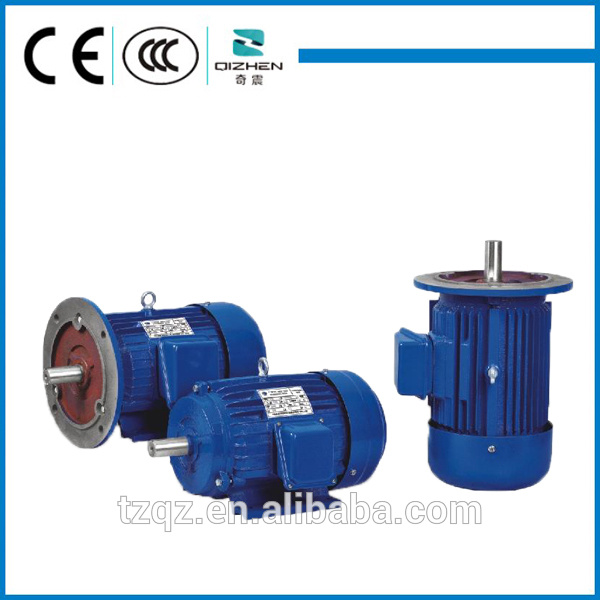

copper wire winding asynchronous three phase induction electrical motor

Name: copper wire winding asynchronous three phase induction electrical motor
Brand: all-electronics-online.com
SKU: 777823615
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Core Wire:	100%Copper
Power:	0.18kw-315kw
Protection Class:	IP44
Insulation Class:	F
Protection Feature:	Totally Closed
Mounting:	B3, B5, B35, B14, B34
Number Of Stator:	Three-Phase
Function:	Driving
Number Of Poles:	2, 4, 6, 8
Certification:	CE

Product Description

copper wire winding asynchronous three phase induction electrical motor has the advantages of high efficiency and energy saving, low noise and little vibration.

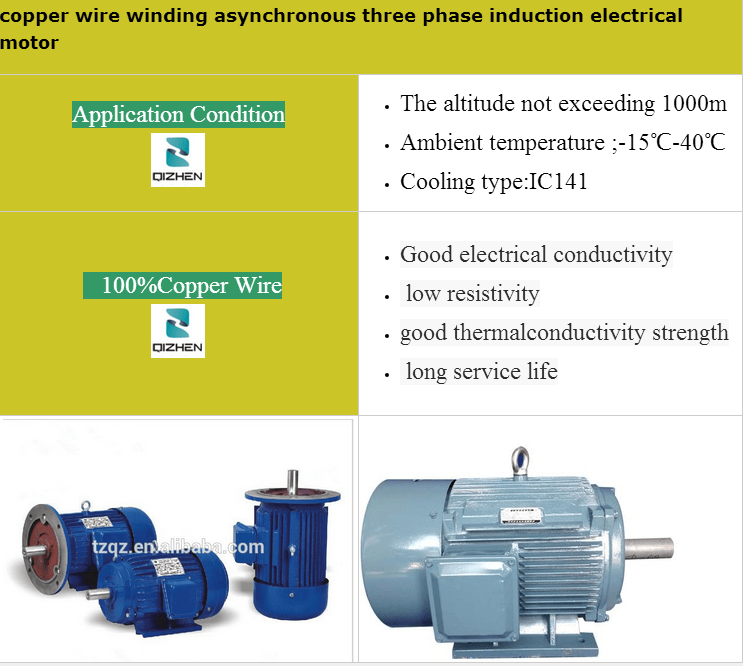

Appllication Condition

The altitude not exceeding 1000m above sea level.

The ambient temperature varies in different season,but not exceeding +40 ºC and no less than -15 ºC

Application Scope

Y2 series motor is widely used in General purpose including cutting, machine, pumps, fans, conveyors,machine tools of farm duty and foodprocess

Technical Data

Output (KW)	Type	Amps (A)	Speed (R/min)	Eff. %	p.f.	RT N.m				Noise LwdB (A)	Weight (Kg)
380V 50HZ 2P
0.18	Y2-631-2	0.5	2800	65.0	0.80	00.61	2.2	2.2	5.5	61	14
0.25	Y2-632-2	0.7	2800	68.0	0.81	0.96	2.2	2.2	5.5	61	14.5
0.37	Y2-711-2	1.0	2800	70.0	0.81	1.26	2.2	2.2	6.1	64	15
0.55	Y2-712-2	1.4	2800	73.0	0.82	1.88	2.2	2.3	6.1	64	15.5
0.75	Y2-801-2	1.8	2825	75.0	0.83	2.54	2.2	2.3	6.1	67	16.5
1.1	Y2-802-2	2.6	2825	77.0	0.84	3.72	2.2	2.3	7.0	67	17.5
1.5	Y2-90S-2	3.4	2840	79.0	0.84	5.04	2.2	2.3	7.0	72	21
2.2	Y2-90L-2	4.9	2840	81.0	0.85	7.40	2.2	2.3	7.0	72	25
3	Y2-100L-2	6.3	2880	83.0	0.87	9.95	2.2	2.3	7.5	76	33
4	Y2-112M-2	8.1	2890	85.0	0.88	13.22	2.2	2.3	7.5	77	41
5.5	Y2-132S1-2	11.0	2900	86.0	0.88	18.11	2.2	2.3	7.5	80	63
7.5	Y2-132S2-2	14.9	2900	87.0	0.88	24.70	2.2	2.3	7.5	80	70
11	Y2-160M1-2	21.3	2930	88.0	0.89	35.85	2.2	2.3	7.5	86	110
15	Y2-160M2-2	28.8	2930	89.0	0.89	48.89	2.2	2.3	7.5	86	120
18.5	Y2-160L-2	34.7	2930	90.5	0.90	60.30	2.2	2.3	7.5	86	135
22	Y2-180M-2	41.0	2940	91.2	0.90	71.46	2.0	2.3	7.5	89	165
30	Y2-200L1-2	55.5	2950	92.0	0.90	97.12	2.0	2.3	7.5	92	218
37	Y2-200L2-2	67.9	2950	92.3	0.90	119.78	2.0	2.3	7.5	92	230
45	Y2-225M-2	82.3	2970	92.3	0.90	144.70	2.0	2.3	7.5	92	280
55	Y2-250M-2	100.4	2970	92.5	0.90	176.85	2.0	2.3	7.5	93	365
75	Y2-280S-2	134.4	2970	93.2	0.91	241.16	2.0	2.3	7.5	94	495
90	Y2-280M-2	160.2	2970	93.8	0.91	289.39	2.0	2.3	7.5	94	565
110	Y2-315S-2	195.4	2980	94.0	0.91	352.51	1.8	2.2	7.1	96	890
132	Y2-315M-2	233.2	2980	94.5	0.91	423.02	1.8	2.2	7.1	96	980
160	Y2-315L1-2	279.3	2980	94.6	0.92	512.75	1.8	2.2	7.1	99	1055
200	Y2-315L2-2	348.4	2980	94.8	0.92	640.94	1.8	2.2	7.1	99	1110
250	Y2-355M-2	433.2	2985	95.3	0.92	799.83	1.6	2.2	7.1	103	1900
315	Y2-355L-2	544.2	2985	95.6	0.92	1007.79	1.6	2.2	7.1	103	2300
380V 50HZ 4P
0.12	Y2-631-4	0.4	1400	57.0	0.72	0.82	2.1	2.2	4.4	52	13
0.18	Y2-632-4	0.6	1400	60.0	0.73	1.23	2.1	2.2	4.4	52	13.5
0.25	Y2-711-4	0.8	1400	65.0	0.74	1.71	2.1	2.2	5.2	55	14
0.37	Y2-712-4	1.1	1400	67.0	0.75	2.54	2.1	2.2	5.2	55	14.5
0.55	Y2-801-4	1.6	1390	71.0	0.75	3.78	2.4	2.3	5.2	58	15
0.75	Y2-802-4	2.0	1490	73.0	0.77	5.15	2.4	2.3	6.0	58	16
1.1	Y2-90S-4	2.0	1400	75.0	0.77	7.50	2.3	2.3	6.0	61	23
1.5	Y2-90L-4	3.7	1420	78.0	0.79	10.23	2.3	2.3	6.0	61	25
2.2	Y2-100L1-4	5.2	1420	80.0	0.81	14.80	2.3	2.3	7.0	64	33
3.	Y2-100L2-4	6.8	1420	82.0	0.82	20.18	2.3	2.3	7.0	64	35
4.	Y2-112M-4	8.8	1440	84.0	0.82	26.53	2.3	2.3	7.0	65	41
5.5	Y2-132S-4	11.8	1440	85.0	0.83	36.48	2.3	2.3	7.0	71	65
7.5	Y2-132M-S	15.6	1440	87.0	0.84	49.74	2.2	2.3	7.0	71	76
11	Y2-160M-4	22.3	1460	88.0	0.85	71.59	2.2	2.3	7.0	75	118
15	Y2-160L-4	30.1	1460	89.0	0.85	98.12	2.2	2.3	7.5	75	132
18.5	Y2-180M-4	36.5	1470	90.5	0.85	120.19	2.2	2.3	7.5	76	164
22	Y2-1180L-4	43.2	1470	91.0	0.85	142.93	2.2	2.3	7.5	76	182
30	Y2-200L-4	57.6	1480	92.0	0.86	193.68	2.2	2.3	7.2	79	245
37	Y2-225S-4	69.9	1480	92.5	0.87	238.87	2.2	2.3	7.2	81	258
45	Y2-225M-4	84.7	1480	92.8	0.87	290.37	2.2	2.3	7.2	81	290
55	Y2-250M-4	103.3	1480	93.0	0.87	354.90	2.2	2.3	7.2	83	388
75	Y2-280S-4	139.6	1480	93.8	0.87	483.95	2.2	2.3	7.2	86	510
90	Y2-280M-4	166.9	1485	94.2	0.87	578.79	2.2	2.3	7.2	86	606
110	Y2-315S-4	201.0	1485	94.5	0.88	707.41	2.1	2.2	6.9	93	910
132	Y2-315M-4	240.4	1485	94.8	0.88	848.89	2.1	2.2	6.9	93	1000
160	Y2-315L1-4	287.8	1485	94.9	0.89	1028.96	2.1	2.2	6.9	97	1055
200	Y2-315L2-4	359.4	1485	95.0	0.89	1286.20	2.1	2.2	6.9	97	1128
250	Y2-355M-4	442.9	1490	95.3	0.90	1602.35	2.1	2.2	6.9	101	1700
315	Y2-355L-4	556.2	1490	95.6	0.90	2018.96	2.1	2.2	6.9	101	1900
380V 50HZ 6P
0.18	Y2-711-6	0.8	900	56.0	0.60	1.91	1.9	2.0	4.0	52	14
0.25	Y2-711-6	0.9	900	59.0	0.68	2.65	1.9	2.0	4.0	52	14.5
0.37	Y2-801-6	1.3	900	62.0	0.70	3.93	1.9	2.0	4.7	54	15
0.55	Y2-802-6	1.8	900	65.0	0.72	5.84	1.9	2.1	4.7	54	16
0.75	Y2-90S-6	2.3	910	69.0	0.72	7.87	2.0	2.1	5.5	57	19
1.1	Y2-90L-6	3.2	910	72.0	0.73	11.54	2.0	2.1	5.5	57	22
1.5	Y2-100L-6	3.9	940	76.0	0.76	15.24	2.0	2.1	5.5	61	32
2.2	Y2-112M-6	5.6	940	79.0	0.76	22.35	2.1	2.1	6.5	65	41
3	Y2-132S-6	7.4	960	81.0	0.76	29.84	2.1	2.1	6.5	69	63
4	Y2-132M1-6	9.9	960	82.0	0.76	39.79	2.1	2.1	6.5	69	72
5.5	Y2-132M-6	12.9	960	84.0	0.77	54.71	2.1	2.1	6.5	69	81
7.5	Y2-160M-6	16.9	970	86.0	0.78	73.84	2.0	2.1	6.5	73	118
11	Y2-160L-6	24.2	970	87.5	0.79	108.30	2.0	2.1	6.5	73	145
15	Y2-180L-6	31.6	970	89.0	0.81	147.68	2.1	2.1	7.0	73	178
18.5	Y2-200L1-6	38.6	970	90.0	0.81	182.14	2.1	2.1	7.0	76	200
22	Y2-200L2-6	44.7	970	90.0	0.83	216.60	2.1	2.1	7.0	76	228
30	Y2-225M-6	59.3	980	91.5	0.84	292.35	2.0	2.1	7.0	76	265
37	Y2-250M-6	71.1	980	92.0	0.86	360.56	2.1	2.1	7.0	78	370
45	Y2-280S-6	85.9	980	92.5	0.86	438.52	2.1	2.0	7.0	80	490
55	Y2-280M-6	104.7	980	92.8	0.86	535.97	2.1	2.0	7.0	80	540
75	Y2-315S-6	141.7	980	93.5	0.86	730.87	2.0	2.0	7.0	85	900
90	Y2-315M-6	169.5	985	93.8	0.86	872.59	2.0	2.0	7.0	85	980
110	Y2-315L1-6	206.7	985	94.0	0.86	1066.50	2.0	2.0	6.7	85	1045
132	Y2-315L2-6	244.7	985	94.2	0.87	1279.80	2.0	2.0	6.7	85	1100
160	Y2-355M1-6	292.3	990	94.5	0.88	1543.43	1.9	2.0	6.7	92	1440
200	Y2-355M2-6	364.6	990	94.7	0.88	1929.29	1.9	2.0	6.7	92	1600
250	Y2-355L-6	454.8	990	94.9	0.88	2411.62	1.9	2.0	6.7	92	1700

packing

To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case
Customized package is also accept

Pre-sales service:

We value every inquiry sent to us, ensure quick competitive offer within 12 hours.

We cooperate with customer to design and develop the new products.

Provide all necessary document.

We are a sales team, with all technical support from engineer team.

After sales service:

We respect your feed back after receive the goods.

We provide 12-24 months warranty after goods arrive.

We promise all spare parts available in lifetime use.

Brief Introduction to our company

Taizhou Qizhen Mechanical and Electrical Technology Co. Ltd, is located in the Chinese Yangtze River Delta and in a coastal open city-Taizhou city which is famous for pumps and motors.We are your wise choice because:

1.We are professional manufacturer with more than 17 years experience in Electric motor

2. We are Alibaba Assessed Gold Supplier and Trade Assurance.

3. Every year 500,000 to 600,000pcs of electric motor were exported to others countries.

4.we test the material before production and three to four times when producing to ensure the goods in good quality,also we produce according to your quirement

5.Best production capability,best quality control,best service

6.we can be your OEM manufacturer with your authorization of brand.

There are some questions you may come up with :

1. Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.

2. Q: Is it all right to make customers' own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.

3. Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

4. Q: How long is your warranty?
A: One year after receive B/L.

5. Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.

Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.

With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.

In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
