Cost-Effective OEM Pressure Sensor Mpm288

Name: Cost-Effective OEM Pressure Sensor Mpm288
Brand: all-electronics-online.com
SKU: 705986522
Availability: InStock
Rating: 5 (101 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM288
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~100kpa...3.5MPa
Diameter:	19mm
Housing:	Stainless Steel
Impact:	100g,11ms
Pressure Type:	Gauge/ Absolute
Overpressure:	1.5 Times Fs
Weight:	25g
Power Supply:	<=2.0madc
O-Ring:	Viton
Diaphragm:	Stainless Steel

Product Description

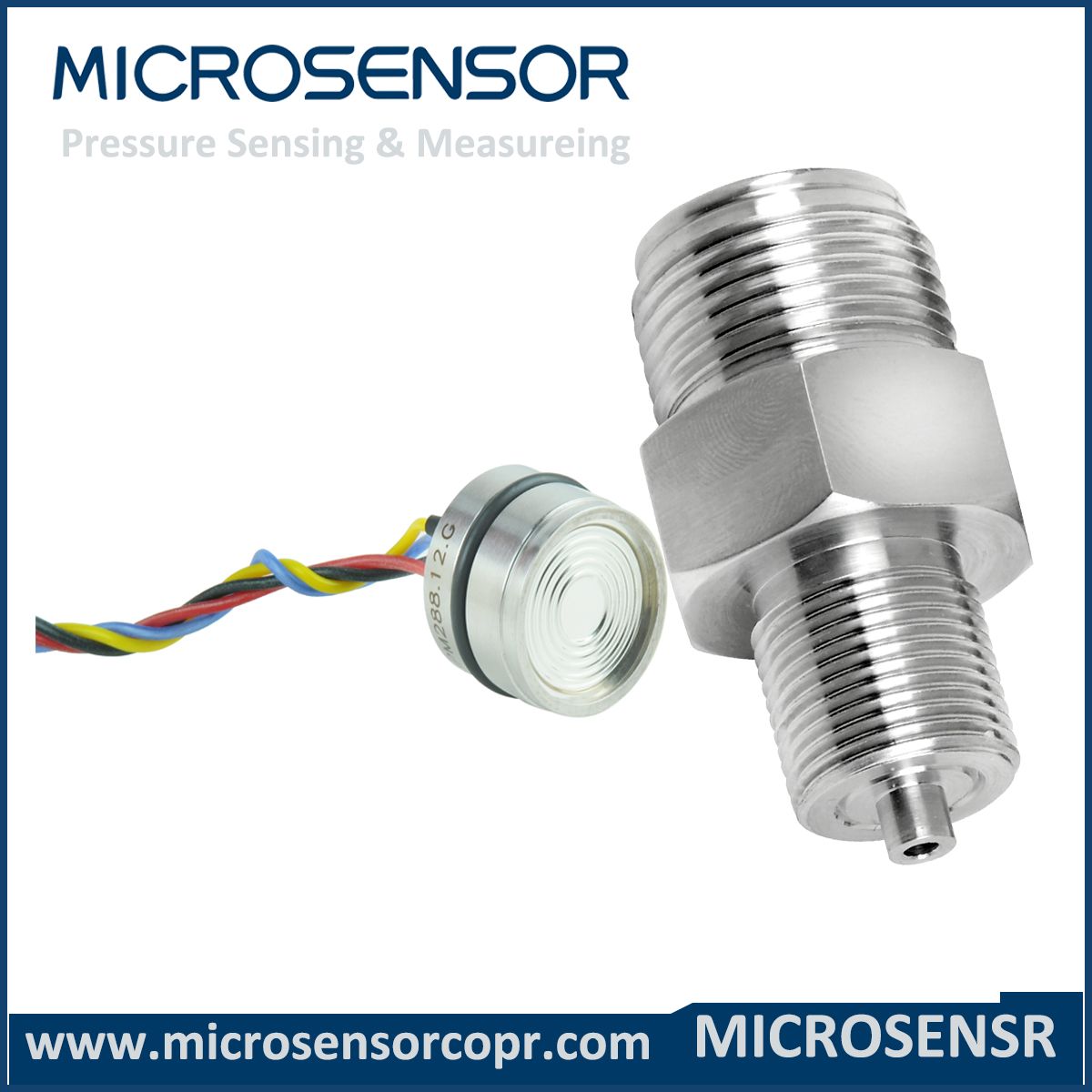

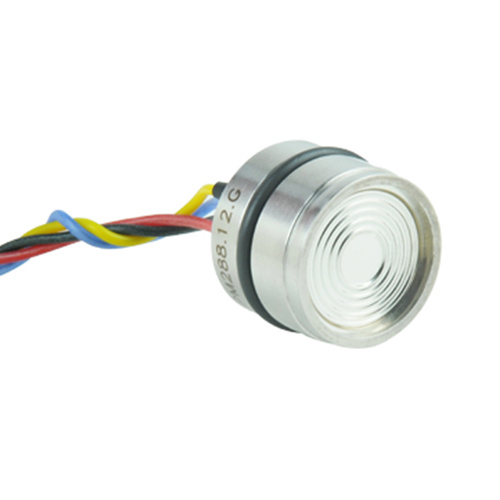

Cost-Effective OEM Pressure Sensor MPM288

Features:
1.   Cost-Effective;
2.   Chip from international famous brand;
3.   Constant current power supply;
4.   SS316L;
5.   19mm

Application:
1.   Industrial process control
2.   Level measurement
3.   Pressure calibrator
4.   Aviation and navigation inspection
5.   Cooling equipment and air conditioning system

Specifications:

Specification*	Min.	Typ.	Max.	Units
Linearity		±0.25	±0.3	%FS,BFSL
Repeatability		±0.075	±0.1	%FS
Hysteresis		±0.075	±0.1	%FS
Zero output**			±2.0	mVDC
FS output	50			mVDC
Zero thermal error			±1.0	%FS,@35ºC
FS thermal error			±1.0	%FS,@35ºC
Compensation temp. range	0~70			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Long term stability	±0.5			%FS/
Testing at basic condition,G:Gauge pressure *Zero output for closed loop sensor.

Order guide:

MPM288

Piezoresistive OEM Pressure Sensor

Range code

Pressure range
(kPa)

Ref.

Range code

Pressure range (kPa/MPa)

Ref.

0kPa~100kPa

0kPa~1000kPa

0kPa~200kPa

0MPa~2MPa

0kPa~350kPa

0MPa~3.5MPa

0kPa~700kPa

Code

Pressure Type

Gauge

Code

Pressure connection

Viton O-ring

Code

Temperature compensation

Laser trimming

Code

Electric connection

100mm silicon rubber flexible wires

MPM288 10 G 0 L 2 the whole spec.

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
