Product Description

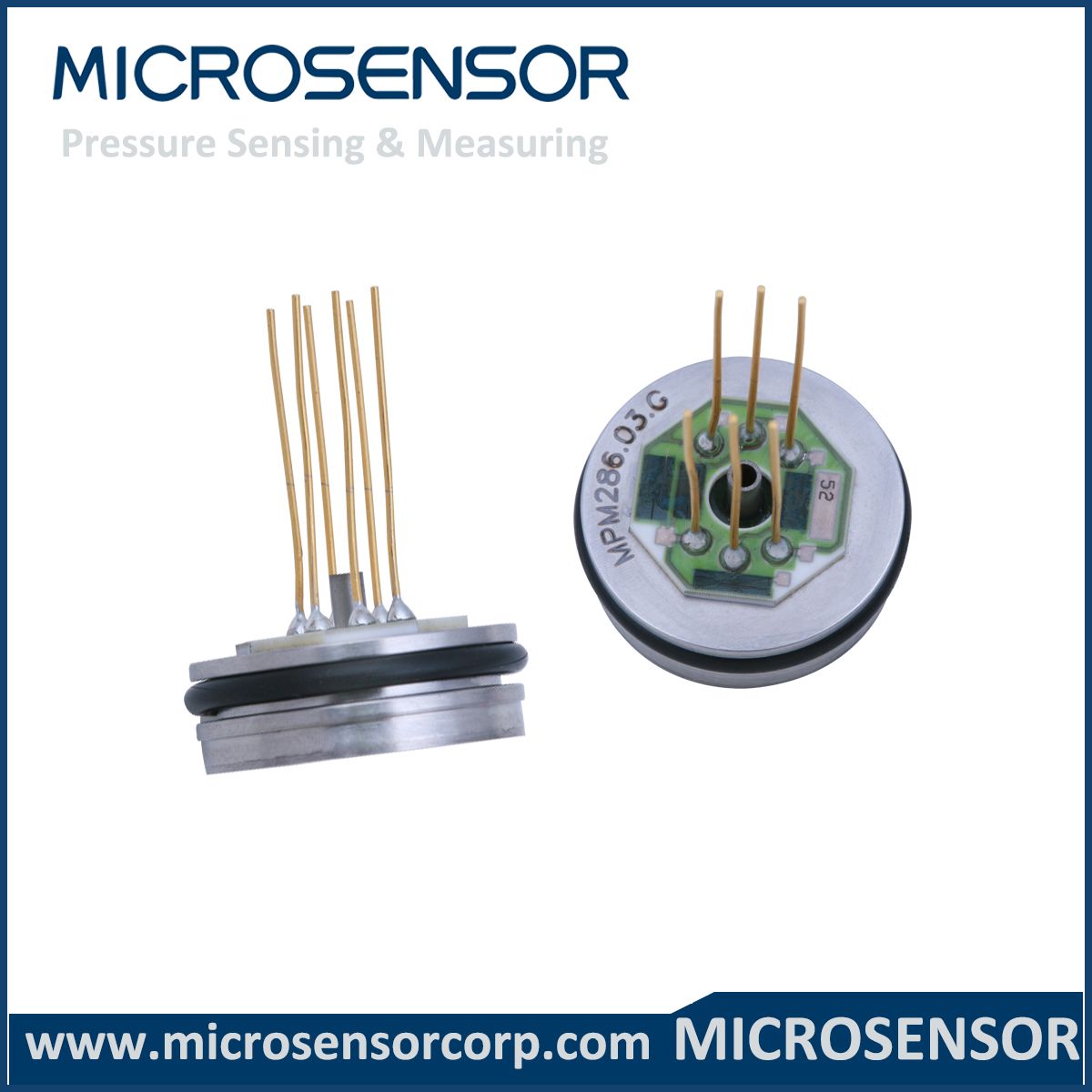

Cost-effective Piezoresistive OEM Pressure Sensor MPM286
Features:
1.Cost-effective;
2. Small size;
3.Isolated Construction;
4. Constant current power supply
5.Φ 19mm standard OEM pressure sensor
6.Full stainless steel 316L
Application
1. Industrial process control 2. Level measurement 3. Gas, liquid pressure measurement
4. Pressure checking meter 5. Pressure calibrator 6.Liquid pressure system and switch
7.Cooling equipment and air conditioning system 8.Aviation and navigation inspection
Electric Performance
Power supply: ≤2.0mA DC; ≤10V DC
Electric connection: Kovar pin / 100mm silicone rubber flexible wire
Common mode voltage output: 50% of input (typ.)
Input impedance: 2.5kΩ~5kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%):<1ms
Insulation resistor: 100MΩ, 100V DC
Overpressure: 1.5 times FS
Construction Performance
Diaphragm: stainless steel 316L
Housing: stainless steel 316L
Pin: Kovar
O-ring: Viton
Net weight: ~11g
Environment Condition
Position: deviate 90°from any direction, zero change ≤±0.05%FS
Shock: no change at 10gRMS, (20~2000)Hz
Impact: 100g, 11ms
Media compatibility: the gas or liquid which is compatible with construction material and Viton
Basic Condition
Media temperature: (25±1) ºC
Environment temperature: (25±1)ºC
Shock: 0.1g (1m/s2) Max
Humidity: (50%±10%) RH
Local air pressure:(86~106)kPa

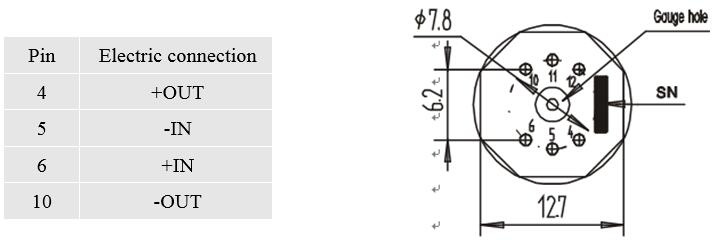

Power supply: (1.5±0.0015) m ADCOutline Construction:
Electric Connection:
Order Guide:| MPM286 | Pressure Sensor |
| | | Range code | Pressure range | Ref. | Range code | Pressure range | Ref. |
| 0B | 0kPa~20kPa | G | 08 | 0kPa~350kPa | G.A |
| 0A | 0kPa~35kPa | G | 09 | 0kPa~700kPa | G.A |
| 02 | 0kPa~70kPa | G.A | 10 | 0kPa~1000kPa | G.A |
| 03 | 0kPa~100kPa | G.A | 12 | 0MPa~2MPa | G.A |
| | 07 | 0kPa~200kPa | G.A | 13 | 0MPa~3.5MPa | G.S.A |
| | | Code | Pressure type |
| G | Gauge |
| | A | Absolute |
| | S | Sealed gauge |
| | | Code | Pressure connection |
| 0 | O-ring |
| | | Code | Compensation |
| L | Laser trimming |
| | | Code | Electric connection |
| 1 | Kovar pin |
| | 2 | 100mm silicone rubber flexible wire |
| | |
| MPM286 03 G 0 L 1 the whole spec |
Order Note
1. We suggest you to use Floating construction when you install the sensor to prevent affecting sensor stability;
2. Please pay attention to protect sensor isolated diaphragm and ceramic compensated board, to avoid damaging sensor or affecting the performance;
3. Temperature resistant range of standard Viton O-ring of sensor is -20ºC ~ 250ºC. When working temperature is lower than -20ºC, or sensor is applied in critical environment, please contact us.
