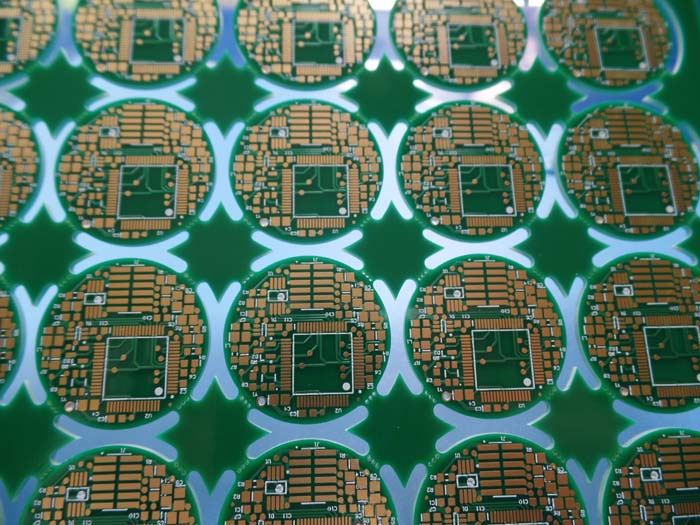

Countersink Hole PCB Board Taconic Cer-10 0.635mm (25 mil)
| Price: |
US $ 1.66/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-553-V5.53 |
| Board Thick: |
1.6mm |
| Out Layer Copper: |
35 Um (1 Oz) |
| Surface Finish: |
Electroless Nickel Over Immersion Gold (Enig) |
| Soldermask Color: |
Green,Psr-2000gt600d, Taiyo Supplied. Peelabel Mas |
| Silkscreen Color: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Minimum Trace And Space: |
6.9 Mil/7.1 Mil |
| Minimum / Maximum Holes: |
0.4/0.72mm |
| Manufacturer Name Or Logo: |
Marked on The Board in a Conductor and Leged Free |
| Via: |
Blind Via From Top Layer to Inner Layer 1 |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company Profile
Founded in Shenzhen China in 2003 Bicheng Enterprise Limited is a professional PCB export
enterprise. We have established a good relationship of cooperation with well-known enterprises
in the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal
core PCB and ceramic PCB's.
Printed Circuit Board
Aluminum PCB
High Frequency PCB
Flex PCB
ITEQ Laminate/ Prepreg : IT-140TC / IT-140BS
IPC-4101A Spec / 21
LAMINATE(IT-140TC) | Property | Thickness
<0.50 mm | Thickness
>=0.50 mm | Units | Test
Method |
| [0.0197 in] | [0.0197 in] |
Typical
Value | Spec | Typical
Value | Spec | Metric | IPC-TM
-650 |
| (English) | (or as
noted) |
| Peel Strength, minimum | | | | | N/mm | 2.4.8 |
A.Low profile copper foil
and very low profile copper
foil - all copper weights >
17mm [0.669 mil] | | | | | (lb/inch) | 2.4.8.2 |
B.Standard profile copper
foil | 0.96 (5.5) | 0.70 (4.0) | 0.96 (5.5) | 0.70 (4.0) | | 2.4.8.3 |
| 1.After Thermal Stress | | | | | | |
| 2.At 125°C [257 F] | | | | | | |
| 3.After Process Solutions | 1.75 (10 ) | 0.80 (4.57) | 1.93 (11.0) | 1.05 (6.00) | | |
| | 1.66 (9.5) | 0.70 (4.00) | 1.66 (9.5) | 0.70 (4.00) | | |
| | 1.49 (8.5) | 0.55 (3.14) | 1.49 (8.5) | 0.80 (4.57) | | |
Volume Resistivity,
minimum | | | | | MW-cm | 2.5.17.1 |
| A.C-96/35/90 | 5x1010 | 106 | -- | -- |
B. After moisture
resistance | -- | -- | 5x1010 | 104 |
C. At elevated
temperature E-24/125 | 5x1010 | 103 | 5x1010 | 103 |
Surface Resistivity,
minimum | | | | | MW | 2.5.17.1 |
| A. C-96/35/90 | 3.5x1010 | 104 | -- | -- |
B. After moisture
resistance | -- | -- | 3.5x1010 | 104 |
C. At elevated t
emperature E-24/125 | 6x1010 | 103 | 6x1010 | 103 |
Moisture Absorption,
maximum | 0.3 | -- | 0.1 | 0.8 | % | 2.6.2.1 |
Dielectric Breakdown,
minimum | -- | -- | 60 | 40 | kV | 2.5.6 |
Permittivity (Dk, 50% resin
content) | 4.6 | 5.4 | 4.6 | 5.4 | -- | 2.5.5.9 |
(Laminate & Laminated
Prepreg) |
| A. 1MHz |
Loss Tangent (Df, 50%
resin content) | 0.016 | 0.035 | 0.016 | 0.035 | -- | 2.5.5.9 |
(Laminate & Laminated
Prepreg) |
| A. 1MHz |
| Flexural Strength, minimum | | | | | N/mm2 | 2.4.4 |
| A. Length direction | -- | -- | 500-530 | 415 | (lb/in2) |
| | -- | -- | (72,500-76,850) | -60,190 | |
| B. Cross direction | -- | -- | 430-460 | 345 | |
| | -- | -- | (62,350-66,700) | -50,140 | |
| Arc Resistance, minimum | 120 | 60 | 120 | 60 | s | 2.5.1 |
Thermal Stress 10 s at
288°C [550.4F],minimum | | | | | Rating | 2.4.13.1 |
| A. Unetched | Pass | Pass
Visual | Pass | Pass
Visual |
| B. Etched | Pass | Pass
Visual | Pass | Pass
Visual |
Electric Strength,
minimum | 45 | 30 | -- | -- | kV/mm | 2.5.6.2 |
(Laminate &
Laminated Prepreg) |
| Flammability, | V-0 | V-0 | V-0 | V-0 | Rating | UL94 |
(Laminate & Laminated
Prepreg) |
Glass Transition
Temperature(DSC) | 140 | 135
minimum | 140 | 135
minimum | ˚C | 2.4.25 |
Decomposition
Temperature | -- | -- | 305 | -- | ˚C | 2.4.24.6 |
(5% wt
loss) |
| Z-Axis CTE | | | | | | 2.4.24 |
| A. Alpha 1 | -- | -- | 55 | -- | ppm/˚C |
| B. Alpha 2 | -- | -- | 290 | -- | ppm/˚C |
| C.50 to 260 Degrees C | -- | -- | 4.2 | -- | % |
| Thermal Resistance | | | | | | 2.4.24.1 |
| A. T260 | -- | -- | 15 | -- | Minutes |
| B. T288 | -- | -- | 2 | -- | Minutes |
| CAF Resistance | -- | -- | Pass | AABUS | Pass/Fail | 2.6.25 |
