| Prod Model: |
C10KR C10KRS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
See The Detail in The Web |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Brand: |
Kemapower |
Product Description

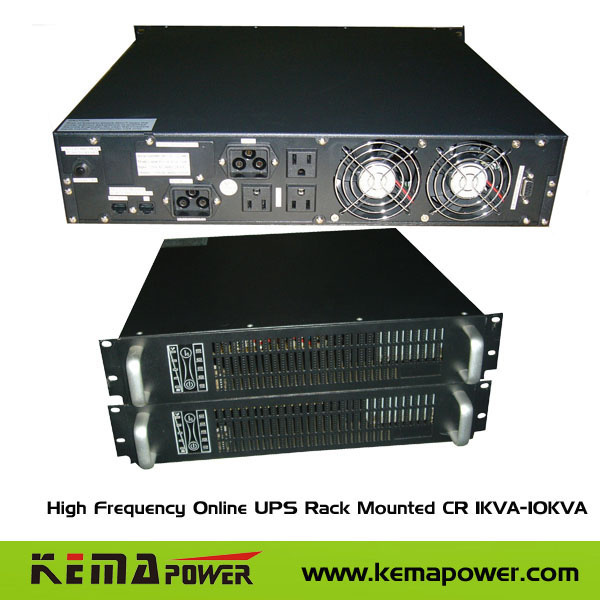

CR Series Online Rack Mounted High Frequency UPS (C10KR C10KRS) * I/P: 220VAC or 110VAC ; O/P:220VAC ± 2%
* Capacity:1KVA / 2KVA / 3KVA /6KVA/10KVA
* Output PF: 0.7 or 0.8
* Wave Form:Pure sine wave
* Transfer Time:0 ms
* DC Voltage: 1K,36/24VDC; 2KVA & 3KVA, 96/72/48VDC,6KVA/10KVA, 240VDC
* Bat.:1KVA, 3PCS7AH or The Others,External Batttery
Key features1. True high frenquence On-line double conversion technology
2. Rack mount type
3. Wide input range
4. Zero transfer time
5. CPU control
6. Self-test while start of the UPS
7. Generator compatible
8. Intelligent battery management and charging technology
9. Intelligent voltage regulating technology
10. Lightning strike resistance
11. Smart RS232 communication port with monitoring software
12. LED indication and alarm function.
Capacity:* C1KR/C1KRS/1kVA/0.7kW
* C2KR/C2KRS/2kVA/1.4kW
* C3KR/C3KRS/3kVA/2.1kW
* C6KR/C6KRS/6kVA/4.2kW
* C10KR/C6KRS/10kVA/7kW
Technical specification | ITEM | MODEL | C1KR/C1KRS | C2KR/C2KRS | C3KR/C3KRS | C6KR/C6KRS | C10KR/C10KRS |
| Capacity | VA/W | 1kVA / 0.7kW | 2kVA / 1.4kW | 3kVA / 2.1kW | 6kVA / 4.2kW | 10kVA / 7kW |
| Input | Nominal Voltage | 220 or 110VAC | 220VAC |
| Voltage Range | 115 ~ 300VAC | 176 ~ 276VAC |
| Frequency Range | 50 or 60 ± 10HZ | 46 ~ 54Hz |
| Power Factor | 0.97 | 0.98 |
| Output | Voltage | 220 or 110VAC ± 2% | 220VAC ± 1% |
| 50 or 60 ± 0.2Hz ( Battery mode) | 50Hz ± 0.05Hz ( Battery mode) |
| Waveform | Pure sine wave |
| Overload Capability | 108%~150% for 30 sec., 150% for 300 ms | 105%~130% for 10 min., 130% for 1 min |
| Current Crest Ratio | 3:01 |
| Bypass | Automatic Transfer | on overload and UPS failure |
| Before UPS Power-on | Default "NO", user adjustable to "YES" | Yes |
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero |
| LED indicators | Status | Load level / Battery level, Battery , Utility Power, Inverter, Bypass, |
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
| Communications | RS-232 Serial Interface |
| Intelligent Slot; |
| OPTIONS: (WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) |
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem |
| REMARK | C*KR is standard type. C*KRS are longer time type |
