| Prod Model: |
RT2K(S) |
| Size: |
483 X 450 X 88 (2u) |
| Product Name: |

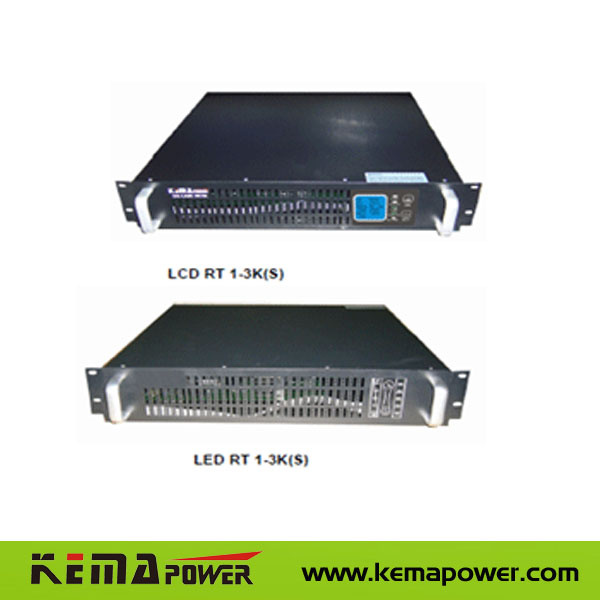

Rt2K(S) High Frequency Rack Mounting Online UPS |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Standby Time: |
Standard and Long Backup Type |
| Output Capacity: |
Depend on Capacity |
| Brand: |
Kemapower |
Product Description
RT2K(S) High Frequency Rack Mounting Online UPS * I/P: 220VAC/ 110VAC; O/P:220/110VAC+-2%
* Capacity: 6KVA / 10KVA
* Output PF: 0.9 or 0.8
* Wave Form:Pure sine wave
* Transfer Time:0 ms , RS232 or USB communication
* DC Voltage: 192VDC
* Bat.:16PCS 7AH or 20*7AH ;or The Others,External Batttery
2.Single Phase,0.9/0.8PF
3.Fully digitized microprocessor control
4.Wide input voltage range
5.Advanced PFC technology
6.Self-testing when UPS startup
7.Advanced battery management
Automatic battery charging in UPS off mode
8.Lightning and surge protection
9.Short circuit and overload protection
10.SNMP card optional
11.LCD display,EPO,ECO,USB communication optional
12.N+X parallel design optionalTechnical Specifications | Item | Model | RT2K | RT2KS |
| Capacity | VA / Watts | 2KVA/ 1.8KW | 2KVA / 1.6KW |
| Input | Normal voltage | 220VAC/ 110VAC |
| 220V Voltage range | a) (110±5 ~ 300±5) VAC when Load at 0-60% |
| b) (120±5 ~ 300±5) VAC when Load at 60-70% |
| C) (140±5 ~ 300±5) VAC when Load at 70-80%, |
| D) (160±5 ~ 300±5) VAC when Load at 80-100% |
| 110V Voltage range | 80-150VAC |
| Power Factor | 0.97 |
| Frequency range | Normal 50HZ/60HZ±4, 40~70Hz(set by winpower) |
| Output | Voltage range | 220/110VAC+-2% |
| Frequency range | 50Hz/60Hz+-0.2 (Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer time | 0 ms (AC mode and battery mode) |
| Transfer time: 4ms (typical 2.5ms),AC mode and bypass mode |
| Distortion (Full Load) linear load | ≤4% | ≤4% |
| Degree of distortion (Full Load) nonlinear load | ≤7% | ≤7% |
| Overload capacity | >108% 30s turn to bypass mode; >150%, 300ms turn to bypass |
| Load peak ratio | 3:1(max) |
| Battery Pack | Model | BP807 | N/A |
| Type | |
| Battery voltage | 96VDC | 96VDC |
| Battery number | 8*12V*7.2AH | External |
| Backup time (Full load) | >9Mins | depended on battery |
| Backup time (Half load) | 21Mins | depended on battery |
| Recharge time | 90%capacity after 5 hrs charging | depended on battery |
| Bypass | | Automatic while overload or ups fail. |
| Before ON | Default ON. Workable set by Winpower |
| Voltage Range | Default 80-260V, workable set by WinPower to 80-286V |
| Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter , Bypass ,Over load , Fault |
| LCD | Option | BAT % VDC, Input VAC HZ, Output VAC HZ , Load % |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery low |
| Overload | Beeping twice every second |
| Fault | Beeping Continuously |
| Communications | RS-232 Interface,With monitoring software,USB Option,SNMP NetAgent Option |
| Surge protection | RJ-45 I/O port available for network or Fax/Modem |
| Environment | Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| UPS Product size | WxDxH (mm) | 483 x 450 x 88 (2U) |
| UPS CTN size | WxDxH (mm) | 605*610*270 |
| UPS CTN weight | KG/PCS | 18/1PCS | 18.2/1PCS |
| BP Product size | WxDxH (mm) | 483 x 450 x 88 (2U) |
| BP CTN size | WxDxH (mm) | 605*610*270 |
| BP CTN weight | KG/PCS | 305/1PCS | N/A |
| REMARK | RT*K --- Standard Type, RT*KS---- Long Time Type. |
