| Prod Model: |
RT6-10K(S) |
| Size: |
See The Detail in The Web |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Standby Time: |
Standard and Long Backup Type |
| Output Capacity: |
Depend on Capacity |
| Brand: |
Kemapower |
Product Description

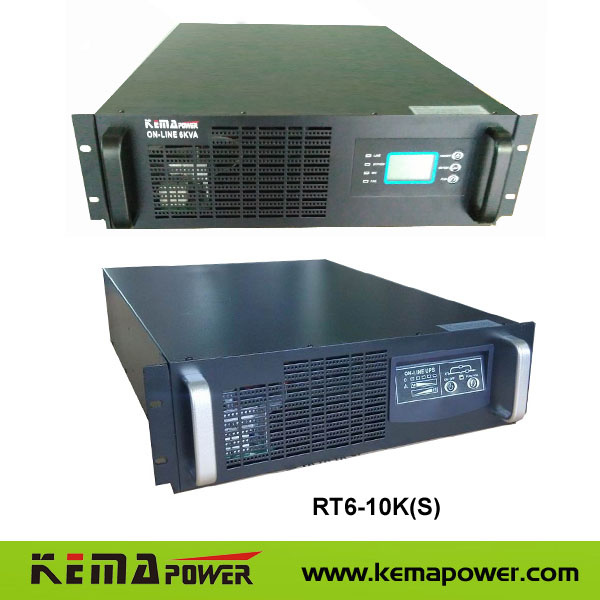

RT 6-10KVA High Frequency Rack Mounting Online UP * I/P: 220VAC/ 110VAC; O/P:220/110VAC+-2%
* Capacity: 6KVA / 10KVA
* Output PF: 0.9 or 0.8
* Wave Form:Pure sine wave
* Transfer Time:0 ms , RS232 or USB communication
* DC Voltage: 192VDC
* Bat.:16PCS 7AH or 20*7AH ;or The Others,External Batttery
1.Rack Mounting High frequency double conversion online UPS
2.Single Phase,0.9/0.8PF
3.Fully digitized microprocessor control
4.Wide input voltage range
5.Advanced PFC technology
6.Self-testing when UPS startup
7.Advanced battery management
Automatic battery charging in UPS off mode
8.Lightning and surge protection
9.Short circuit and overload protection
10.SNMP card optional
11.LCD display,EPO,ECO,USB communication optional
12.N+X parallel design optional
Technical Specifications | ITEM | MODEL | N-RT6K | N-RT6KS | N-RT10K | N-RT10KS |
| Capacity | VA / Watts | 6KVA/5.4KW | 6KVA/4.8KW | 10KVA/9KW | 10KVA/8KW |
| Input | Normal voltage | 220VAC, L+N+G |
| Input Voltage range | 100- 280±5V while load≤50% |
| 150-280±5V, while 50% |
| 160-280±5V, 80% |
| 175-280±5V while load>90% |
| Frequency range | 50/60±10% |
| Input power factor | >0.99(220VAC,full R load) |
| Generator | Support generator input(Generator rating≥2*UPS rating |
| Output | Voltage range | 220VAC+-1% |
| Frequency range | 48Hz/54Hz(AC mode), 50HzX(1±0.1)(Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer Time | 0 ms |
| Distortion (Full Load) linear load | < 3% |
| Distortion (Ful l Load) nonlinear load | < 5% |
| Overload capacity | 105%~125% ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. >150% ,0.5s then transfer to bypass and alarm. |
| Load peak ratio | 3:1(max) |
| 192VDC Battery PacK | MODEL | BP167 | N/A | BP167 | N/A |
| Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 192VDC | 192VDC | 192VDC | 192VDC |
| Battery Capacity | 16*7AH | External | 16*7AH | External |
| Around backup time (Full load) | 4Mins | Depended on battery capacity | 3Mins | Depended on battery capacity |
| Around backup time (Half load) | 12Mins | Depended on battery capacity | 9mMins | Depended on battery capacity |
| Recharge time | 7 hours to 90%capacity | Depended on battery capacity | 7 hours to 90%capacity | Depended on battery capacity |
| 240VDC Battery Pack | MODEL | BP207 | N/A | BP207 | N/A |
| Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 240VDC | 240VDC | 240VDC | 240VDC |
| Battery Capacity | internal 20*7AH | External | internal 20*7AH | External |
| Around backup time (Full load) | 7Mins | Depended on battery capacity | 5Mins | Depended on battery capacity |
| Around backup time (Half load) | 20Mins | Depended on battery capacity | 13mMins | Depended on battery capacity |
| Recharge time | 8 hours to 90%capacity | 5Amp charger | 8 hours to 90%capacity | 5Amp charger |
| LED Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault |
| LCD Display | Option | BAT VDC and % , Input VAC and HZ , Output VAC and HZ, Load W and % ,Temp.Fault Code |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery |
| Overload | Beeping twice every second |
| UPS Fault | Beeping Continuously |
| Bettery low/charger fault | Beeping every 1 second |
| Bypass mode | Beeping every 2 min |
| L/N inverse | Beeping every 2 min |
| Communications | RS-232 Interface | With monitoring software. USB Option |
| working Environment | Working temperature | ,- 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| UPS | Product size WxDxH (mm) | 483 x 600 x 132(3U) | 483 x 600 x 132(3U) | 483 x 600 x 132(3U) | 483 x 600 x 132(3U) |
| Package Size WxDxH (mm) | 795*590*330 | 795*590*330 | 795*590*330 | 795*590*330 |
| Gross weight(Kg) | 27 | 28.5 | 34 | 35 |
| BP167 BAT Pack | Product size WxDxH (mm) | 483 x 600 x 132(3U) | N/A | 483 x 600 x 132(3U) | N/A |
| Package Size WxDxH (mm) | 795*590*330 | N/A | 795*590*330 | N/A |
| Gross weight(Kg) | 65 | N/A | 65 | N/A |
| BP207 BAT Pack | Product size WxDxH (mm) | 483 x 600 x 132(3U) | N/A | 483 x 600 x 132(3U) | N/A |
| Package Size WxDxH (mm) | 795*590*330 | N/A | 795*590*330 | N/A |
| Gross weight(Kg) | 74 | N/A | 74 | N/A |
| optional functions | ECO | optional |
| EPO | optional |
| SNMP | optional |
| REMARK | RT*k --- Standard Type, RT*Ks(-N)---- Long Time Type |
