| Prod Model: |
BM-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ratio: |
7.7:1 |
| Pole: |
4p or 6p |
| Shaft Module: |
M3, M3.5, M4 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
YS Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Variable Frequency Starting |
| Certification: |
CE |
| Brand: |
Brima |
Product Description
Brima specialize in manufacturing BMS electric chain hoist, BMG wire rope hoist, BM electric chain hoist, Crane geared motor, End carriage ,Manual chain hoist
Brima brand products include:
* BMS electric chain hoist from 125kg to 1ton
* BMG wire rope hoist from 3.2ton to 80 ton
* BM electric chain hoist from 250 kg to 50ton
* Crane geared motor
* End carriage
* Manual chain hoist

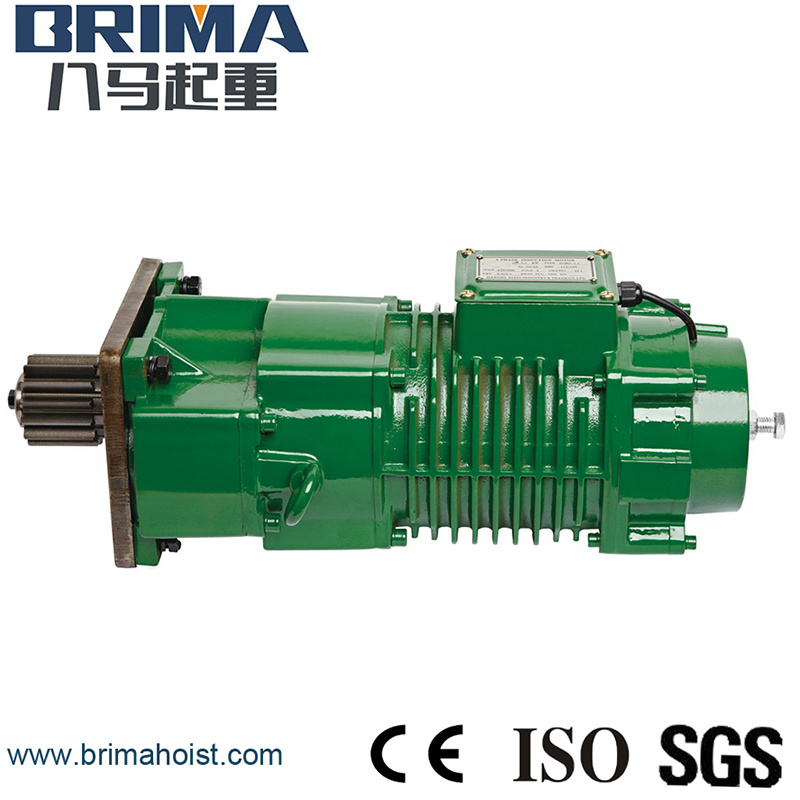

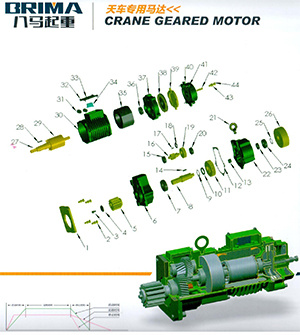

BRIMA Crane geared motor with Buffer :
1, Reduction gear
The gear box is made of hight stress cast iron (FC25), and manufacture by computer numerical control machinery (CNCLATHE & CNC machine center). The gear is of Ni-Cr-Mo alloy steel(SNCM220 & SCM415) with carburization process. The shaft is made by alignment and grinding. High accuracy, be durable and bumping. More than 5 times safety factor. Long working life
2, Buffer
When soft starting, and after fly wheel acting, the movement of high inertia is Produced. No impactness this keeps crane stable, smooth and noiseless to stabilize the brake.
3, Motor
High performance of start torque, motor body heat is easy to dissipation. High-pressure resisting more than 1500V, light current, compact size, powerful output, available for high frequency working.
4, Electromagnet brake
With direct-type electromagnet brake control can be adjustable with screw high abrasion brake leather, long service life, safety and never be falling off.

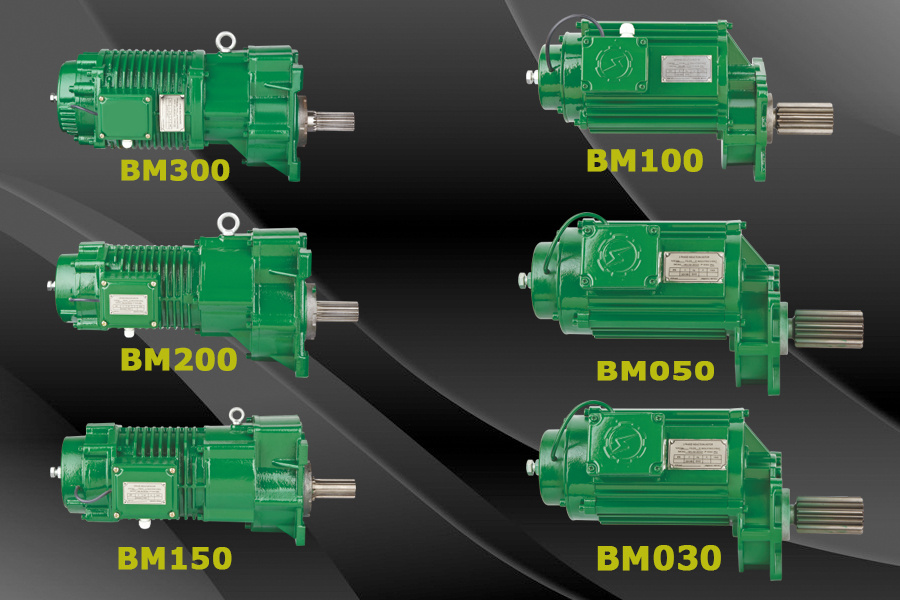

| Model | Power | Poles | Output Module | Gear Ratio | Speed | Voltage |
| 50HZ 60HZ |
|
| BM-050 | 0.4KW | 4P | M3 M3.5 M4 | 8.5:1 |
176r/min |
210r/min |
3P 380V
|
| 0.37KW | 6P |
115r/min |
140r/min |
| BM-050 QX | 0.75KW | 4P |
176r/min |
210r/min |
| 0.6KW | 6P |
115r/min |
140r/m |
FAQ: 1.What's your product range?
We are specialized in manufacturing electric chain hoist,european wire rope hoist,manual electric chain hoist,crane geared motor end carriage and etc.
2.When can I get the quotation?
There have mailbox and other contact ways in website,you can feel free to contace us.If we received your enquiry,we will contact you and ask you something important about the products that you really need,and then we will send you the quotation.
3.What information should I know if I want to get a quotation?
It is very important for customers to know the specifications that you want to purchase.So you should know the lifting height,model,pendant button and etc.So,we can send you the quotation.More details can be provided if you contact us.
4.Why you choose BRIMA?
Prompt reply for inquiry within 24hours;
High capacity and professional technology;
Strict delivery inspection guarantees;
After-sales service for you.
We will do our best to satisfy your needs.
BRIMA is a collection of hoisting & Crane research and development, design and manufacturing, sales and service as one of the emerging heavy industry enterprises for 20 years in England (BRIMA HOIST & CRANE Ltd ), Manufacturing plant are in China ( JIANGSU BRIMA HOISTING MACHINERY MANUFACTURING Co., Ltd )
On 2017, BRIMA acquired HANBLE( USA) company, who will mainly design and manufacture European crane kits ( Intelligent hoist, European wheel block, Robots and so on ) www.hanble.com or www.hanble.us
BRIMA inherits German advanced product design concept, perfect technological process and strict quality management and is committed to providing the products with first-class quality, leading performance and higher cost performance...The Company's products mainly include BMS European electric chain hoist, BMG European electric chain hoist, BM Japan type electric chain hoist, Crane gear motor, wheel block, Reducer, European wheel block, End carriage, Aluminium portable gantry crane, Jib crane, Single & Double girder crane, KBK, Rigid light crane. etc. BRIMA put advanced design and application concepts into practice, providing customers with lifting equipment with light self-weight, low headroom, safety and reliability, excellent performance, and efficiency.
Each year, BRIMA invests a large number of resources into the research and development of products so as to lead the market trend by technical innovation, to obtain customer's trust through the pursuit of quality, and consequently, to keep its products in the lead. BRIMA is committed to manufacturing electric hoists, light duty cranes and crane parts with the lifting capacity ranging from 125kg to 80t, which can meet customer requirements for a variety of operating conditions, providing customers with optimum solutions. The Company has established long-term cooperative relationship with China's & Oversea`s major crane factories from various aspects including technical solutions, technical exchange and product delivery and etc., enabling the Company to provide customers with one-stop service finally.
BRIMA all goods: Widely applied in equipment manufacturing industry, automobile industry, transportation and logistics, energy industry, metallurgy, shipping, and etc
