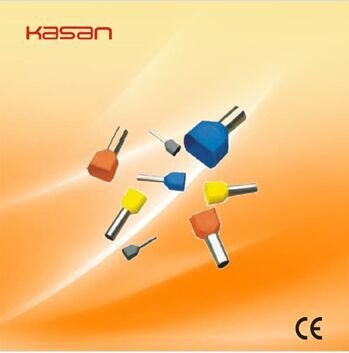

Crewel Tube Pre-Insulated Terminal&Preinsulation Terminal

Name: Crewel Tube Pre-Insulated Terminal&Preinsulation Terminal
Brand: all-electronics-online.com
SKU: 701271832
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	e1008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo, Shanghai, Other
Price:	FOB USD 0.005~0.10 / Piece
Model Number:	RV, Sv, BV, Ptv, Frd, Mrd, FDD, Mdd, Sc, Jgk, Ot
Delivery Time:	20-25 Days
Material:	Purple Copper

Product Description

1. Insulated and Non-insulated terminals

2. Cold press terminal

3. CE

Δ Terminals: High density copper, double -tin plated

Δ Insulation: PVC

Δ Plastic parts: Nylon

Δ Types available: RV, SV, BV, PTV, FRD, MRD, FDD, MDD, SC, JGK, OT, UT

RV series, RNB series, SV series, SNB series, V series, PTV series, PTN series, MPD series, FRD series, FDD series, MDD series, FDFD series, DBV series, PBDD series, BV series, BN series, E series, TE series, EN series, SC cable lugs series, GTY series

E1008 copper crimping terminals connector
1.product description

Type	Insulated cord end Terminals
Material	Purple copper,PVC,Nylon for your reference.Full size with high quality products
Plating	Tin
Thickness	Thickness:0.7mm,0.8mm,1.0mm
Insulation	PVC, NYLON
Color	Red, Blue Yellow, Black,Grey
Working Temp	-40 to +105 ° C
Cable Range	A. W.G.:22-16 (0.5-1.5mm ² ),16-14(1.5-2.5mm ² ), B. 14-12(2.5-4mm ² ), 12-10 (4-6mm ² )
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	D.also can order in alibaba or aliexpress
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Supply Ability	3 x 20 feet containers per week
Packag e Details	A.Common Pack age :100pcs + polybag + label + inner box+ export carton
	B.Customized Pack age :OEM Label,Inner Box,
Origin Place	Zhejiang, China
Test Report	REACH, ROHS .CE,UL
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port

2. Products details

ITEM.NO.	DIMENSION						CLNLE SQ		INSULATION COLOR
	F(mm)	L(mm)	W(mm)	B(mm)	D (mm)	C (mm)	A.W.G	mm 2
E0506	6	12	2.6	6	1.3	1	#22	0.5	Oranage
E0508	8	14
E0510	10	16							White
E0512	12	18
E7506	6	12.4	2.8	6.4	1.5	1.2	#20	0.75	White
E7508	8	14.6
E7510	10	16.4							blue
E7512	12	18.4
E7518	18	24.4
E1006	6	12.4	3	6.4	1.7	1.4	#18	1	Yellow
E1008	8	14.6
E1010	10	16.4							red
E1012	12	18.4
E1508	8	14.6	3.5	6.4	2	1.7	#16	1.5	Red
E1510	10	16.4
E1518	18	24.4							black
E2508	8	15.2	4	7	2.6	2.3	#14	2.5	Blue
E2512	12	19
E2518	18	25							grey
E4009	9	16.5	4.4	7.5	3.2	2.8	#12	4	Grey
E4012	12	19.5
E4018	18	25.5							Oranage
E6012	12	20	6.3	8	3.9	3.5	#10	6	Black

E6018	18	26							green
E10-12	12	21.5	7.6	9.5	4.9	4.5	#7	10	Milky white

E10-18	18	27.5							brown green
E16-12	12	22.2	8.8	10.2	6.2	5.8	#5	16	Green

E16-18	18	28.2							Milkty white
E25-16	16	29	11.2	13	7.9	7.5	#4	25	brown green

E25-22	22	35							black
E35-16	16	30	12.7	14	8.7	8.3	#2	35	Greyish brown
E35-25	25	39
E50-20	20	36	15.3	16	10.9	10.3	#1	50	Olive
