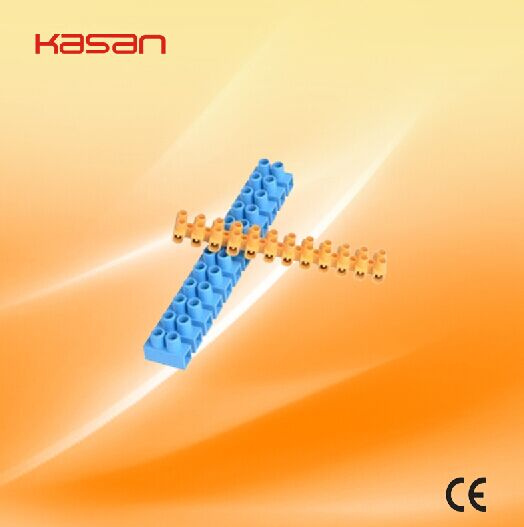

H Type PVC Terminal Block

Name: H Type PVC Terminal Block
Brand: all-electronics-online.com
SKU: 703886372
Availability: InStock
Rating: 4.8 (64 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	h
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material.:	PE,PP,PA
Color:	White,Black Blue
Delivery Time:	20-25 Days
Material:	Purple Copper

Product Description

Plastic Terminal block

Type: H W

Material: PE, PP, PA

Item : 3A-150A

Detailed Information of 2013 Hotsale PVC Terminal Blocks

Type:	H & U
Material:	PE, PP, PA
Material:	Galvanized Iron
Working Temp:	-40°C - 65°C
Color:	Natural, Black, other color customized
Model	3A-2,5mm² - 100A-40mm²
MOQ	Small orders can be accepted.
Payment term	A. L/C; T/T (Bank Transfer, Wire Transfer)
	B. Western Union
	C. Paypal (For Sample Fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo; CIF, CNF, etc
Delivery time	Stock is available. 15-25 working days (Up to your order quantity) for mass production.
Supply ability	4×20-feet containers per week.
Packaging details	A. Common Packing: 10Pcs + Heat Shrink Film + Label + Export Carton
Packaging details	B. Customized Packing: OEM Label, Inner Box, Blister, etc.
HS Code	8536900000
Origin country	Zhejiang, China
Certification	RoHS, REACH, CE

Data Sheet of 2013 Hotsale PVC Terminal Blocks

Item no.	Spec.	Length	Width	High	Brass Hole Dia	Screw Size	Plastic
Item no.	Spec.	mm				Screw Size	Plastic
BT011-28	3A-4mm²	91.4	15.6	10.8	3	M2.5 x 4	PE PP PA
BT011-29	6A-6mm²	112.5	15.5	12.8	3.3	M3.0 x 5	PE PP PA
BT011-30	10A-10mm²	128	20.6	15	4.2	M3.0 x 6	PE PP PA
BT011-31	15A-12mm²	137.3	22.5	16.6	4.5	M3.5 x 7	PE PP PA
BT011-32	20A-14mm²	137.5	22.7	17.7	4.7	M4.0 x 6.5	PE PP PA
BT011-33	30A-16mm²	164.5	25.3	19	5.6	M4.0 x 7	PE PP PA
BT011-34	60A-25mm²	185.5	29.2	24	6.6	M4.0 x 9	PE PP PA
BT011-35	80A-35mm²	204.5	32.6	27.2	7.8	M5.0 x 11	PE PP PA
BT011-36	100-40mm²	250	45.6	30.6	9	M6.0 x 12	PE PP PA
