CRI 95 1W 3W High Power LED Diode for Studio Light Film Lighting

Name: CRI 95 1W 3W High Power LED Diode for Studio Light Film Lighting
Brand: all-electronics-online.com
SKU: 831760915
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	US $ 0.16/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-P02
CCT:	2600-7000K 7000-9000K 9000-25000K
Current:	350mA 750mA
Volt:	2.8-3.4V 3.2-4.0V
Dimension:	3.55*3.55mm
Chip Brand:	Bridgelux Epistar
Junction Temperature:	120 °c
Operating Temperature:	-40-60 °c
Certificate:	Lm-80 RoHS En62471
Material:	Red Copper Base + Pure Gold Wire
PCB:	Star PCB Available
Usage:	High Bay Light, Flood Light, Wall Washer
Power:	1W
Life:	50000h
LED Chips:	Bridgelux
Certification:	Lm-80 En 62471 IEC 62471
IP Rating:	N/a Anti ESD
Power Source:	AC-DC Driver
Lamp Holder Type:	Red Copper Base
Housing Material:	Plastic + Red Copper

Product Description

CRI 95 1W 3W High Power LED Diode for Studio Light Film Lighting

Product Features

LM-80 6000H Real Test. Easier to Obtain DLC.
Superior Quality Raw Material; Branded Chips Bridgelux & Epistar.
Extremely Low Light Decay & High Luminous Efficacy.
First Choice for Outdoor Lighting. (Flood Light, High Bay Light, Street Light,etc)
Red copper base with 1.2mil pure gold wire
Bridgelux Chip Epistar Chip applied since 2005

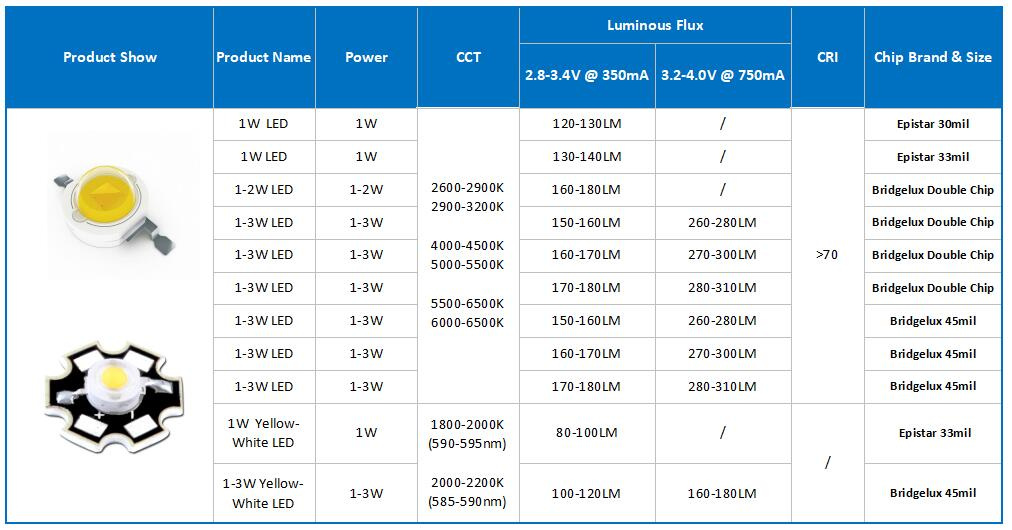

Specifications

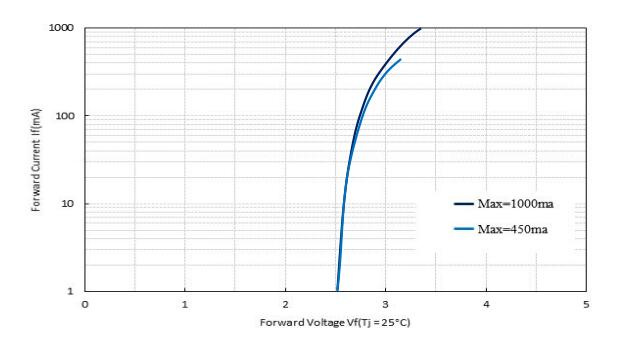

Electrical Features

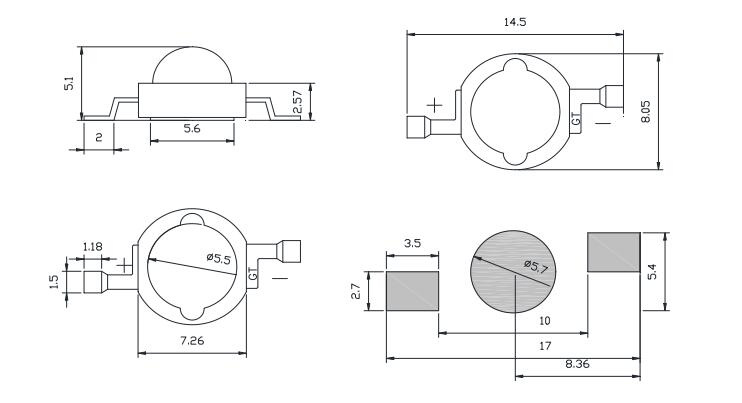

Dimension

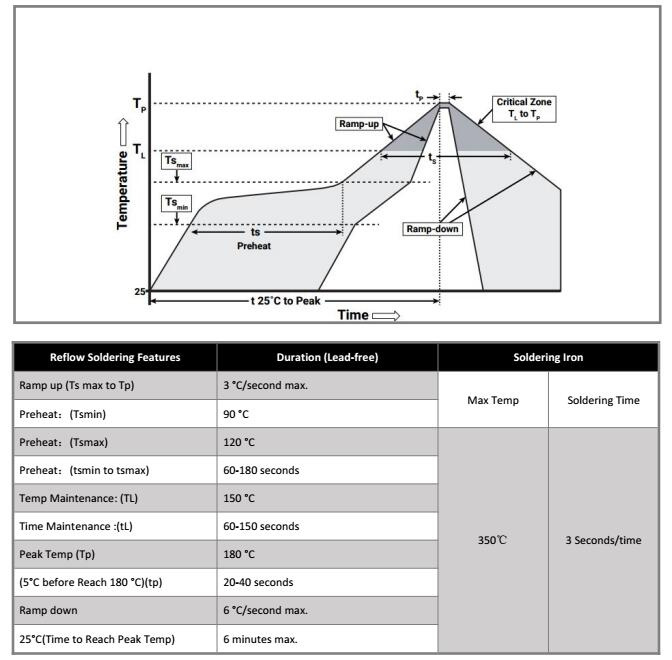

Reflow Soldering Features

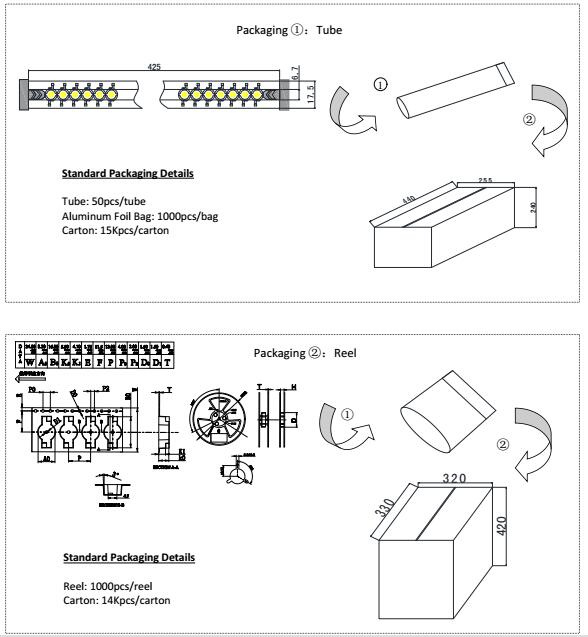

Packing Details

Company Overview

Shenzhen Getian, established in 2005, is a professional and innovative integrated led manufacturer specializing in high power led & COB packaging, LED drivers, industrial lighting and molding.

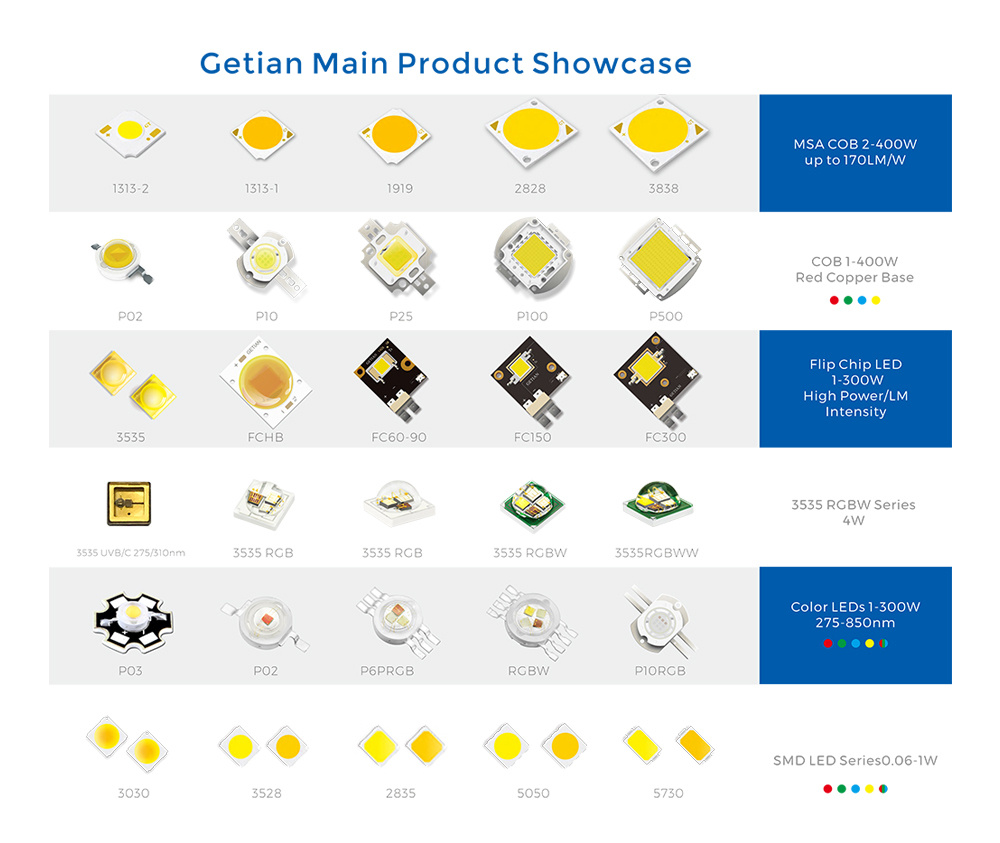

Product Range:

3-400W MSA COB Series

10-400W Copper COB Series

3535 RGB & RGBW Series

Color LEDs 280-850nm Series

Flip Chip LEDs 60-300W

SMD LED Series

LED Drivers 8-150W

Industrial Lights (High Bay/Flood Light/Street Light)

Our Service:

PCB design & Reflow soldering service

COB/LED/Drivers customization

Mold development (Plastic injection & Die casting)

Representatives in the UK, Korea and Czech.

* ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.

Please feel free to contact us for more details or visit our website www.getiangroup.com

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.
