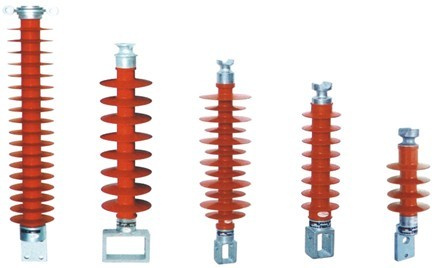

Cross-Arm Composite Insulator

Name: Cross-Arm Composite Insulator
Brand: all-electronics-online.com
SKU: 707675625
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 28/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage: 10kv-110kv:	Power Frequency Witstand: 45-230kv
Structure:	Strain Insulator
Material:	Composite Polymer
Type:	A Type Insulator
Application:	High-voltage
Size Of Bearing Capacity:	10kn
Brand:	Refine

Product Description

Model No.: FS Series
Material: Silicon Rubber / Polymer
Rated Voltage: 10~110KV
Standard: IEC61109

This series product are composed of silicon rubber for sheds/ housing, glass-fiber reinforced epoxy resin rod core and hop DIP galvanized metal fittings. It has good mechanical performance and electric performance compared with porcelain insulators.

We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.

For your reference under below is the main technical parameter of each model type.

Type	Rated Voltage (KV)	Rated Mechanism Stretch Withstand (KN)	Structural Height (mm)	Min Arc Distance (mm)	Creepage Distance (mm)	Lighting Impulse Withstand BIL (KV)	Power Frequency Withstand (wet) (KV)
FS-10/2.5	10	2.5	250	180	380	95	45
FS-35/5	35	5	610	500	1200	230	105
FS-110/10	110	10	1260	110	2760	550	230

Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
