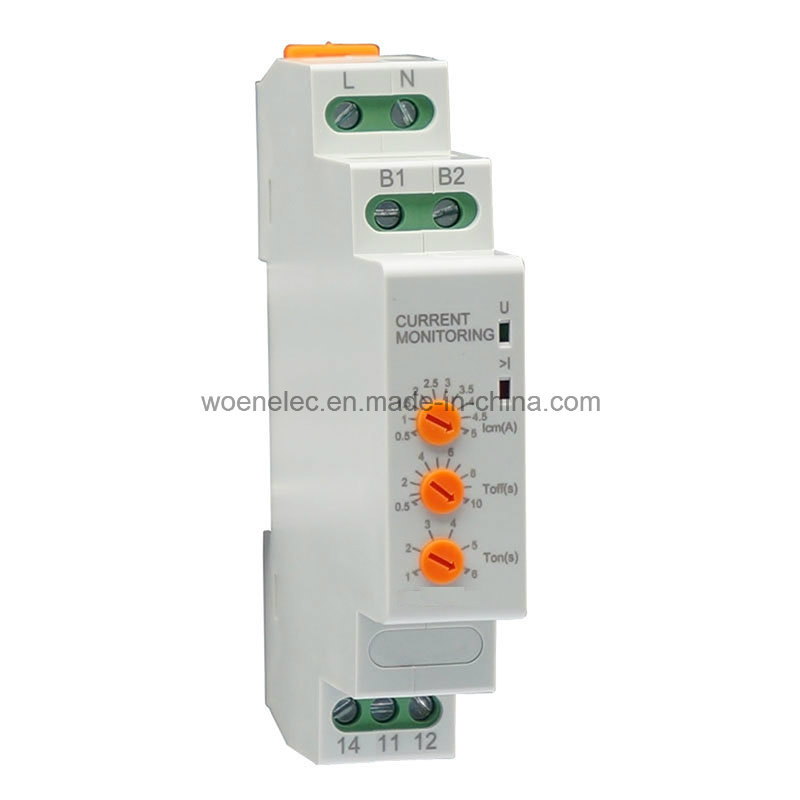

Current Monitoring Relay

Name: Current Monitoring Relay
Brand: all-electronics-online.com
SKU: 714325542
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 7.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CMR-5A

Product Description

Introduction
The relay measure the current of motor or protected systems and turn them off when measured current is above/below the adjusted threshold value.

When the current value is within the preset limits, the output relay switches ON; when the current is out of limits,
the output relay switches OFF after an adjustable trip delay.

Features
1. Microprocessor control technology
2. One modules, 18mm wide
3. Current actuation threshold adjustable
4. Trip and reset/start delay adjustable
5. Possible to use for scanning of current from current transformer up to 600A
6. LED indication for power supply and relay status
7. Din-rail mounting

Technical data

Supply terminals	L,N
Rated supply voltage	AC 220V
Current input terminal	B1-B2
Current actuation threshold	0.5A-10A
Hysteresis	5%
Start-up delay	1s-6s
Output contact	1C/O
Current rating	8A/250V AC1
Measurement error	1%
Insulation voltage	250V
Max. fuse ratings	Fast-acting 5A
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
