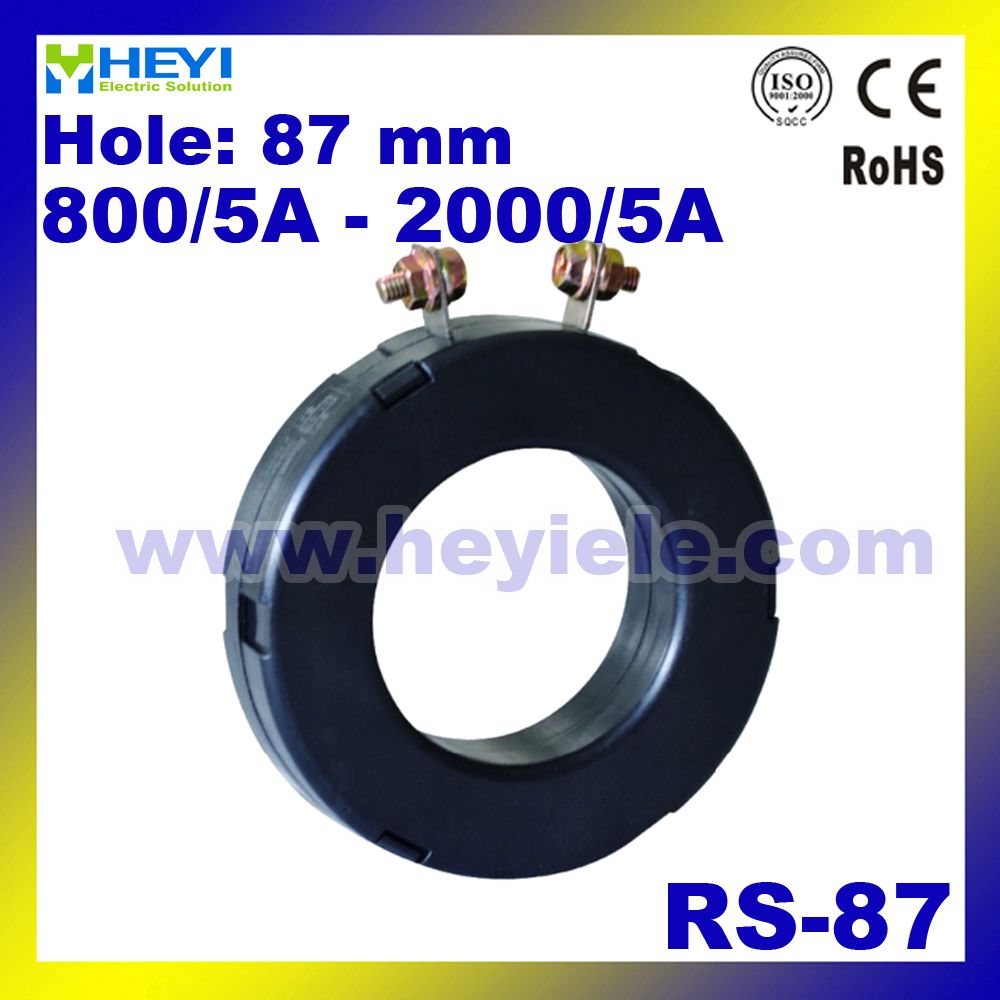

Current Transformer Manufacturer RS-87 Protection Current Transformer 87mm Inner Hole AC Current Sensor

Current Transformer Manufacturer RS-87 Protection Current Transformer 87mm Inner Hole AC Current Sensor
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: RS
Application: Position Sensor
Type: Current Transformer
Phase: Single

Product Description

RS series current transformer

Feature
1:Safe, easy to install, portable
2:Wide inner window, allowing clamping of big cables or bus-bars
3:Wide range of sizes to accommodate all the existing installation.

Application
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor, heating and ventilation     system,
3:Current, power and energy monitoring device.
4:Relay protection device.

STANDARD
IEC6044-1, EN60044-1, VDE0414-44-1, GB1208-2006

Technical Index
Rated Frequency50/60Hz
Withstand voltageAC3kV(1min)
Rated thermal current60ln
Dynamic stability current2.5lth
Rated voltage AC0.72KV
Burden1.2ln
Operating temperature range-10°C-50°C
Prevent combustion levelV0
Accuracy limit classFS5
Secondary current5A,1A

Technical Parameter
PictureTypeCurrent ratioBurden(VA)Packing for carton
Accuracy class:0.5Accuracy class 1.0
 RS-3030/51(2T)140
40/51(2T)140
50/51.5(2T)1.540
75/511.540
80/511.540
100/51.52.540
125/51.52.540
150/51.52.540
PictureTypeCurrent ratioBurden(VA)Packing for carton
Accuracy class:0.5Accuracy class 1.0
 RS-40100/53.757.530
125/557.530
150/557.530
160/557.530
200/551030
250/551030
300/57.512.530
PictureTypeCurrent ratioBurden(VA)Packing for carton
Accuracy class:0.5Accuracy class 1.0
 RS-50300/5101530
400/5151530
500/5152030
600/5152030
800/5202530
PictureTypeCurrent ratioBurden(VA)Packing for carton
Accuracy class:0.5Accuracy class 1.0
 RS-65500/5151540
600/5152040
800/5152040
1000/5152040
1200/5152040
1500/5152040
1600/5152040
PictureTypeCurrent ratioBurden(VA)Packing for carton
Accuracy class:0.5Accuracy class 1.0
 RS-87800/5202030
1000/5202530
1200/5202530
1500/5202530
1600/5202530
2000/5203030
PictureTypeCurrent ratioBurden(VA)Packing for carton
Accuracy class:0.5Accuracy class 1.0
 RS-1101500/5202024
1600/5202524
2000/5202524
2500/5303024
3000/5303024
3200/5303024
PictureTypeCurrent ratioBurden(VA)Packing for carton
Accuracy class:0.5Accuracy class 1.0
 RS-1403000/5303024
3500/5303024
4000/5304024
5000/5305024
6000/5305024
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
