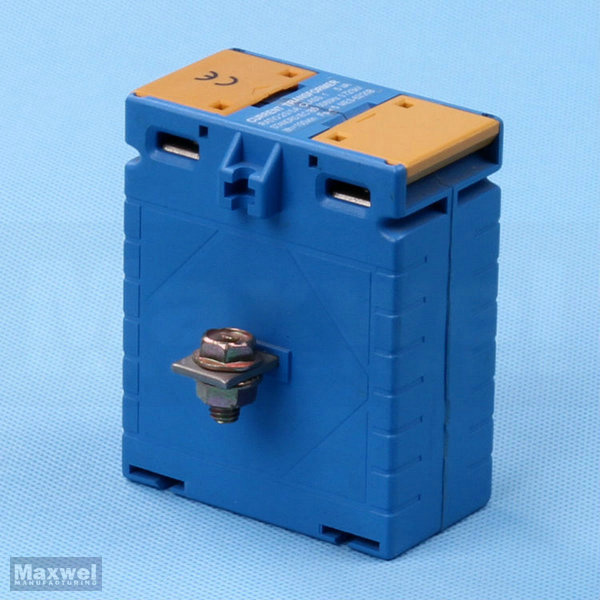

Current Transformers 5A for America

Prod Model:	MES-80/40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Blue
Class:	0.5/1.0
Primary Current:	5A-3000A
Frequency:	50/60Hz
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

MES current transformers, railtype current transformer

This series of CT can be applied to test, control. Display and record the running of the electrical equipment, and to protect the equipment against the damage. In the AC circuit with the raled voltage value below 720V and the frequency of 50-60Hz. The product can be also applied to form a complete of mine transformer.
The products comply with VDE 0414, BS7626 and IEC 44-1 standard.

Primary current: 5A-3000A
Secondary current: 5A, 1A
Standary approval: VDE0414, BS7626, CT IEC 44-1 standard
Maximum voltage: 0.72/3kv
Frequency: 50-60Hz
Rated load: 2.5VA, 5VA, 10VA, 15VA
Class: 0.5, 1.0
Short-time thermal current: 1th=60X1h
Rated security coefficient: FS<5


Type	Rated      current   (A)	Rated power(VA)
		Class: 0.5	Class: 1
MES-80/40	100/5	1.5	2.5
	150/5	2.5	5
	200/5	5	5
	250/5	5	5
	300/5	10	15
	400/5	10	15
	500/5	10	15
