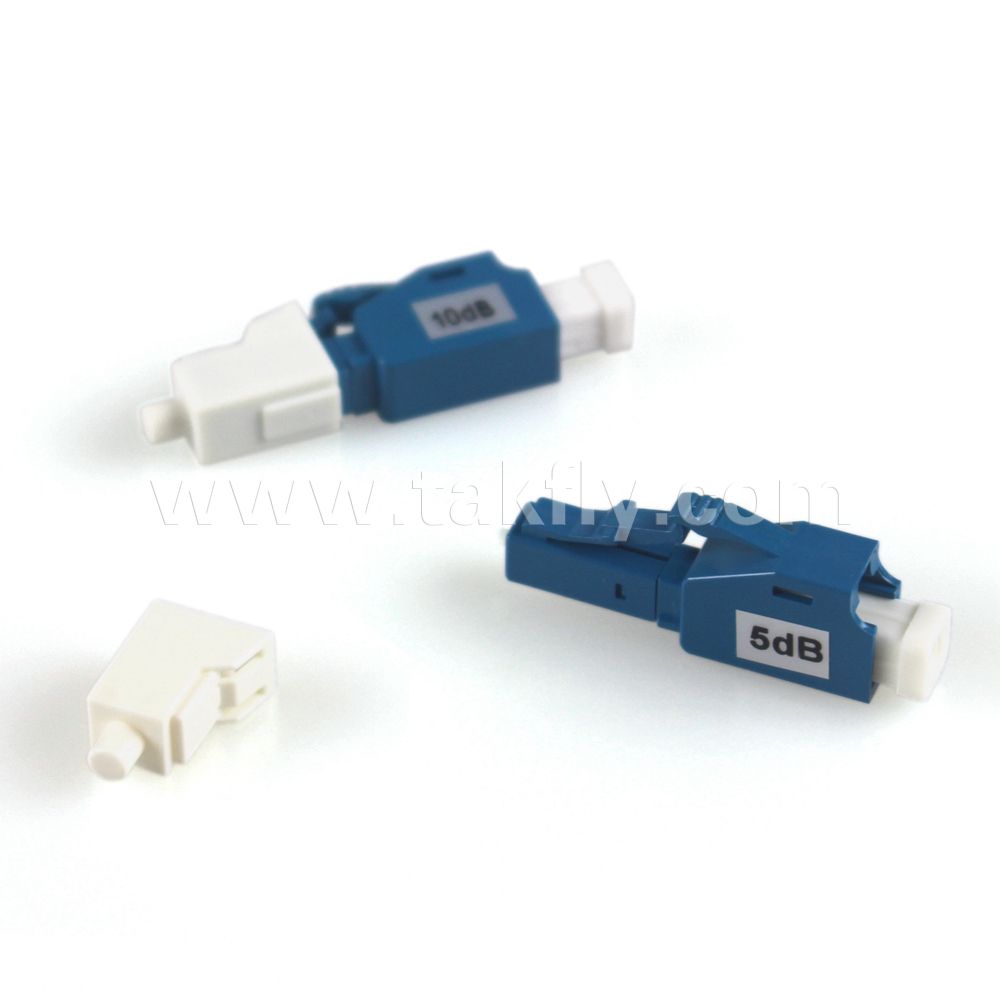

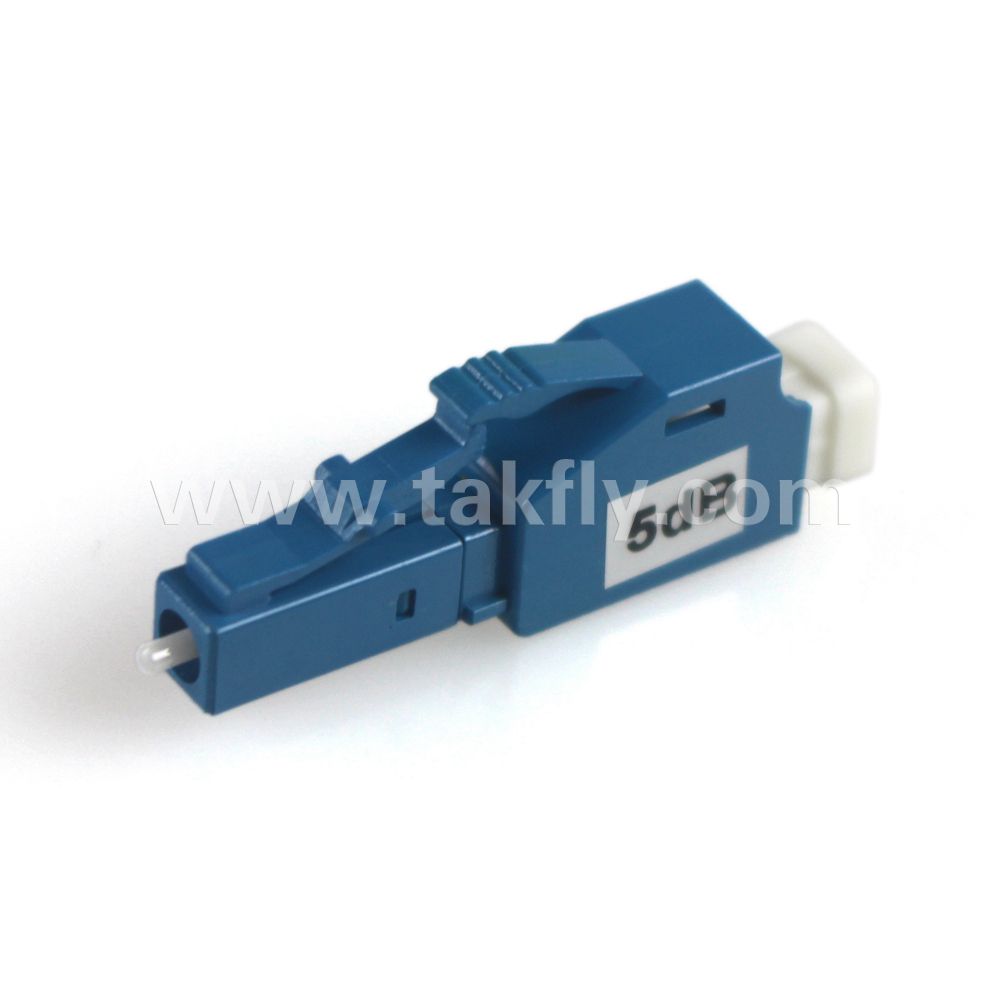

Customized 0-25dB Fixed LC M-F Sm Fiber Optical Attenuator 5dB 10dB
| Price: |
US $ 1-10/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LC fiber optical attenuator |
| Item Name: |
LC Fiber Optic Attenuator |
| Keywords: |
Fiber Optic Attenuator/LC Attenuator |
| Attenuation Range: |
0-25dB |
| Polish Interface: |
Upc or APC |
| Working Type: |
LC Male to Female |
| Working Temperature: |
-40~85c |
| Customzied: |
Available |
| Transmission Medium: |
Single-Mode |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

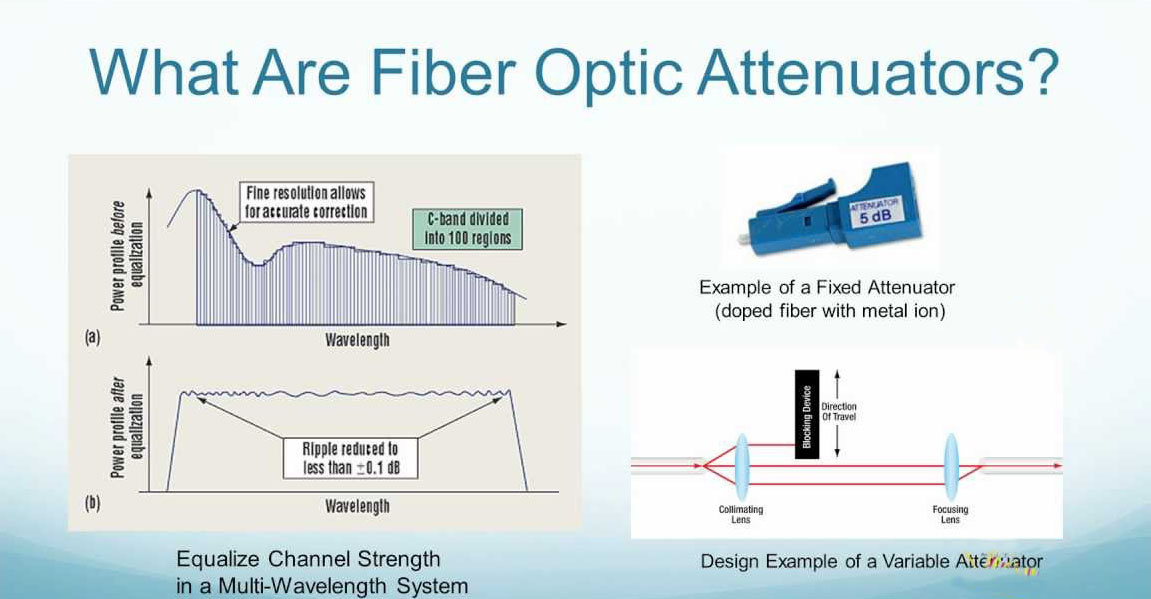

Customized 0-25dB fixed LC M-F Sm Fiber Optical Attenuator 5dB 10dBLC Fiber optic Attenuator is generated by attenuating fiber and provides a controlled attenuation over a very broadband width.The low return loss and high temperature range ensure excellent performance in the nist demanding applications.Fixed type and variable type also available.
Plug-in fixed attenuator are mainly used for adjusting the optical power to a desired level.By using metal-ion doped optical fibers,the plug-in fixed attenuators convert optical power into heat and the power is then attenuated inside the devices.The structures of the plug-in fixed attenuators are simple and the power-proof and performance stability is superior when compared to our competitor's products that utilize a metal membrane.We offermutilple options including SC,LC,ST,FC,and MU connector types and definable attenuator values from 1dB to 30dB.They are available in single mode ad mutil mode.
Takfly LC/UPC Plug Type Fixed Attenuator family offers high performance of variously fixed attenuation for industrial standard connections. Wide attenuation range, extremely low return loss, polarization insensitive, and excellent repeatability. With our highly integrated design and manufacturing capability, Takfly can also provide customized products to help our customer for better opportunities. Our attenuator complies with industry green initiative such as ROHS.
Features- Wide Attenuation Range
- Low Return Loss
- Low PDL
- Polarization Insensitive
- Various connector type
- Highly Reliable
Applications - FTTH, LAN, PON & Optical CATV
- Local ring net
- Optical fiber communication system
- Optical fiber test equipment
- Optical fiber network
Technical Specification | |
| Type | Parameter | UPC | APC | MM |
| Insertion Loss | SM:1310nm/1550nm MM:850nm/1300nm | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | SM:1310nm/1550nm MM:850nm/1300nm | ≥55 dB | ≥60 dB | ≥35 dB |
| Duration | >1000 | <0.1 dB |
| Tensile Strength | >100N | <0.1 dB |
| Operating Temperature(ºC) | -40~+85 |
| Storage Temperate (ºC) | -40~+85 |
| Tolerance | DB Value≤5 dB =±0.5&DB Value≥5 dB =±DB*10% |
Why Choose Takfly? 1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
Any question about LC fiber optical attenuator,please leave me an inquiry or contact me directly.
