| Prod Model: |
HBGQ16F-10E/A |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
16mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik10 |
| Crust Material: |
Nickel-Plated Brass |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
X |
| Brand: |
Hban |
Product Description

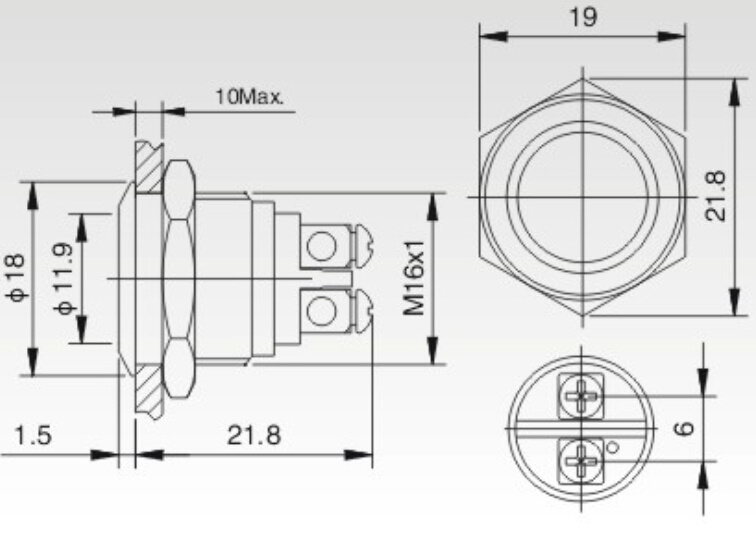

Customized body color yellow alluminum 16mm led ring light switchPremeters:Mounting hole size:dia.16mm
Switch Rating:2A/36VDC
Operation Type:IP65, (IP40 Can be made to order)
Switch Configuration:1NO
Contact Material: Stainless Steel , Nickel-plated Brass ,
| Specifications | HBGQ16F-10E/J/A | HBGQ16F-10EZ/J/A |
| The Front Shape | Flat Round | Flat Round |
| Switch Configuration | 1NO |
| Switch Rating | 2A/36VDC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100 MΩ |
| Contact between lamp bead terminal | 1500V AC |
| Between same calss terminals | 1000V AC |
| Between different electrode terminal | 2000V AC |
| Operating Temperature | -25°C ~ +55°C |
| Mechanical Life | 200,000 times |
| Electrical Life | >30,000 times |
| Protection Degree | IP65 |
| Lamp Type | AC LED Lamp (Standard) |
| LED Rated Voltage | AC/DC 6V,AC/DC12V,AC/DC/24V,AC/DC110V,AC/DC220V |
| LED Color | Red,Green,Yellow,Orange,Blue,Whie,Black,Hyaline |
| LED Lifetime | About 40,000 hours |
Packing Details:We pack 40 pieces diameter 16mm signal lamp into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

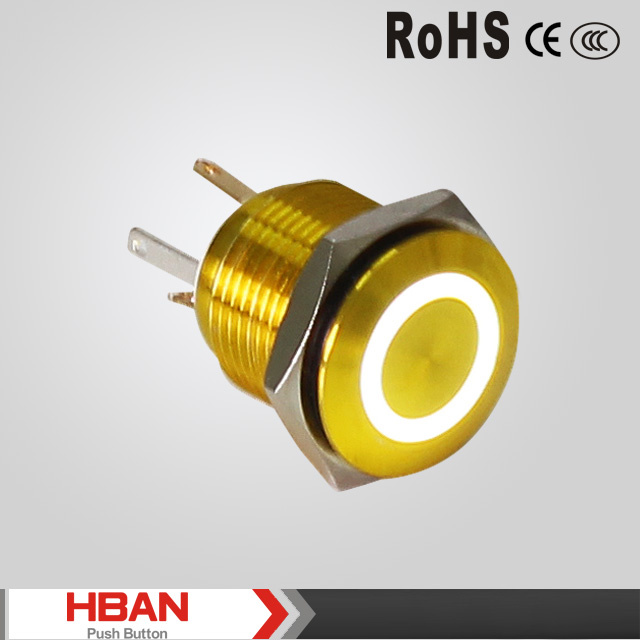

Poducts pictures
Production line

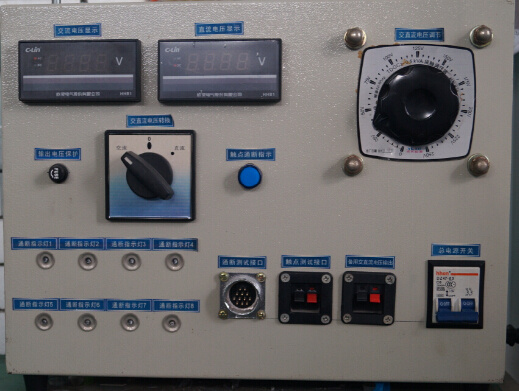

Testing
Appilcation
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
FAQ:
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
Within 15 days
Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button
switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.
