Customized Ceramic Band Heating Element

Name: Customized Ceramic Band Heating Element
Brand: all-electronics-online.com
SKU: 731045305
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 3-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ceramic heating element
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheath Material:	Stainless Steel 304
Insulators:	High Grade Steatite Ceramic Insulators
Heating Wire:	Nickel Chrome Wire
Min Diameter:	60mm
End Terminal:	Optional
Heat Transfer Surface:	Plate Heat Exchanger
Principle:	Regenerative Heat Exchanger

Product Description

Customized ceramic heating element

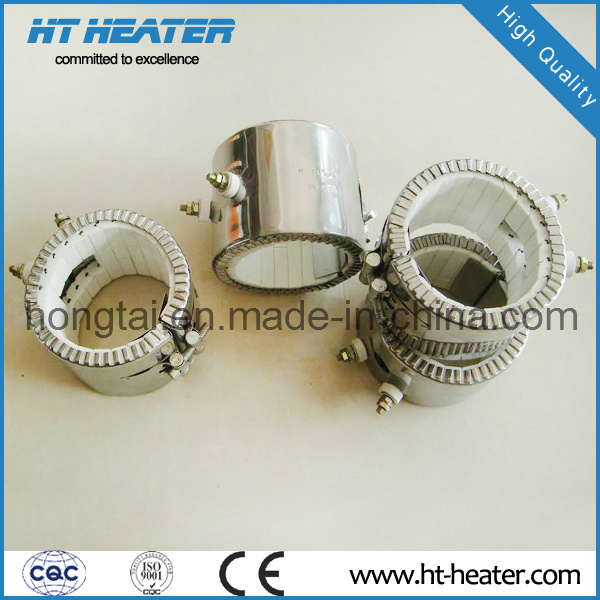

Ceramic band heater
Durable, ceramic band heaters provide excellent energy efficiency with their built-in ceramic fiber jackets. Unlike mica band heaters, ceramic heaters transfer heat through conduction and radiation and do not require tightening around the cylinder. Flexible, these heaters come in a wide variety of terminal styles, and with different clamping mechanisms, holes and cutouts.

Features
1, Nickel-chrome wire in a outer wall composed of interlocking ceramic tiles
2, Inside medium-high temperature heaters up to 1200° F
3, Outside shell temperature: 350° - 450° F
4, Built-in ceramic fiber insulating mat
5, Stainless steel jacket
6, Minimum diameter: 60mm
7, Minimum width: 25.4MM
8, Thickness: 12mm
9, Broad range of terminal types and thicknesses of ceramic fiber insulation mats

BENEFITS
Energy efficient
Energy saver
Highly flexible
Durable
Maintains heat
Provide uniform heat distribution
CSA, CE and UL certified

APPLICATIONS
Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications

When ordering please specify:
1, Inside diameter and width of the heater
2, Construction type
3, Wattage and voltage

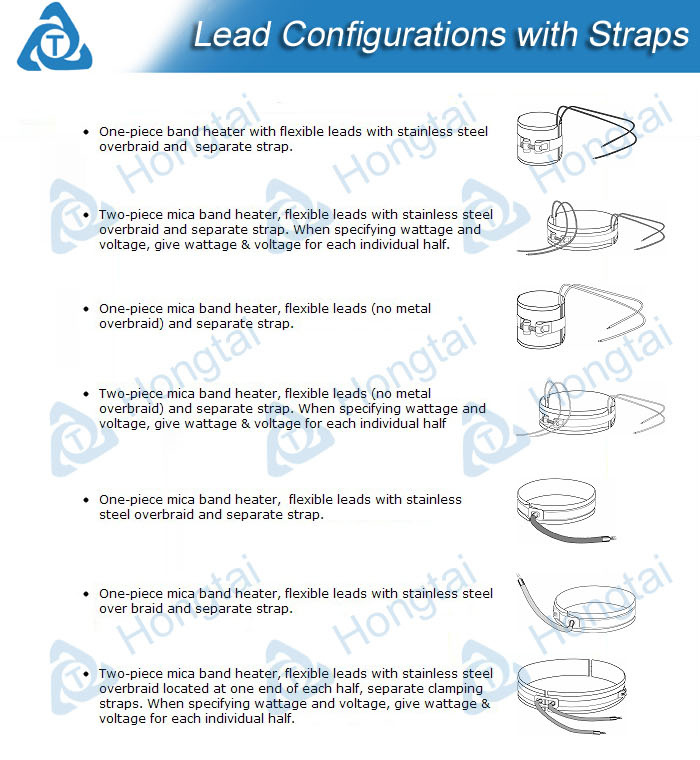

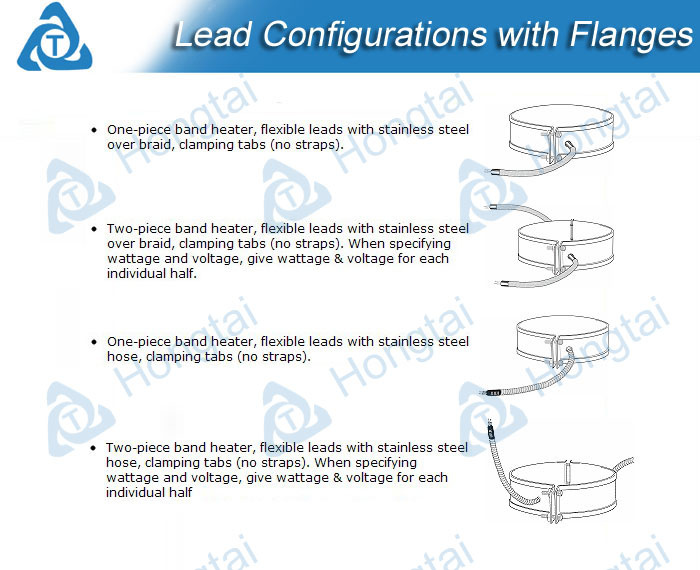

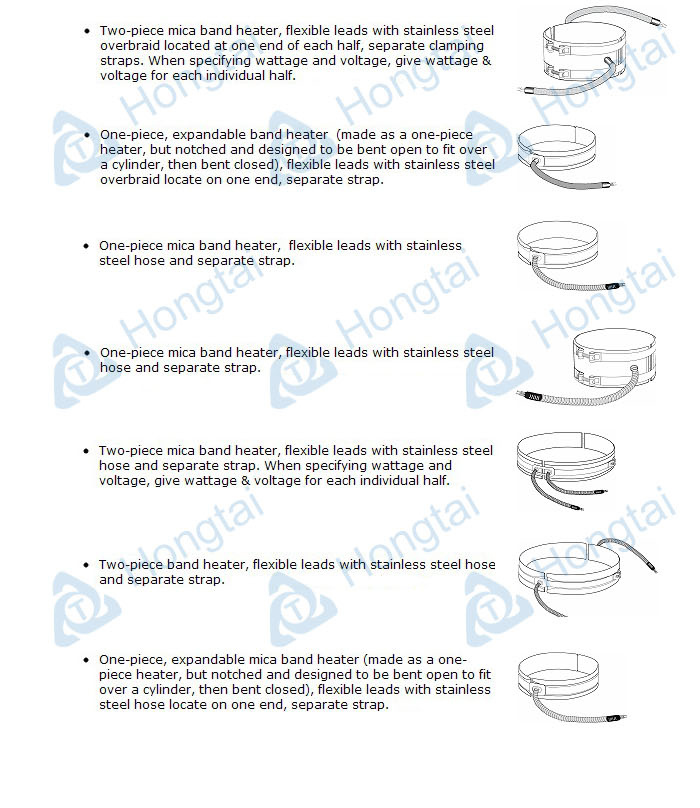

4, Type of terminal
5, Drawing where special type of holes or cutouts required

Industrial Heater	Extruder Band Heater
1	Injection molding
2	Blow-molding
3	Plastic extrusion
4	Container, pipe, or tank heating
5	Pharmaceutical applications
6	Applications in the food industry
