Cutout High Voltage Fuse Drop out Xm-1

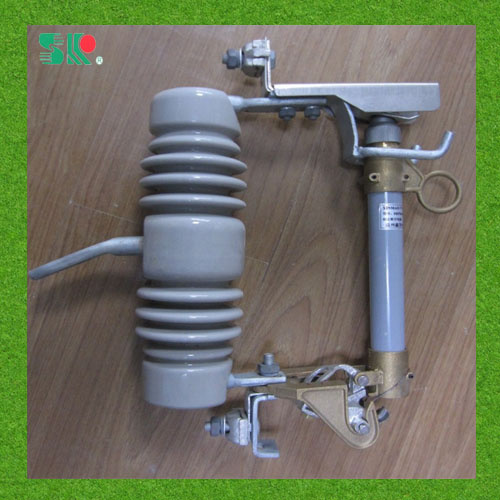

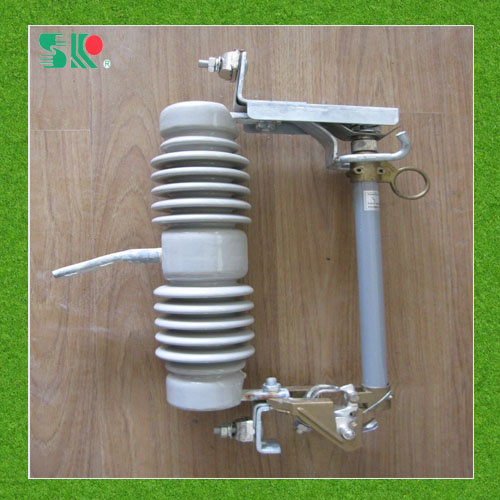

Name: Cutout High Voltage Fuse Drop out Xm-1
Brand: all-electronics-online.com
SKU: 737143155
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM -1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage 12kv:	Rated Current up to 100/200A
Breaking Capacity:	High
Usaga:	High Voltage
Standard:	IEC282-1
Type:	Cut out Fuse
Fusing Device:	Fuse Tube

Product Description

Export types porcelain power cutout fuse is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. XM series mainly protect transformer or lines from short circuit and over load, and on/off loading current.

Basic information:

Model number:XM-1                            Type:fuse
Rated Voltage:12kv                             Rate current:100A/200A
Breaking Current:6300A/10000A        Impulse Voltage:110BIL
Leakage Distance:230mm                   Sample:Available

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
