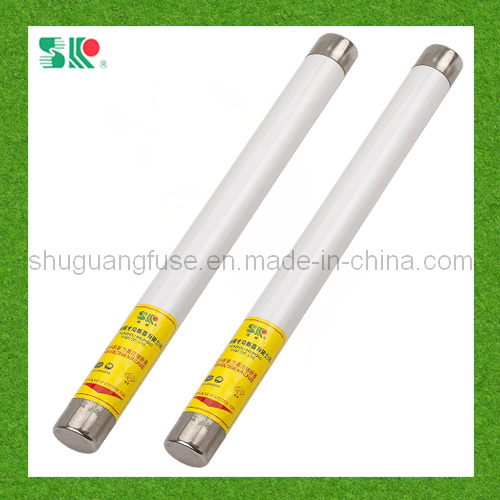

Cylindrical High Voltage Ceramic Fuse (XRNP6) (XRNP6-35kV)

Prod Model:	XRNP6-35kV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain, Epoxy Resin
Color:	White, Green
Length:	400, 440mm
Diameter:	30, 40mm
Rated Voltage:	35kv, 40.5kv
Rated Current:	0.5A~3.15A
Operation:	Manual Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Type:	Fuse
Breaking Capacity:	High Voltage Circuit Breakers

Product Description

Applications

H. V HRC current-limiting fuses type XRNP for transformer protection is mainly used in AC 50Hz, rated voltage 3.6-40.5KV, rated current up to 6.3A circuit for protection transformers from overload and shirt-circuit.
It conforms to IEC282-1, BS and GB15166.2.

Desing Features

XRNP type H. V HRC current-limiting fuses is insert installation. It is convenient for install and removal.

The fuse link made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with chemically treated high-purity quartzsand.

The fuse tube is made from heat tesistance, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link melts causing arc, quartz sand dxtiguish the arc immediately, signaling the melting or automatically cutting the circuit.
