Czl601 3kg Micro Sensor for Weighing Scales

Name: Czl601 3kg Micro Sensor for Weighing Scales
Brand: all-electronics-online.com
SKU: 804798065
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 2-15/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CZL601
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Czl700d Micro Load Cell
Rated Load:	3-120kg
Comprehensive Error:	±0.02/±0.017
Output Resistance( Ohm ):	350+/-3
Ultimate Overload (%F.S):	150
Safe Overload (%F.S):	120
Excitation Voltage(V):	9~12(DC)
Pattern:	Parallel Beam Type

Product Description

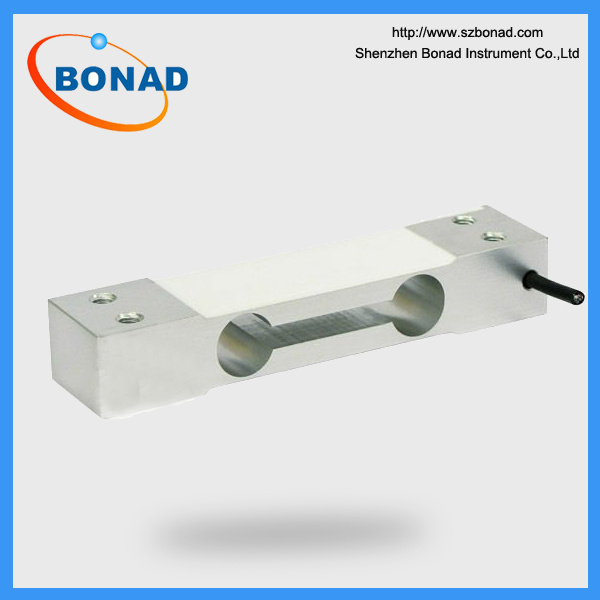

CZL601 3kg micro sensor for weighing scales

Rated load (kg): 3,5,6,10,15,20,30,40,50,60,100,120

Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Parameters: RATED LOAD(KG): 3,5,6,10,15,20,30,40,50,60,100,120
Precision : C2/C3		Temp. effect on span(%F.S/10deg C): ±0.02/±0.014
Comprehensive error(%F.S) : ±0.02/±0.017		Temp. effect on zero(%F.S/10 deg C ) : ±0.03/±0.017
Rated output(mv/v) : 2.0±0.2		Compensated temp. range(deg C ) : -10~+40
Creep(%F.S/30min) : ±0.02/±0.017		Use temp. range( deg C ) : -20~+60
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9~12(DC)
Input resistance(ohm) : 405±10		Safe overload (%F.S) : 120
Output resistance( ohm ) : 350±3		Ultimate overload (%F.S) : 150
Insulation resistance(M ohm ) : ≥5000(100VDC)		Defend grade : IP65

Wiring schematic diagram:

Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)

What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
How to contact us ?

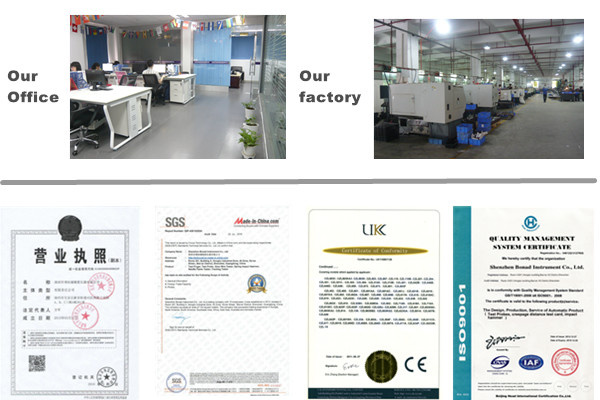

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
