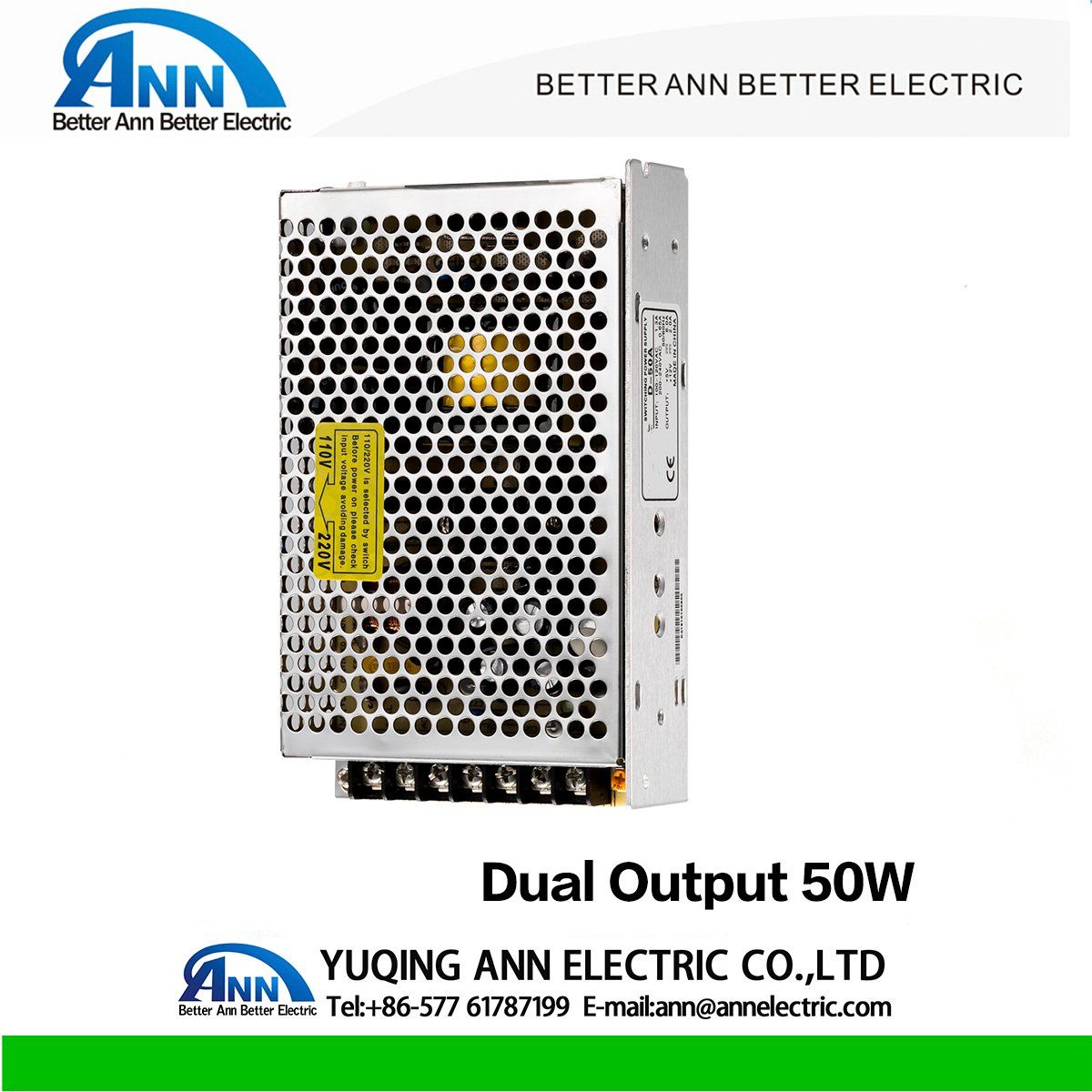

D-50W Dual Output CCTV LED Switching Power Supply, Switching Power Supply, LED

Name: D-50W Dual Output CCTV LED Switching Power Supply, Switching Power Supply, LED
Brand: all-electronics-online.com
SKU: 839582595
Availability: InStock
Rating: 4.7 (56 reviews)

Price:	US $ 10.5-12/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-50
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

50W Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

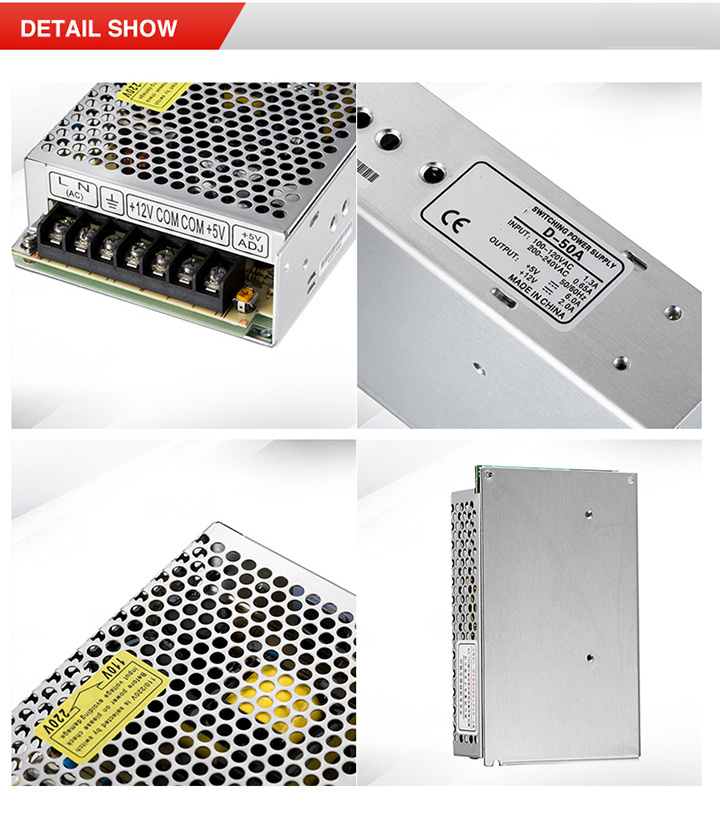

D-50W dual output cctv led switching power supply

MODEL		D-50A		D-50B		D-50C		D-50F
OUTPUT	DC VOLTAGE	5V	12V	5V	24V	12V	-12	12V	24V
	CURRENT RANGE	0 ~ 6A	0 ~ 2A	0 ~ 6A	0~ 1A	1 ~ 2A	0.3 ~ 2A	1 ~ 2A	0.2 ~ 1A
	RIPPLE & NOISE (max.)	50mVp-p	80mVp-p	50mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	CH1 : ±10%	CH2 : ±5%	CH1 : ±10%	CH2 : ±5%	CH1 : ±10%	CH1 : ±10%	CH1 : ±10%	CH1 : ±10%
	LINE REGULATION	0.50%	1.00%	0.50%	1.00%	1.00%	1.00%	1.00%	1.00%
	LOAD REGULATION	0.50%	4.00%	0.50%	1.00%	0.50%	0.50%	0.50%	0.80%
	SETUP, RISE TIME	200ms, 100ms, 30ms at full load
INPUT	VOLTAGE RANGE	90 ~ 132VAC / 180 ~ 264VAC selected by switch 240 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	73%		73%		73%		73%
	AC CURRENT (Typ.)	0.8A/115VAC 0.45A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 18A/115VAC 36A/230VAC
PROTECTION	OVER LOAD	105 ~ 150% rated output power
		Protection type : Fold back current limiting, recovers automatically after fault condition is removed.
ENVIRONMENT	WORKING TEMP.	-10 ~ +50oC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 ~ +85oC , 10 ~ 95% RH
	TEMP. COEFFICIENT	0.03%/oC (0 ~ 50oC )
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Design refer to FCC Part15 J Conduction
OTHERS	MTBF	417.6K hrs min. MIL-HDBK-217F (25 )
	DIMENSION	1599838mm (LWH)
	PACKING	0.55Kg; 343224CM/30PCS/16.5KG
