| Prod Model: |
D-60 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
CB |
| Brand: |
Funelec |

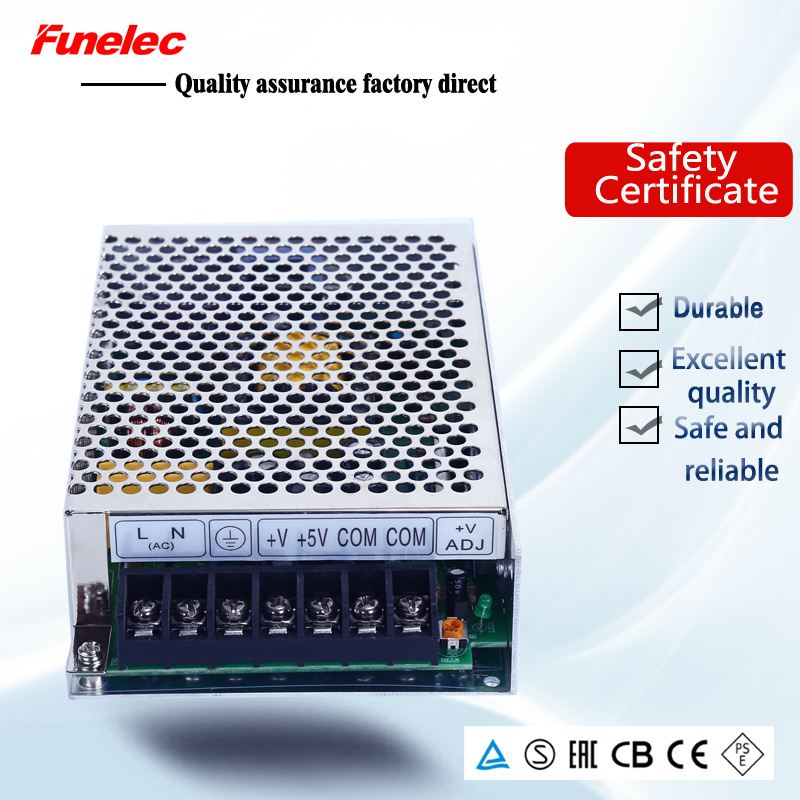

Product Description
Wenzhou Funelec Electric Co., Ltd. is a high-tech enterprise which is engaged in the design, development, production switching power series products. we are a professional manufacturer of power supplies ,all of our products have approved CE CB and ISO9001.
The EFC capacitors and our own transformers make our products have 3 years warranty,The payment terms which we accept L/C T/T westion union and paypal !
We get a good feedback from our customers ,what we want to do is make your business easy ,
We accept OEM and Sample order,MOQ IS 1PC .
Here take 30W for example !
| MODEL | D-60A | D-60B |
| OUTPIT | DC VOLTAGE | 5V | 12V | 5V | 24V |
| RATED CURRENT | 4A | 3A | 3A | 1.8A |
| CURRENT RANGE | 0.3 ~ 6A | 0.2 ~ 3A | 0.3 ~3A | 0.2 ~ 1.8A |
| RATED POWER | 56W | 58W |
| RIPPLE & NOISE (max.) Note.2 | 75mVp-p | 150mVp-p | 75mVp-p | 150mVp-p |
| VOLTAGE ADJ. RANGE | CH1 : 4.75 ~ 5.5V | CH1 : 4.75 ~ 5.5V |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±6.0% | ±2.0% | ±5.0% |
| LINE REGULATION | ±0.5% | ±1.0% | ±0.5% | ±0.5% |
| LOAD REGULATION | ±0.5% | ±4.0% | ±0.5% | ±4.0% |
| SETUP, RISE, HOLD TIME | 300ms, 50ms, 80ms / 230VAC 800ms, 50ms, 10ms / 115VAC at full load |
| INPUT | VOLTAGE RANGE | 85 ~ 132VAC 170 ~ 264VDC |
| FREQUENCY RANGE | 47 ~63Hz |
| EFFICIENCY(Typ.) | 73% 76% |
| AC CURRENT | 2A/115VAC 1A/230VAC |
| INRUSH CURRENT(max.) | COLD START 30A/115VAC 60A/230VAC |
| LEAKAGE CURRENT | <3.5mA/240VAC |
| PROTETION | OVER LOAD | 105 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. |
| OVER VOLTAGE | 5V : 5.75 ~ 6.75V |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60°C (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -20 ~ +85°C, 10 ~ 95% RH |
| TEMP. COEFFICIENT | +0.03%/°C (0 ~ 50°C) on +5V output |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| SAFETY & EMC (Note 4) | SAFETY STANDARDS | UL1012, UL60950, TUV EN60950Approved |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B |
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 |
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A |
| OTHERS | MTBF | 301.2K hrs min. MIL-HDBK-217F (25°C) |
| DIMENSION | 159*97*38mm (L*W*H) |
| PACKING | 0.54Kg; 24pcs/13.8Kg/0.75CUFT |
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. |
| 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 3.7uf parallel capacitor. |
| 3.Tolerance : includes set up tolerance, line regulation and load regulation. |
| 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
Packaging & Shipping:1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
3.Shipment port:SHANGHAI/NINGBO
4.By Air or by Sea for batch goods,Airport/ Port receiving;
5.Customers specifying freight forwarders or negotiable shipping methods!Our Services1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems activelyCompany Information
FAQ Q: If I'm interested in your SPD when I can receive your quotation and detail information after send the enquiry?A:All your enquiry will be replied in 24hours.Q:Your SPD seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!A: Our SPD are high quality customized.I think compare the quality first and then compare the price is the best way.Q:Can I get a sample before the order because I really don't how is the quality of your product?A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!Q:How's the delivery?Because I really need them is urgently?A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!

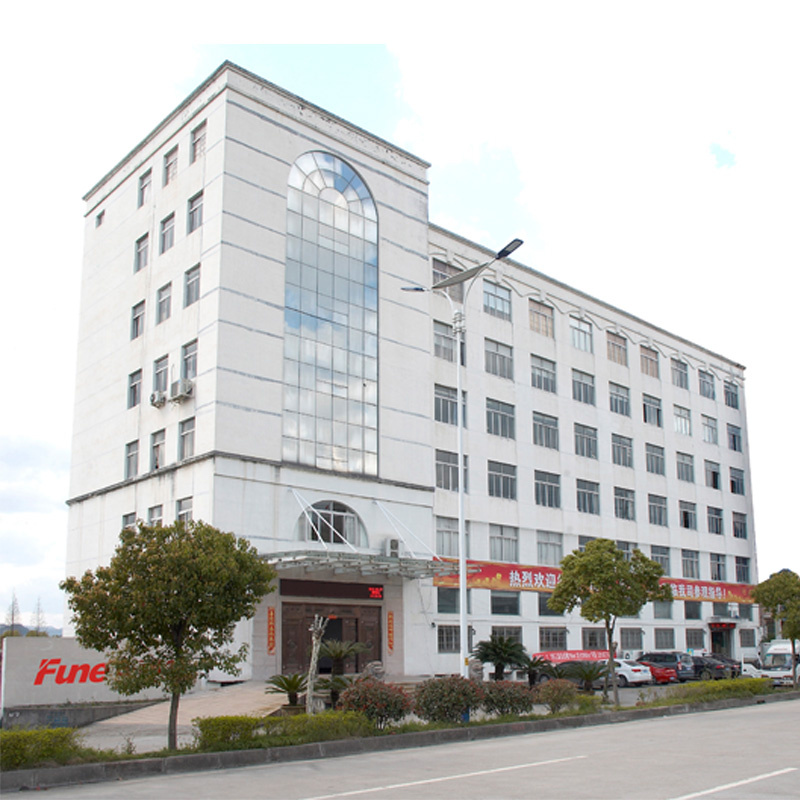

WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.
The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.
It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
