D F-02 Zone Valve/3 Way Motorized Valve/3 Port Motorised Valve/Spring Return Valve Used in Air Conditioning System, Heating&Cooling System D N15, D N20, D N25

Name: D F-02 Zone Valve/3 Way Motorized Valve/3 Port Motorised Valve/Spring Return Valve Used in Air Conditioning System, Heating&Cooling System D N15, D N20, D N25
Brand: all-electronics-online.com
SKU: 689338732
Availability: InStock
Rating: 4.8 (138 reviews)

D F-02 Zone Valve/3 Way Motorized Valve/3 Port Motorised Valve/Spring Return Valve Used in Air Conditioning System, Heating&Cooling System D N15, D N20, D N25

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DF-02-3 way
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	RoHS
Usage:	Air Conditioner System,Heating&Cooling System
Control Type:	Open-Close Control Valve
Material:	Brass

Product Description

HENGSEN company is Professional OEM manufacturer!
Jenny work in HENGSEN company!
You may send inquiry to Jenny for more products information or OEM details,Thanks!

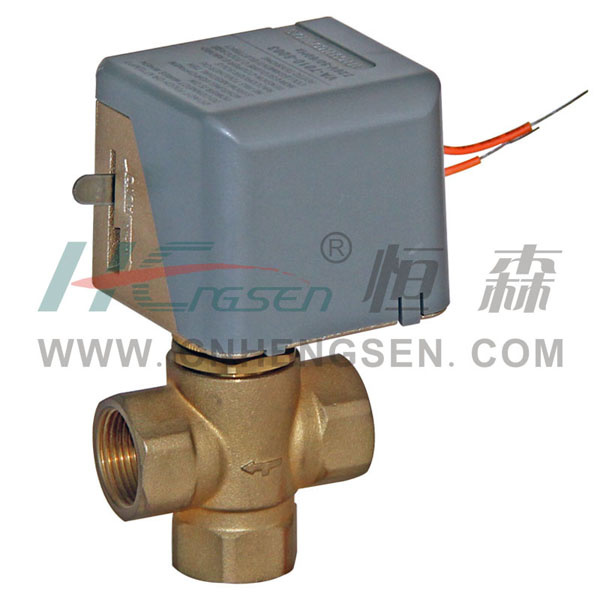

D F-02 Zone Valve/3 Way Motorized Valve/3 Port Motorised Valve/Spring Return Valve Used in Air Conditioning System, Heating&Cooling System.

The valve serie DF-02/F coupled to the actuator serie DF-02/Q suitable for applications in heating,cooling and air conditioning systems of domestic and commercial areas and is typically used on fan coil and air handling units.The actuator can be mounted after valve body has been installed onto the system.

Technical specifications valve DF-02/F
Medium: hot and chilled water,water with up to 50% glycol
Fluid temperature: +2~+94ºC
Nominal pressure:16 bar
Stroke:3.5mm
Leakage: Perfect sealing
Connection type:Female thread
Installation position: when installed horizontally or up to 85° from upright position(See figure on side).
Maintenance: Free
Valve body:Forged brass
Valve stem:Stainless steel 302
Sealing: NBR
Model:
DF-02/F-315: G1/2",DN15,3 ways,2.5KVs,Max.differential pressure 2.5 bar.
DF-02/F-320: G3/4",DN20,3 ways,3.5KVs,Max.differential pressure 2.5 bar.
DF-02/F-325: G1",DN25,3 ways,4.0KVs,Max.differential pressure 1.0 bar.

Technical specifications actuator DF-02/Q
Power Supply:230V AC,24V AC 50-60Hz
Power consumption: 7W
Control signal:On/Off,2 points,Spring return
Running time:Opening≤10s,Closing≤5s
Materials: Aluminium base.Cover:ABS self-extinguishing
Protection Degree:IP20
Protection Class:II
working range temperature:0...+60ºC
working range RH:5...95% RH,non-condensing

We are professional OEM manufacturer of HVAC Control Products, Refrigeration Parts&Tools, Brass fittings&Copper Fitting, Disperse pipe(refnet joint).

We founded in 1988 years and have 10 years ODM&OEM experiences.

We have 3 main series products.

(1)HVAC Control products:

-Motorized brass Ball Valve

-Motorized Zone Valve

-Electric Thermal Valve

-Brass Solenoid Valve(air, oil, water)

-Motorized Flange Iron ball valve

-Damper actuator

-Dynamic Pressure Balance Electric Regulating Valve

-Dynamic Balance Filter motorized ball valve

-Water Flow Brass Static Balance valve

-Electrical Control Auto compensation Plug valve

-Mechanical thermostat

-Digital thermostat

-Temperature sensor

-Liquid Flow Switch

-HVAC Brass Control Valve(with Actuator)

-HVAC Iron Control Valve(with Actuator)

(2)Refrigeration Parts&Tools:

-Double Manifold gauge sets-Single manifold set-Refrigeration Gauges

-Charging Hose-Quick Couplers-Sight Glass-Hand Valve

-Split Air Conditioning Valve-Refrigeration Ball Valve

-Refrigeration Solenoid Valve-Filling Valve-Can Tap Valve

-Needle Valve-capillary-Comb Slice-Cutting Knife

-Brass Nut-Brass tie-in

-Disperse pipe(refnet joint)

(3)Copper&Brass Pipe Fitting:

-copper Elbow-copper Tee-copper Straight coupling

-copper Reducing Coupling-copper U Bend-copper P-Trap

-Brass Solenoid Valve(water, oil, air)

-Brass Male&Female elbow

-Brass Male&Female Tee

-Brass Male&Female connector

If you are interesting in our products and service,

Please contact with us, Thanks.
