D F-03 Motorized Zone Valve/3 Way Motorised Valve/3 Port Diverter Valve/Spring Return Valve Used in Heating&Cooling System22, 28mm Compression

Name: D F-03 Motorized Zone Valve/3 Way Motorised Valve/3 Port Diverter Valve/Spring Return Valve Used in Heating&Cooling System22, 28mm Compression
Brand: all-electronics-online.com
SKU: 689350462
Availability: InStock
Rating: 4.9 (34 reviews)

D F-03 Motorized Zone Valve/3 Way Motorised Valve/3 Port Diverter Valve/Spring Return Valve Used in Heating&Cooling System22, 28mm Compression

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DF-03-3 port
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	RoHS
Type:	Temperature Controller
Usage:	Refrigerator
Control Type:	Open-Close Control Valve
Material:	Brass

Product Description

HENGSEN company is Professional OEM manufacturer!

Stone work in HENGSEN company!

You may send inquiry to Stone for more products information or OEM details,Thanks!

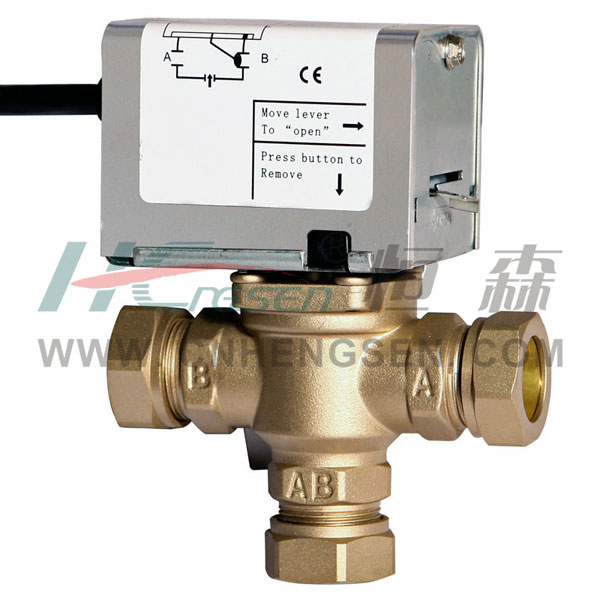

D F-03 Motorized Zone Valve/3 way Motorised Valve/3 Port Diverter Valve/Spring Return Valve Used in Heating&Cooling System22, 28mm Compression

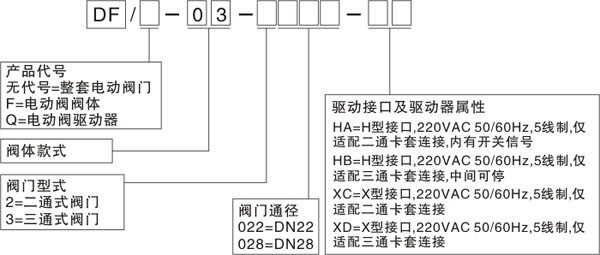

Model:

DF-03-3022:
3 port,22mm compression,Kvs4.6,
Port A max closed off pressusre 1.6Bar,Port B max closed off pressusre 1.2Bar

DF-03-3028:
3 port,28mm compression,Kvs6.8
Port A max closed off pressusre 1.2Bar,Port B max closed off pressusre 0.8Bar

Actuator:
Motor supply voltage: 230V
Rated impulse voltage:2500V
Power consumption 5W
Impedance protected motor
Auxiliary switch rating 3 Amp
Max ambient temperature: 50ºC
Protection rating:IP20

Valve:
Max static pressure: 21Bar
Max operating pressure: 21Bar
Perm.operating temperature: 2...88ºC

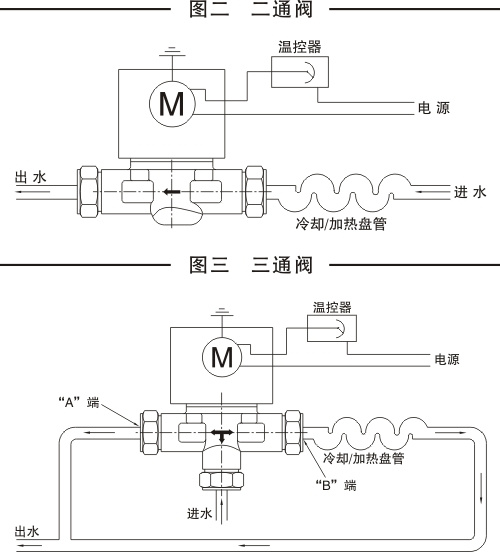

Actuator operation:
230V power to open-Spring return to close.
This is not a fail safe,a no fail or a safety product.
Type of action is multi position.Type of movement is rotary.
Manual Override: Valve may be manually opened for filling or draining the system.
In normal operation,the lever must be in the auto position.
if the mains power is disconnected,the valve will automatically spring return to the closed position(Port A)
