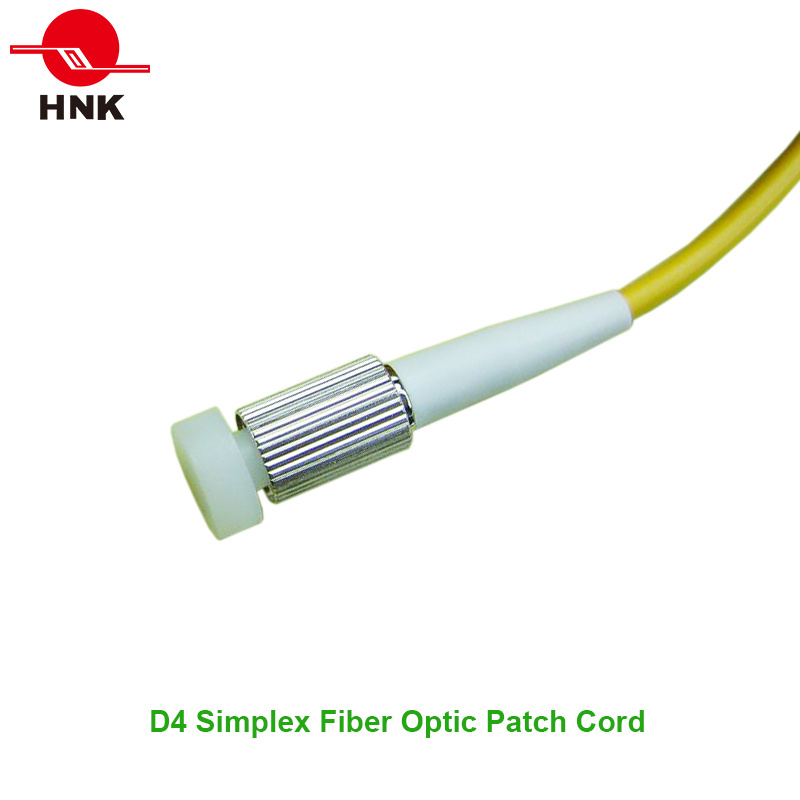

D4 Fiber Optic Patch Cord

Name: D4 Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 681946285
Availability: InStock
Rating: 4.9 (76 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D4 patch cord
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	According to Requirement
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	D4
Sheath Material:	LSZH, PVC

Product Description

Fiber Optic Patch Cord is an optical cable, used to connect optical device to another for signal routing. Each end of the cable is attached to a connector, so the cord may be plugged in. Pigtail is a cable with one connector. Types of connectors may vary widely, FC, SC, ST, and etc.
High performance optical pigtails &patch cords are a defining factor in ensuring any network performs to the highest level. HNK offers an extensive range of optical pigtails for use in FTTX, telecommunications, data communications and CATV applications.
Pigtails & patch cords can be supplied in a variety of lengths, colors and with a variety of different connector types. Different fiber types and cable diameters are also available on request.

Features:
Meet IEC, JIS, Bellcore GR-326 performance requirements
Guaranteed quality.100% tested and inspected
Cable type: Indoor fiber 9/125um,50/125um,62.5/125um,OM3,OM4 with PVC or LSZH sheath. Simplex or Duplex, Cable diameter: 3.0mm,2.0mm and 0.9mm. Available in custom lengths
RoHs compliant.
Application:
Telecommunication networks
CATV & LAN
Date networks
Passive Optical Networks

Item	Unit	SM			MM
Item	Unit	PC	UPC	APC	PC
Insertion loss	dB	≤0.20
Max. Insertion loss	dB	≤0.30
Repeatability	dB	≤0.10
Changeability	dB	≤0.20
Return loss	dB	≥45	≥50	≥60	≥35
Operation Temperature	C	-40~+85
Storage temperature	C	-40~+85
Fiber type	um	9/125			50/125,62.5/125,OM3,OM4
Core number		Single or dual fiber,4,6,8,12,24 cores
Durability		>1000times

Shenzhen HNK Optics Co., Ltd. (hereinafter referred to as "HNK") is a leading professional Fiber Optic and Data connectivity solution supplier and exporter from China. We focus on producing Fiber Optic Equipment, passive components and assemblies to the customer worldwide. With over 10 years experiences in massive production of Fiber Optic product the reliable stabilities of its high quality and excellent performance of its products. HNK has been continually growing and expanding the product lines to keep up the pace of industry trends.

HNK' S ISO9001 certified factory in Shenzhen, China, which occupy over 2000 square meters, with over 100 experienced workers, and 10 technical staffs, with advanced test equipment and facility. All HNK products are 100% visually and optically tested and are fully traceable through our ISO9001: 2008 certified quality system, also meet the standards of organizations such as Telcordia-326-CORE, ANSI/TIA/EIA, ISO/IEC 11801 and IEEE.

HNK' S knowledgeable sales, strong R&D team are dedicated to understanding your requirements and designing products & solutions to meet your needs.

HNK obtains the good reputations all these years from customer worldwide, for short lead time, fast and on-time delivery, excellent products quality, competitive price and good services.
