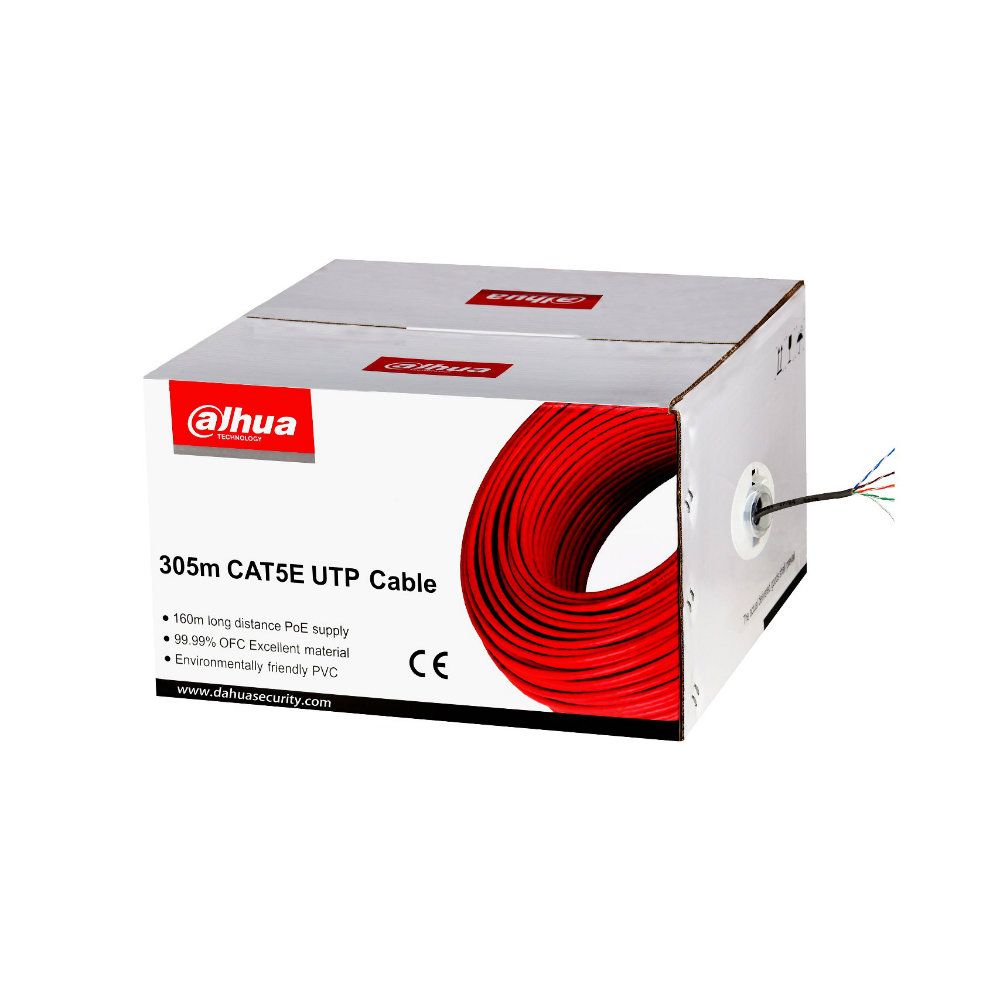

Dahua Camera Network Cable 305m UTP Cat5e Cable (PFM920I-5EUN)

Dahua Camera Network Cable 305m UTP Cat5e Cable (PFM920I-5EUN)
Price: US $ 10-54/Piece
Min Order: 5/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: PFM920I-5EUN
Conductor: OFC(Oxygen Free Copper)
Insulation: HDPE
Length: 305m (1000.66FT)
Min. Insulation Resistance: 5.6NF/100m
Type: Insulated
Conductor Type: Solid
Application: Overhead
Certification: CCC
Conductor Material: OFC(Oxygen Free Copper)
Insulation Material: HDPE
Brand: Neutral

Product Description


Specifications:
>305m UTP CAT5E
>Max.160m long distance PoE supply
>99.99% OFC(oxygen free copper) Excellent material
>Environmentally friendly PVC

Features:
ModelDH-PFM920I-5EUN
ConductorMaterialOFC(oxygen free copper)
Composition1/0.45
Wire gauge0.45*4P0.005mm
InsulationMaterialHDPE
Min. average thickness0.2mm
Diameter0.83mm0.03mm
Color(4 Pairs)Orange, white/orange; green, white/green;
blue, white/blue; brown, white/brown
Lay of twisted conductors140mm
JacketMaterialPVC
Min. average thickness0.5mm0.05mm
Diameter4.7mm
ColorOrange
Length305m (1000.66ft)
Max. DC resistance of single conductor12 /100m
Max. unbalance rate of line pairs' direct current resistance12%
Min. insulation resistance5000M·km
Max. mutual capacitance5.6NF/100m
Max. attenuation22(dB/100m, 100MHz)
GeneralN.W.7.8kg
Packaging dimension360mmx360mmx220mm
Weight (with packaging)8.6kg
