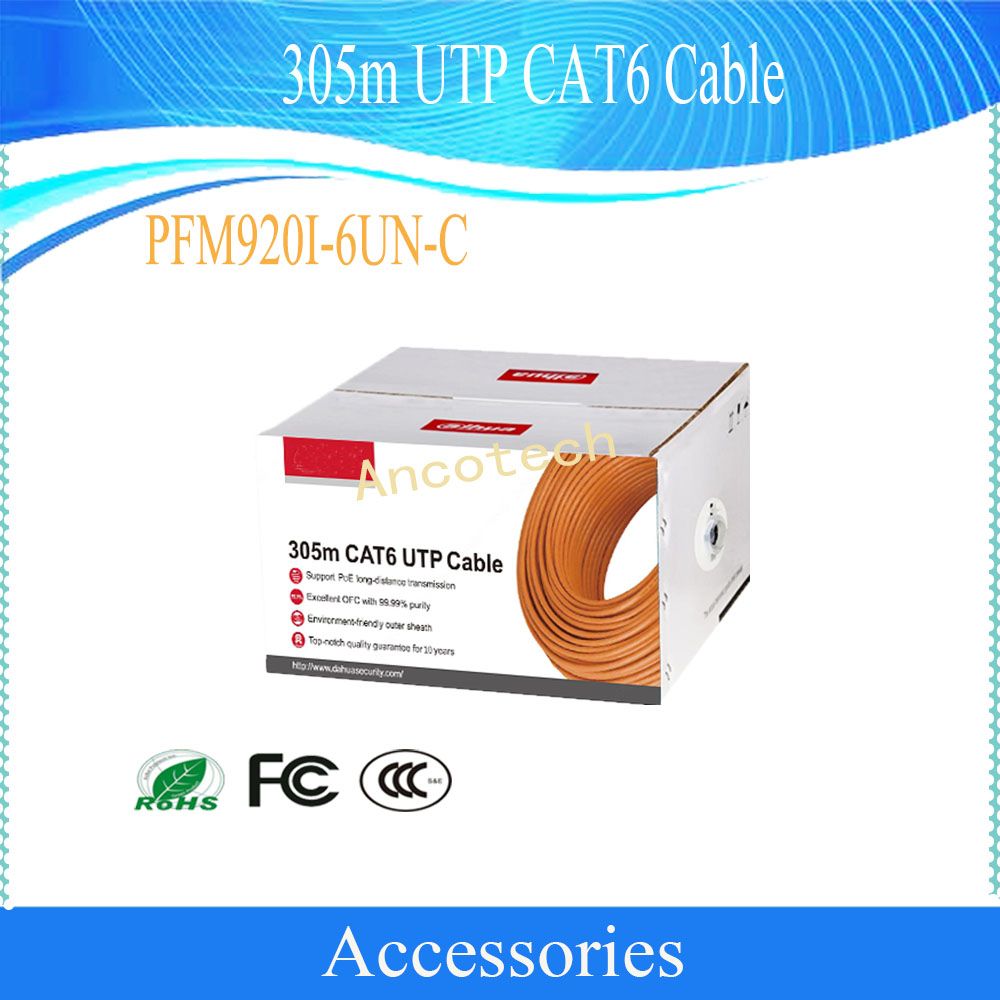

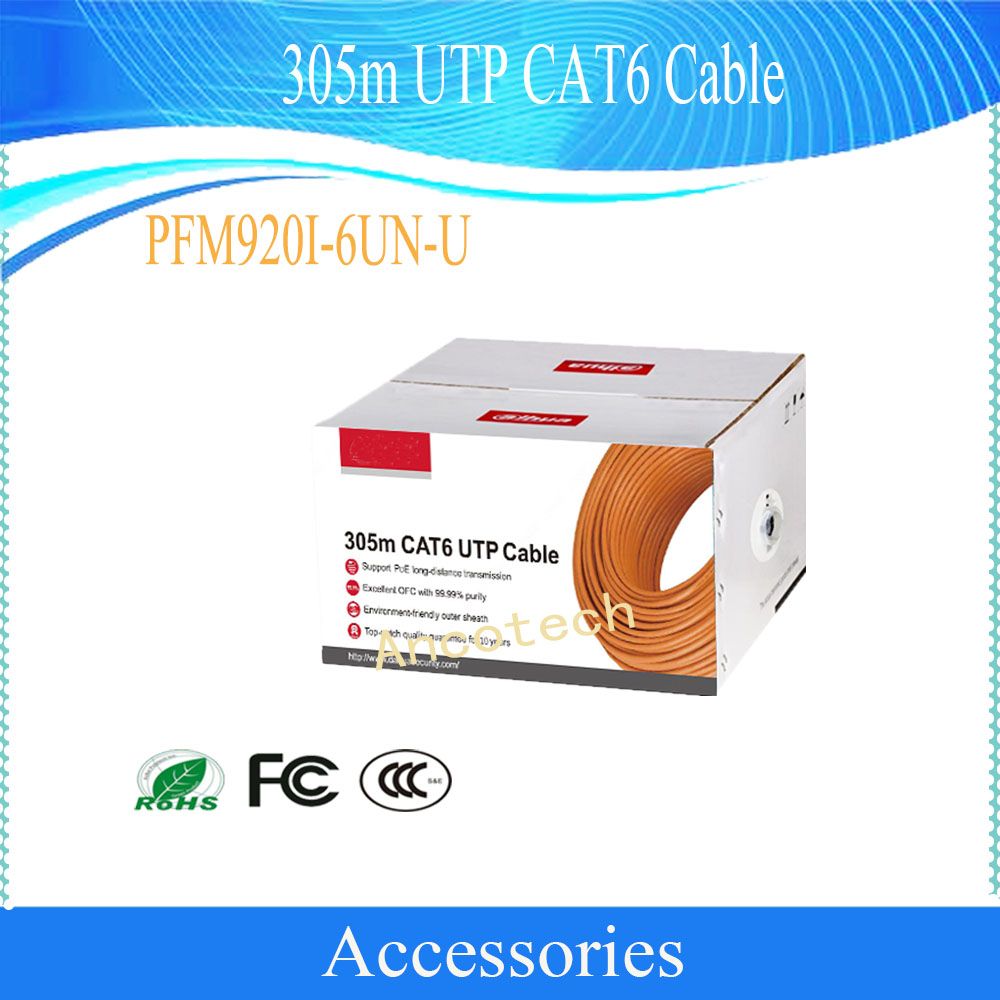

Dahua Security Accessories 305m UTP CAT6 Cable (PFM920I-6UN-C/U)

Name: Dahua Security Accessories 305m UTP CAT6 Cable (PFM920I-6UN-C/U)
Brand: all-electronics-online.com
SKU: 732906852
Availability: InStock
Rating: 4.4 (31 reviews)

Price:	US $ 10-87/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PFM920I-6UN-C/U
Conductor:	OFC(Oxygen Free Copper)
Insulation:	HDPE
Length:	305m (1000.66FT)
Type:	Insulated
Conductor Type:	Solid
Application:	Overhead
Certification:	CCC
Conductor Material:	OFC(Oxygen Free Copper)
Insulation Material:	HDPE
Brand:	Neutral

Product Description

Features:

>305m UTP CAT6;
>Support PoE long-distance transmission;
>Excellent OFC with 99.99% OFC(oxygen free copper) purity;
>Environmentally-friendly outer sheath, meet the CPR E/ UL CM class;
>Top-notch quality guarantee for 10 years.

Specifications:

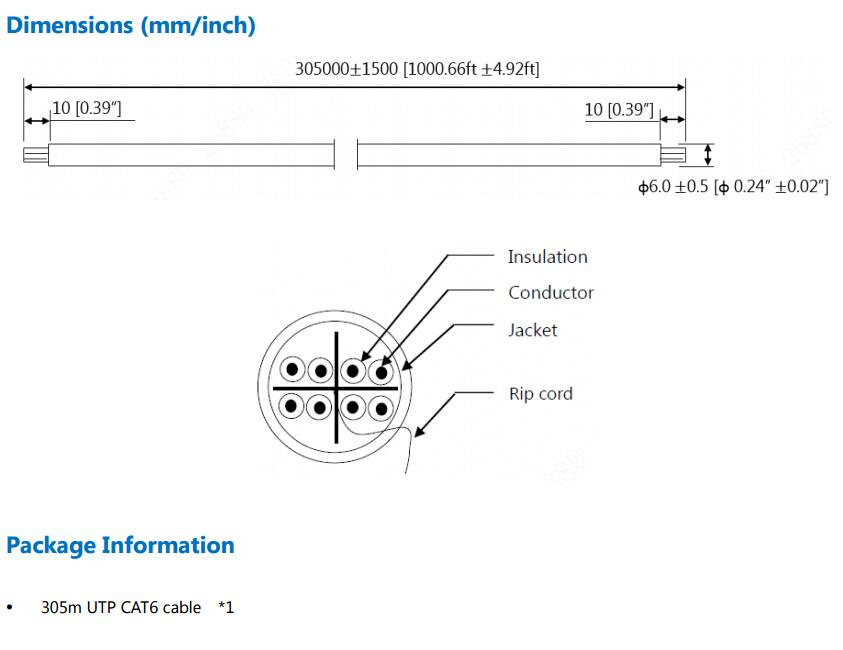

Model		DH-PFM920I-6UN-C	DH-PFM920I-6UN-U
Structure
Conductor	Material	OFC(oxygen free copper)
	Structure	4P*0.53±0.01mm
Insulation	Material	HDPE
	Min. average thickness	0.21mm
	Diameter	0.95mm0.05mm
	Color(4 Pairs)	Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown
Rip cord		Yes
Jacket	Material	PVC, meet the requirement of CPR E class	PVC, meet the requirement of UL CM class
	Min. average thickness	0.40mm
	Diameter	6.0±0.50mm
	surface	Smooth, full and tight
	Color	Orange and white are optional
General	Length	305m(1000.66ft)
	N.W.	11.25kg(24.8lb)
	Packaging dimension	412mmx412mmx215mm(16.22"x16.22"x8.46")
	Weight (with packaging)	12.75kg(28.11lb)
Mechanical properties
Insulation	Tensile strength	≥16MPa
	Elongation at break	≥300%
	Peeling property	No damage to insulation or conductor
Jacket	Tensile strength	Before aging: ≥13.5MPa After aging: ≥12.5MPa	Before aging: ≥13.5MPa Retention rate of tensile strength after aging: ≥85%
	Elongation at break	Before aging: ≥150% After aging: ≥125%	Before aging: ≥150% Retention rate of elongation at break after aging: ≥50%
	Aging condition	100ºC24h7d
	Peeling property	No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking.	No damage to insulation, cold bending (-15C *4h), the outer diameter of the cable is 8 times, without cracking.
Electrical performance (20ºC)
Characteristic impedance (1-250MHz)		100±15Ω
DC resistance		≤9.38Ω/100m
Max. unbalance rate of line pairs' direct current		≤5%
Time delay		≤45ns/100m
Max. mutual capacitance		5.6nF/100m
Min. insulation resistance		5000M·km
