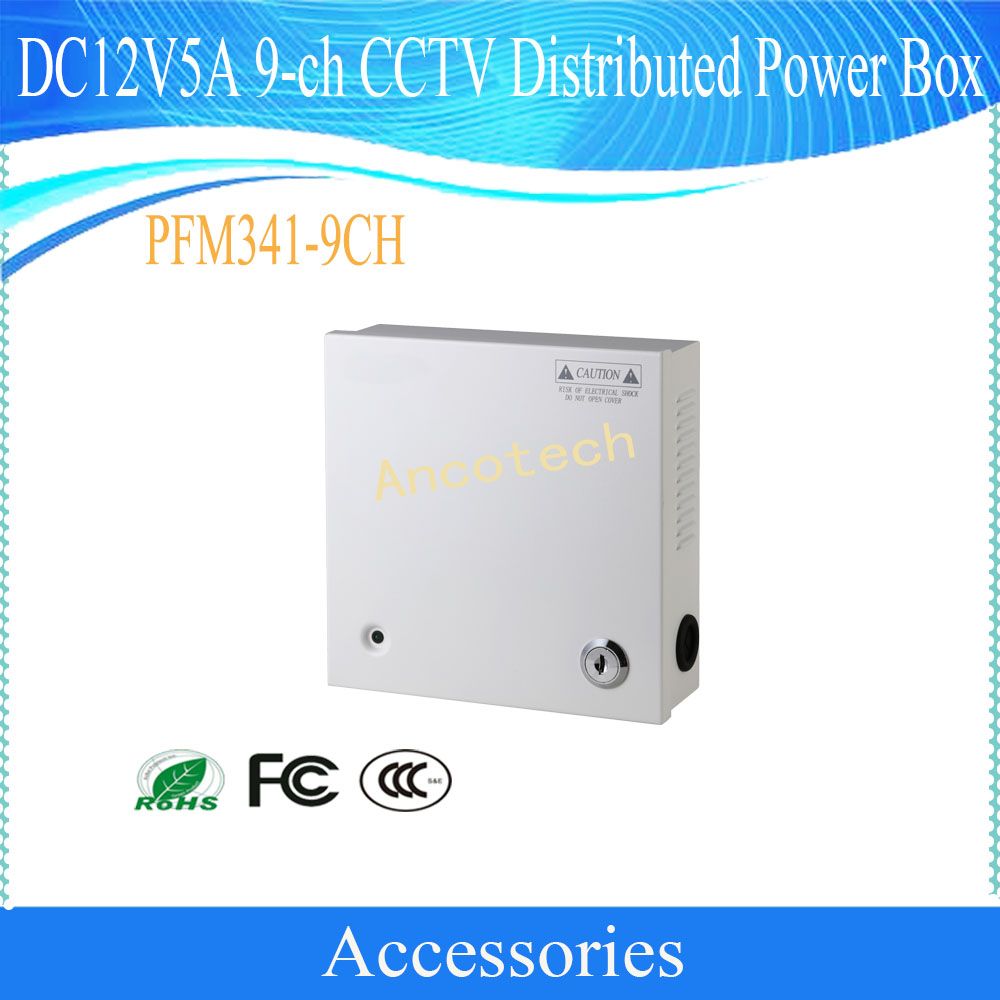

Dahua Security Accessories DC12V5a 9-CH CCTV Distributed Power Box (PFM341-9CH)

Name: Dahua Security Accessories DC12V5a 9-CH CCTV Distributed Power Box (PFM341-9CH)
Brand: all-electronics-online.com
SKU: 732900682
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	US $ 5-29/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PFM341-9CH
Maximum Output:	5A
Operating Temperature:	-20ºC~+45ºC(-4ºF~+113ºF)
Surge Protected:	Line to Ground: 4000V Line to Line: 2000V
No Load Power Consumption:	<0.5W
Output Type:	DC
Usage:	Security Camera Power Supply
Certification:	Ce, FCC
Brand:	Dahua

Product Description

Features:
>9 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access.
>Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation.
>High quality and reliability: pass 100% quality examination and 3 months high temperature aging test.
>With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability.
>Professional wall-mounted installation with reserved outlet holes, convenient and flexible.

Specifications:

Model	DH-PFM341-9CH
General
Input voltage range	AC90~264V
Outputs	9 x 12VDC (-3%~+7%) Outputs
Maximum output	5 A
Output protection	9 replacement fuses, max. per output 2.5A
Efficiency	84%
No load power consumption	<0.5W
Surge protected	Line to ground: 4000V Line to line: 2000V
ESD	Contact discharge: 6000V Air discharge: 8000V
Internal ON/OFF power switch	Yes
Individual LED output indicator	Yes

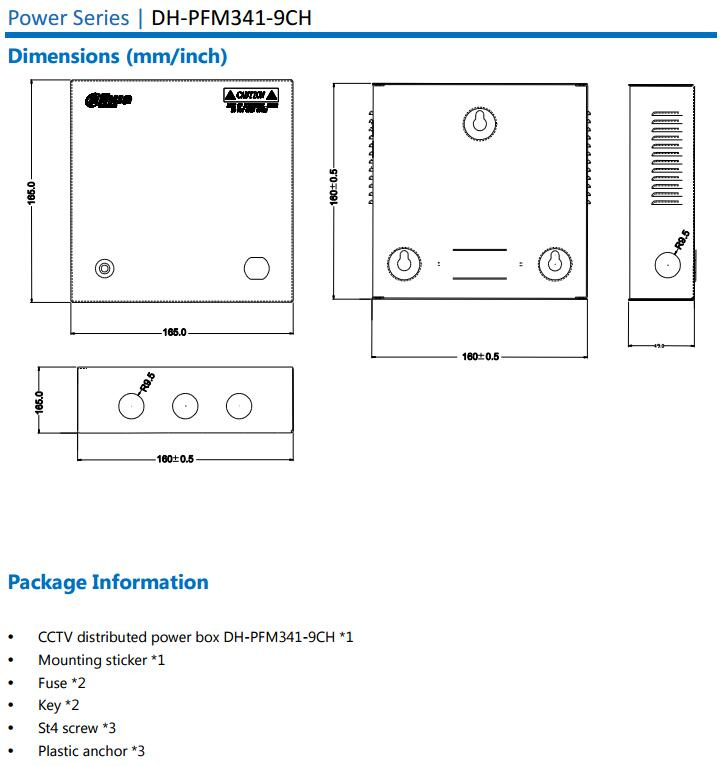

Dimension	165mmx165mmx50mm(6.5"x6.5"x1.97")
Weight	0.9kg(1.98lb)
Color	White
Installation mode	Wall-mounted
Operating temperature	-20ºC~+45ºC(-4ºF~+113ºF)
Operating humidity	<90% RH
Certification	CE/FCC
