Dasn248 Three Phase CT 3 in 1 Current Transformers Busbar Type 3 Phase Combined Cts

Name: Dasn248 Three Phase CT 3 in 1 Current Transformers Busbar Type 3 Phase Combined Cts
Brand: all-electronics-online.com
SKU: 816837725
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	US $ 1-20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DASN248
Window Size:	3@31*31mm
Class:	0.5,1.0,3.0
Input:	250-630A
Output:	1A,5A
Burden:	2.5va
Application:	Instrument
Type:	Current Transformer
Phase:	Three

Product Description

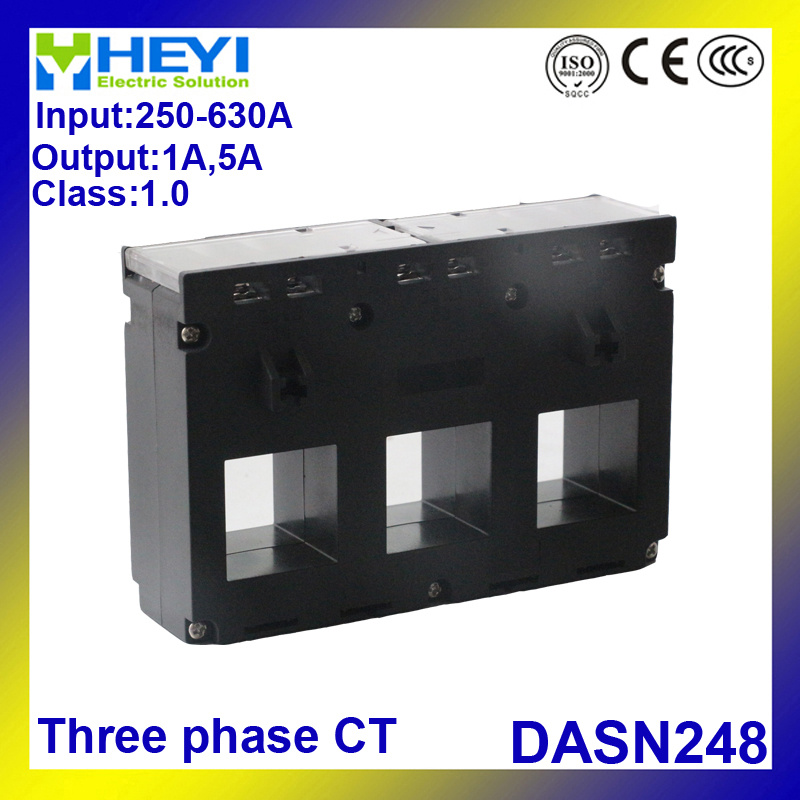

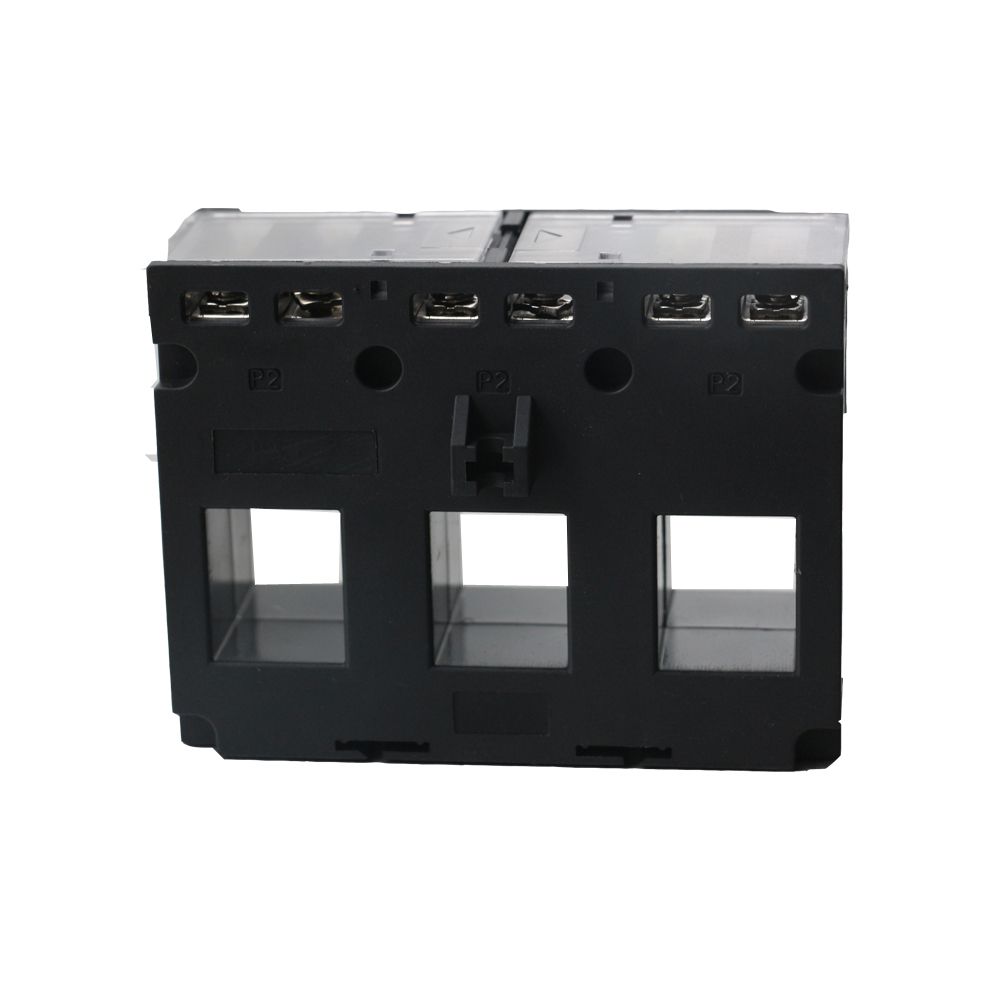

DASN248 three phase CT 3 IN 1 current transformers Busbar type 3 phase combined Cts

DASN248 range of current transformers are combination designed 3 CT in 1, save more space comparing general unit CT,

suitable for primarycurrent 75A to 600A, supporting the use of molded case circuit breaker according to

the rated current size.

Features:

1:Three built in fixing methods: Panel/Din Rail/Busbar

2:Built in hinged terminal cover
3:Perfect matching with MCCB, save more space

4:Primary current from 30A to 600A

Applications:

1: Current measurement, monitoring and protection for electrical wiring and equipment.

2: Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.

3: Current, power and energy monitoring device.
4: Relay protection device.

Technical Parameters

Rated Frequency					50/60Hz
Withstand voltage					AC3kV(1min)
Rated thermal current					60ln
Dynamic stability current					2.5lth
Rated voltage					AC0.72KV
Burden					1.2ln
Operating temperature range					-10°C-50°C
Prevent combustion level					V0
Accuracy limit class					FS5
Secondary current					5A,1A

Technical

Picture	Type	Current ratio	Burden	Packing for carton
			Accuracy class:1.0
	DASN248	250/5	2.5	20
		300/5	3.75	20
		400/5	3.75	20
		500/5	3.75	20
		600/5	3.75	20
		630/5	3.75	20

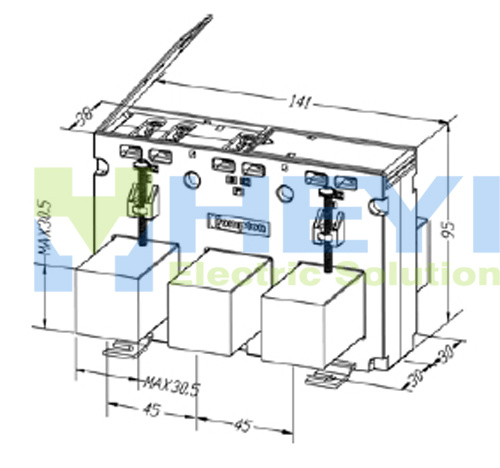

Dimension

STANDARD:

IEC6044-1, EN60044-1, VDE0414-44-1, GB1208-2006

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
