Daytai Long Distance 2-36 Core ADSS Fiber Optic Cable
| Price: |
US $ 38-69/Roll |
| Min Order: |
1/Roll |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DT-ADSSFOC |
| Quality Certification: |
ISO 9001, SGS, Ce, etc |
| Description: |
ADSS Fiber Optic Cable |
| Fiber Cores: |
2-36 Core |
| Year Average: |
1.88-11.25 |
| Diameter (mm): |
11.9-14.1 |
| Cable Weight: |
115-159 Kg/Km |
| Operating Temperature: |
-40~+60 |
| Wiring Devices: |
None |
| Condition: |
New |
| Type: |
Cable |
| Certification: |
GS, CE, ISO |
Product Description
DAYTAI Long Distance 2-36 Core ADSS Fiber Optic Cable

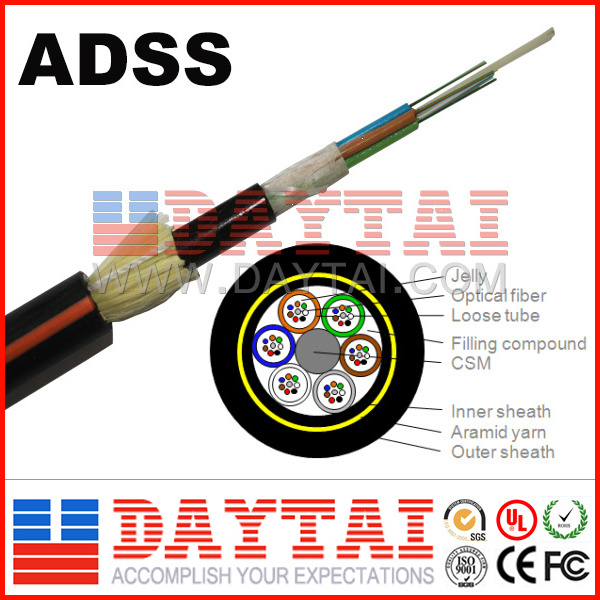

DescriptionADSS Optical Cable,This optical cable uses 6 loose tubes(or partial gasket for packing) to wind aroundthe FRP and become the a complete round cable core, which is stranded ofcertain number of Kevlar with potentiation after being covered with PE internalsheath.
Finally, the PE external sheath will be squeezed. The loose tube ismade of the materials with great temperature properties. Several single mode or multi mode optical fiber (2-8 core) of a proper extra length and the oil jellyused for moistureproof optical fiber are put into the tube. The slits of the cable core are fulfilled with water-blocking compound.
Features
1. It is applicable for the transmissionwavelength 1310mm and 1550mm.
2.The biggest advantage of ADSS optical cable is that the cable doesn't need the suspenderby taking the advantage of the existing pole.
3. It is applicable for the different span form 50-1000M, it mainly uses Kevlar asthe strengthening device, has good tensile strength, bullet-proof performanceand good performance in high and low temperature.
4.The cable design and experiment can comply with the IEEEP1222.
Specification
Max. allowable working tension | Break strength | Year average working tension | Weight (Kg/Km) | Diameter (mm) | Operation temperature (ºC) |
PE sheath | AT sheath |
3.0 | 7.5 | 1.88 | 115 | 123 | 11.9 | -40~+60 |
4.0 | 10.0 | 2.5 | 118 | 127 | 12.1 | -40~+60 |
5.0 | 12.5 | 3.13 | 120 | 130 | 12.2 | -40~+60 |
6.0 | 15.0 | 3.75 | 123 | 132 | 12.3 | -40~+60 |
7.0 | 17.5 | 4.38 | 126 | 135 | 12.5 | -40~+60 |
8.0 | 20.0 | 5.0 | 128 | 137 | 12.6 | -40~+60 |
9.0 | 22.5 | 5.63 | 131 | 140 | 12.7 | -40~+60 |
10.0 | 25.0 | 6.25 | 134 | 143 | 12.9 | -40~+60 |
11.0 | 27.5 | 6.88 | 136 | 145 | 13.0 | -40~+60 |
12.0 | 30.0 | 7.5 | 138 | 148 | 13.1 | -40~+60 |
13.0 | 32.5 | 8.13 | 142 | 151 | 13.3 | -40~+60 |
14.0 | 35.0 | 8.75 | 144 | 154 | 13.4 | -40~+60 |
15.0 | 37.5 | 9.38 | 146 | 156 | 13.5 | -40~+60 |
16.0 | 40.0 | 10.0 | 149 | 159 | 13.6 | -40~+60 |
18.0 | 42.5 | 10.63 | 154 | 164 | 13.8 | -40~+60 |
20.0 | 45.0 | 11.25 | 159 | 169 | 14.1 | -40~+60 |
Remark: 1. Only a part of ADSS cables are listin the table, 2~36 fiber in the ADSS optical cable;
2. DAYTAI Will design the cable depending on the request of climate, span, voltage degree for customer.
